Responsible: Oliver Juling
Date: 6.09.2020
1
On / Off key
2
Programme Selection P
3
F1 & F2 (Function Key 1/2)
4
F1 Function Led
5
F2 Function Led
6
Programme Number
7
Salt Indicator
8
Rinse Aid Indicator
9
Auto Door Opening Indicator
1
E5 Key combinations
2 + 18
Setting Menu (available in ON mode)
1 + 2
Service Menu (available in OFF mode)
1.1
Settings Menu
As described in the user manual this menu is designed for customer preferences settings:
When the dishwasher is in program selection mode; Press [P] and [Delay] keys about 3sec to
enter the settings menu.
• Press [P] key to navigate in Settings menu and display current settings.
• Press [Delay] key to change settings
• Press [On/Off ] key to exit from the menu.
TECHNICAL INFORMATION
SUPPORT
Phone:
0209 401-718
Fax:
0209 401-743

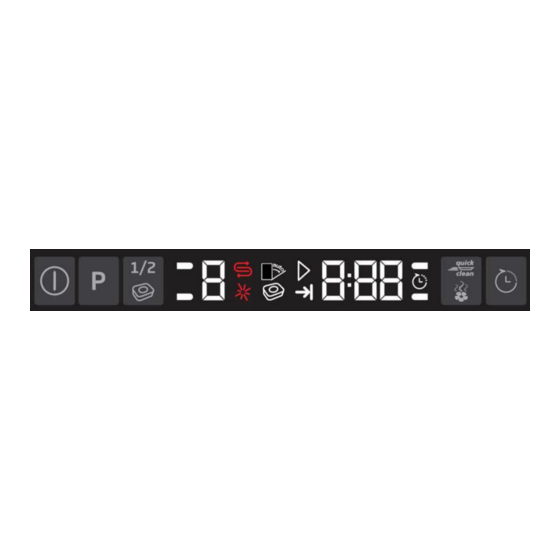

E5 Control Unit
10
11
12
13
14
15
16
17
18
Tablet Detergent Indicator
Play Icon
End of Programme Icon
Remaining Time / Prog. Duration
F3 Function Led
Time Delay Icon
F4 Function Led
F3 & F4 (Function Key 3/4)
Time Delay Key
T7-94-01
EN
Internal use only
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Kuppersbusch E5
Summary of Contents for Kuppersbusch E5
- Page 1 SUPPORT Responsible: Oliver Juling Phone: 0209 401-718 Date: 6.09.2020 Fax: 0209 401-743 E5 Control Unit On / Off key Tablet Detergent Indicator Programme Selection P Play Icon F1 & F2 (Function Key 1/2) End of Programme Icon F1 Function Led Remaining Time / Prog.
- Page 2 T7-94-01 Page 2 1.1.1 Internal light (if available) Will be available in settings menu if the dishwasher has inner light feature. L:0 Internal light always off . L:1 Internal light will be on for 2min. after opening the door 1.1.2 Microfilter cleaning (if available) Will be available in settings menu if the dishwasher has fi...
- Page 3 T7-94-01 Page 3 1.1.4 Auto Tablet detection (if available) Will be available in settings menu if the dishwasher has Auto tablet detection feature. a:0 Auto tablet detection feature is disabled a:1 Auto tablet feature is enabled to make automatic tablet detergent detection during the washing cycle 1.1.5 Regeneration level...
- Page 4 T7-94-01 Page 2 Service Menu This menu is designed for service professionals and include diagnostic programs when the dishwasher is in OFF mode. • Press [P] and [On/Off ] keys about 3sec to enter the settings menu. • Press [P] key to navigate in service menu. •...
- Page 5 T7-94-01 Page 3 Errors and Troubleshooting E5 Dishwashers are electronically controlled and some faulty conditions can be detected by the electronics. These errors are detected not only in the functional test program but also during the washing cycles. The previously detected errors are kept in memory and shown in display.
- Page 6 T7-94-01 Page 2 Troubleshooting 2.2.1 Overflow [Er:01] If the control system senses an overfl ow signal, this error will occurs. Control unit drains the water inside and checks the signal; • If there is no overfl ow signal, dishwasher will continue to work normally. •...
- Page 7 T7-94-01 Page 3 2.2.3 Heater fault [Er:03] The water temperature in the machine is measured by an NTC (negative temperature coeffi cient). At heating steps, if the temperature rise is less than 1 °C within 3 minutes heating fault occurs. When the fault detected software skips the heating step and continues the program with the next step.
- Page 8 T7-94-01 Page 2 2.2.6 NTC fault [Er:06] At the heating step, if NTC resistance is measured beyond the specifi ed resistance values or if the NTC resistance is measured as open/short circuit NTC fault occurs. When the fault is detected software skips the heating step and continues the program with the next step.
