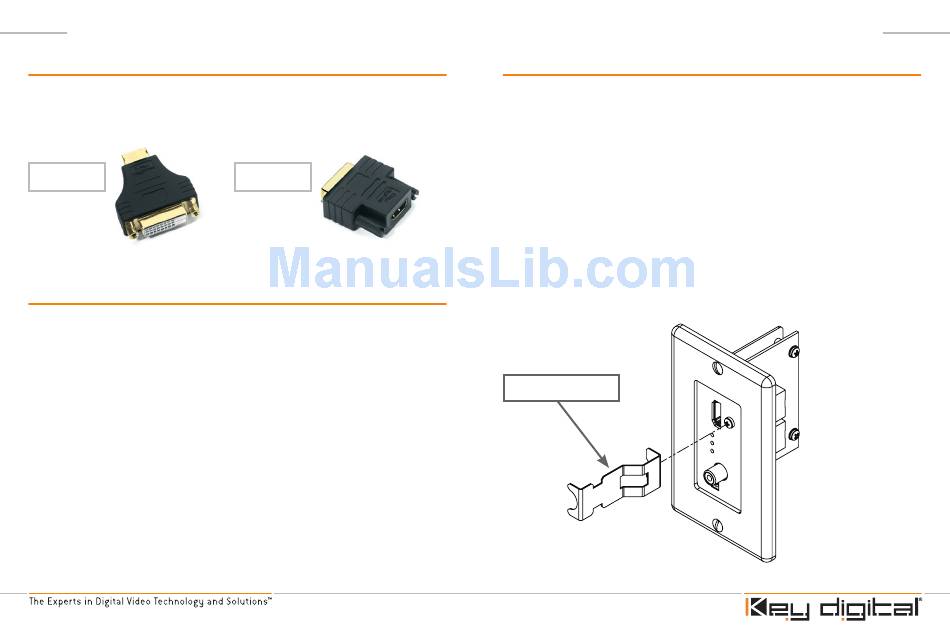

DVI applications for the KD-HDMIWPTX

The KD-HDMIWPTX can also be used to extend DVI video cable runs. For these
applications, use DVI to HDMI (Key Digital model number KD-MFHDMI) adapters to feed
the HDMI input of the KD-HDMIWPTX.
KD-FMHDMI

Mounting the KD-HDMIWPTX unit

Before permanently securing the unit or final installation of cabling
➔
behind walls or ceilings, test for proper operation of the unit and the
cables in your system.
The wall plate can be mounted in a standard electrical box.
Remove the white, plastic face plate on the KD-HDMIWPTX
1.
2. Connect CAT5 cables to the appropriate CAT5 ports on the back of the KD-
HDMIWPTX.
3. Secure the KD-HDMIWPTX metal bracket to the electrical box using the screws
supplied with the electrical box.
4. Re-install the plastic face plate on the front of the KD-HDMIWPTX
5. Secure the metal cable tie bracket to the face plate using the supplied screw. This
bracket provides a method for securing HDMI cables to the wall plate with a single
cable tie.
KD-MFHDMI

Troubleshooting

Most issues with the KD-HDMIWPTX setup will involve resolution and distance
performance. If you experience problems (no image, video artifacts, picture dropout,
noise) here are a few things to try.
1. Use the shortest possible HDMI and CAT5 cables between devices.
Lower the output resolution of the image source.
2.
3. Use the provided power supply for the KD-HDMIWPTX instead of relying on the
voltage in the HDMI cable to power the unit.
Use Key Digital HDMI cables.
4. ®
Other possible problems can result from custom made CAT5 cables. CAT5 cables must
be terminated in accordance with TIA/EIA-568-A or TIA/EIA-568-B pin-pair assignments.
HDMI Cable tie bracket
