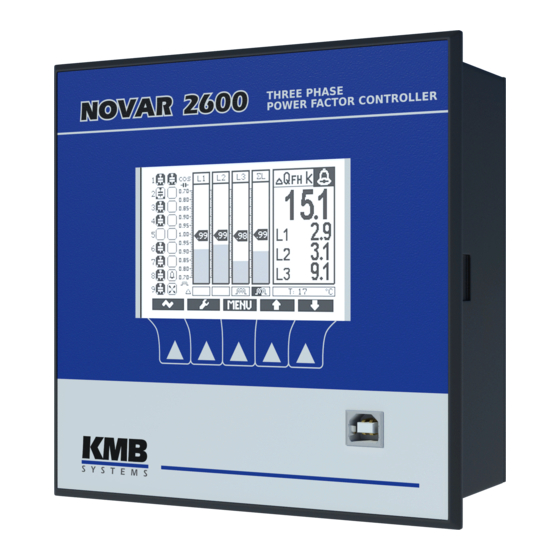

KMB NOVAR 2600 Operating Manual

Three-phase power factor controllers & power analyzers
Hide thumbs Also See for NOVAR 2600:
Table of Contents

Advertisement

Quick Links

Download this manual
KMB systems, s.r.o.
Dr. M. Horákové 559, 460 06 Liberec 7, Czech Republic
tel. +420 485 130 314, fax +420 482 736 896
email : kmb@kmb.cz, internet : www.kmb.cz
NOVAR 2600
Three-Phase Power Factor Controllers
& Power Analyzers
Operating Manual
Document
Release
Valid for versions
revision
date
hardware
bootloader
firmware
ENVIS
1.3
15.6.2020
2.6
4.0
3.0.33
1.8
