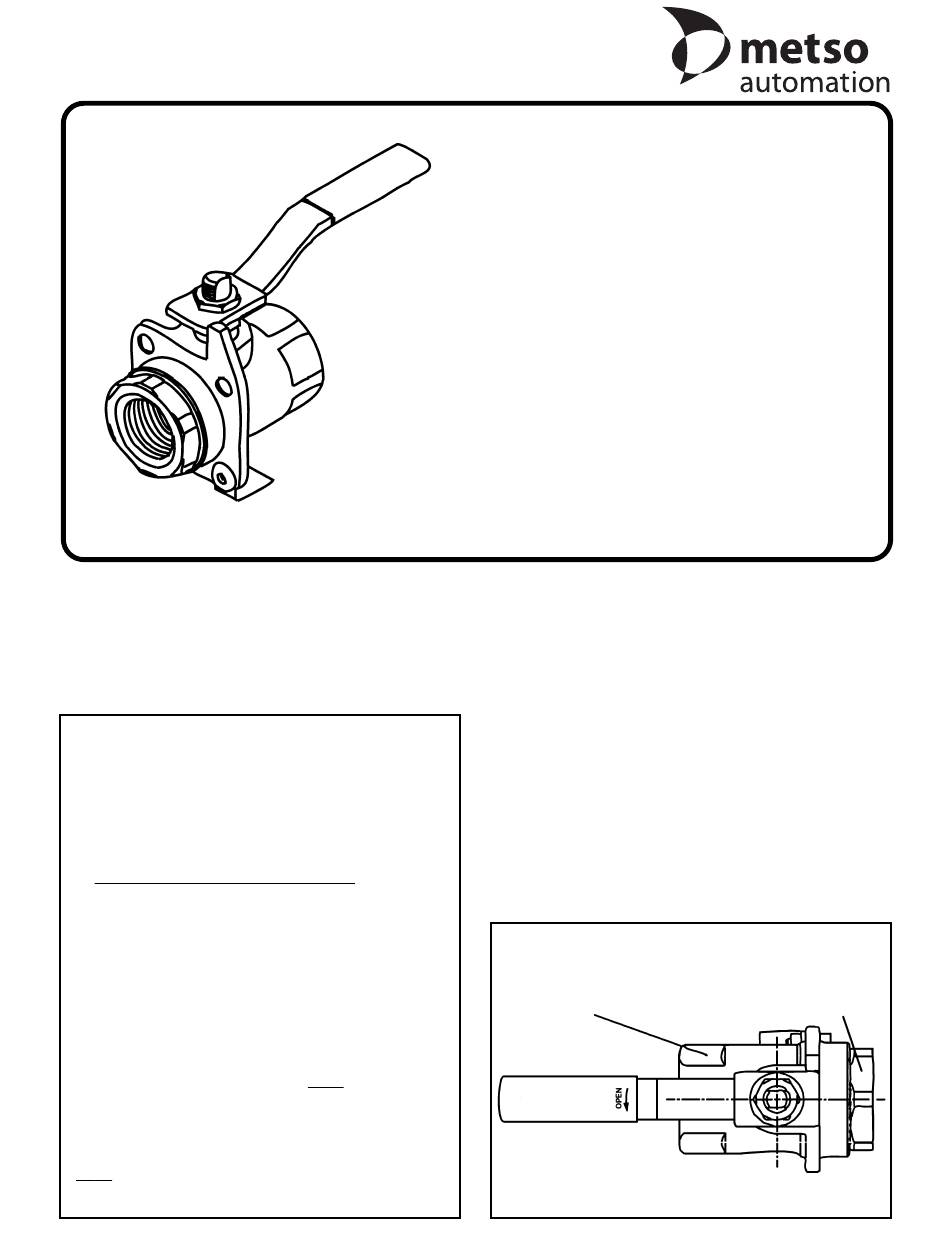

metso automation Eliminator 9FB-3600XT Installation Maintenance And Operating Instructions

1
GENERAL
This instruction manual contains important information
regarding the installation, operation and troubleshooting
of the Jamesbury® 1/4" – 2" (DN 8 – 50) Eliminator Ball
Valves. Please read these instructions carefully and save
then for further reference.
1.1 WARNING
FOR YOUR SAFETY, IT IS IMPORTANT THAT THE FOLLOWING PRECAU-
TIONS BE TAKEN PRIOR TO REMOVAL OF THE VALVE FROM THE LINE
OR BEFORE ANY DISASSEMBLY
1. WEAR ANY PROTECTIVE CLOTHING OR EQUIPMENT NORMALLY
REQUIRED WHEN WORKING WITH THE FLUID INVOLVED.
2. DEPRESSURIZE THE LINE AND CYCLE THE VALVE AS FOLLOWS:
A. PLACE THE VALVE IN THE OPEN POSITION AND DRAIN THE LINE.
B. CYCLE THE VALVE TO RELIEVE RESIDUAL PRESSURE IN THE
BODY CAVITY BEFORE REMOVAL FROM THE LINE.
C. AFTER REMOVAL AND BEFORE ANY DISASSEMBLY, CYCLE THE
VALVE AGAIN SEVERAL TIMES.
3. WHEN INSTALLING OR REMOVING PIPING FROM THE VALVE,
PLACE A WRENCH ON THE BODY OR THE BODY CAP NEAREST
THE END BEING WORKED. MAKE CERTAIN BODY CAP END OF
VALVE DOES NOT TURN OUT OF THE VALVE BODY. (BODY/BODY
CAP JOINT IS A RIGHT HAND THREAD.) NOTE: IF FITTING OR PIPE
REMOVAL IS TO BE A REGULAR PRACTICE,JAMESBURY RECOMMENDS
EITHER THE WELDED BODY CAP VERSION OF THE ELIMINATOR OR
OTHER VALVE STYLES STYLE,WHICH ARE OF THE BOLT TOGETHER
OR UNIT BODY DESIGN.
(NOTE: ROUND HANDLES ARE OPTIONALLY AVAILABLE FOR THESE
VALVES IN PLACE OF LEVER HANDLES.)
IMO - 293EN
INSTALLATION, MAINTENANCE, AND
OPERATING INSTRUCTIONS
1/4" – 2" (DN 8 – 50)
ELIMINATOR®
BALL VALVES
Read entire instructions carefully before installation or servicing
2
INSTALLATION
Screwed end valves have NPT threads. To insure a leaktight
joint, liberal use of a compatible pipe joint compound is
necessary. The Eliminator may be installed for flow in either
direction. It is recommended, however, that a screwed
valve be installed with the body cap facing upstream. Use
standard piping practices when installing valves with
threaded parts. When tightening the valve to the pipe,
apply the wrench to the end nearest the pipe being
worked (see Figure 1). Adjust packing prior to installation.
See the MAINTENANCE Section of this IMO.
Wrench here (hex flats)
when installing or removing
pipe this end.
Jamesbury
Issue Date: 2/04
Wrench here (flats)
when installing or
removing pipe
this end.
Figure 1
