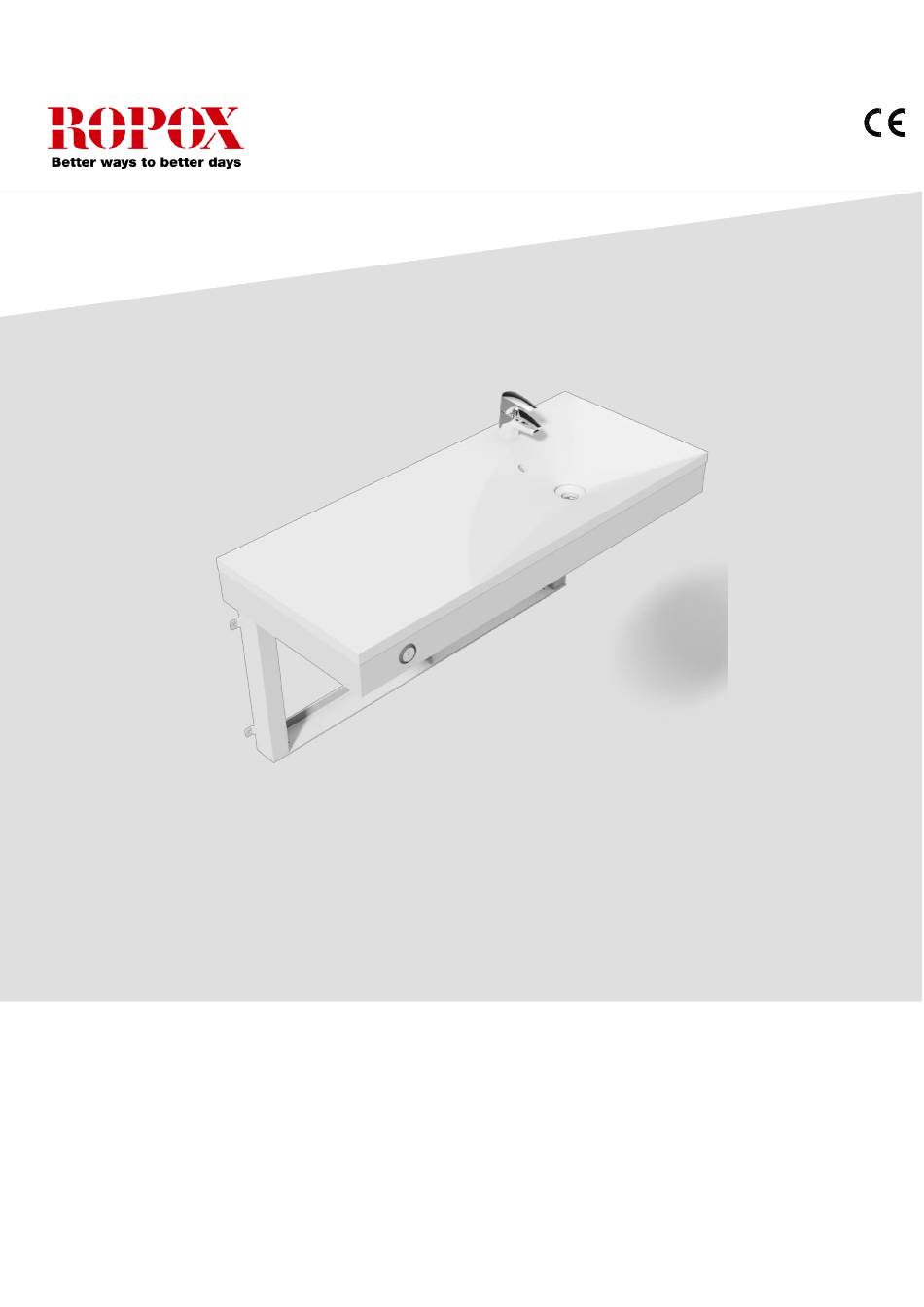

- Page 1 Ropox VanityLine Washbasin Electric User Manual Mounting Instructions Keep this folder with product at all times! PDF 6174 / 25.10.2017 PA 2004 00634 © ROPOX 2017...
-
Page 2: Table Of Contents
Mounting of infrared control ..........................24 Pre-setting of maximum water temperature ..................... 24 Mounting of cover plates ..........................25 LIST OF COMPONENTS FOR VANITYLINE WASHBASIN ................ 27 11. OPTIONS ................................31 12. SAFETY IN USE ..............................32 13. CLEANING/ MAINTENANCE ..........................33 13.1... -
Page 3: Introduction
See separate CE-declaration, page 37. Application The VanityLine washbasin is adjustable in height in order to obtain optimum working height for user and helper. Do NOT use VanityLine washbasin as a lifting table or person lifter. The product should be used indoor, at temperatures and humidity as described in section 4 The control unit complies with IP66 and must always be installed in accordance with the national Heavy Current Regulations or corresponding national or international standards. -
Page 4: Control Switch
The washbasins stops as soon as control button is released. Ropox hand control with cable (accessory) As an alternative hand control with cable can be used. Hand control works in the same way as switch. As soon as button is released movement of washbasin will stop. -
Page 5: Technical Data Vanityline Washbasin
Approx. 18 Lifting time stroke 30 cm: Approx. 17 sec. Temperature: 10-40°C Air humidity: 5-85% (non-condensing) Complaints: See complaints page 38 Producer: Ropox A/S, DK-4700 Naestved, Tel.: +45 55 75 05 00 Mail: info@ropox.dk, www.ropox.com Page 5 © ROPOX 2013... -
Page 6: Dimensionssketch
Dimensionssketch 40-14851 40-14852 og 40-14853 Page 6 © ROPOX 2013... -
Page 7: Supply Points, Water Supply And Waste
40-14854 og 40-14855 Supply points, water supply and waste 40-14851 Page 7 © ROPOX 2013... - Page 8 40-14852 40-14853 Page 8 © ROPOX 2013...
- Page 9 40-14854 40-14855 Page 9 © ROPOX 2013...
- Page 10 The control unit complies with IPX6 and must always be installed in accordance with the national Heavy Current Regulations or corresponding international or national standards. The cables to the control unit must be able to move freely during height adjustment of the washbasin. Page 10 © ROPOX 2013...
-
Page 11: Connection Adapters
Ø32 -> Ø50 Item No. 97001661 Drain hose extension Drain hose from washbasin Coupling piece Extra drain hose Ø32 Flex hose, 40-110cm Item No. 97001161 Ø32 Ø32-Ø32 Ø32 Flex hose, 27-62cm Item No. 97001662 Item No. 97001162 Page 11 © ROPOX 2013... -
Page 12: Mounting Instructions
7.1.3 Fasten legs with two bolts, threaded bolts on the bracket. make sure both legs flush with end of aluminum profile. Page 12 © ROPOX 2013... -
Page 13: Mounting Of Frame On The Wall
After mounting, the threaded bolts wall is vertical. can be removed. Mounting of spacers 7.3.1 In case of skirting boards, you can use the 1 cm deep spacers to pack the frame out from the wall. Page 13 © ROPOX 2013... -
Page 14: Mounting Of Actuator
Once actuator is secured with both fittings, top bracket can be fastened to aluminum profile Mounting of top frame 7.4.1c 7.5.1 Push the small flat-bar nuts into the profile. Afterwards push large flat-bar nuts into profile, one in each end/side. Page 14 © ROPOX 2013... -
Page 15: Mounting Of Wooden Fascias
7.6.2 To ensure correct positioning of the wooden fascias they are provided with 7.6.3 Now all three fascias have been marking-out for screws. Fasten the mounted. fascias to the frame from the inside. 6.4.1 Page 15 © ROPOX 2013... -
Page 16: Mounting Of Control Switch
7.7.1 The control switch for height adjustment must be mounted in the wooden front fascia. Choose the required position (right/ left) in the front fascia and drill a 1.8 cm dia. hole. 7.7.2 Screw cap for control switch into fascia and afterwards mount switch. Page 16 © ROPOX 2013... -
Page 17: Mounting Of Control Unit
For positioning on 40-14852 see point 7.8.1. For positioning on 40-14853 see point 7.8.2. For positioning on 40-14854 see point 7.8.3. For positioning on 40-14855 see point 7.8.4. For positioning on 40-14851 see point 7.8.5. 40-14853 7.8.2 Page 17 © ROPOX 2013... - Page 18 40-14854 7.8.3 40-14855 7.8.4 Page 18 © ROPOX 2013...
- Page 19 40-14851 7.8.5 Page 19 © ROPOX 2013...
-
Page 20: Wiring Circuit
Note! Remember to mount filler plugs into contacts that are not used in control boxes and transmission box. Warning ALWAYS switch off mains voltage during assembly Check national regulations to determine the correct location of the control unit. er montage Page 20 © ROPOX 2013... -
Page 21: Mounting Of Washbasin
Make sure washbasin as illustrated. The flexible that the connecting hoses move waste pipe must be able to move freely within the height freely within the height adjustment adjustment range. range. Page 21 © ROPOX 2013... -
Page 22: Mounting Of Accessories
=2 cm. 1. START Corner 6. Mount end plug Shorten safety strip Sectional view of front- and side fascia It is extremely important that safety strip is mounted equate with outer edge of front/side fascia Page 22 © ROPOX 2013... - Page 23 Plugs 1. Controlbox 2. Mains cable 230V 3. Actuator 4. Transmission box 97001685 5. Control switch 6. Safety strip 7. End plug 8. Adapter cable for safety strip 9. Communication cable 10. Transmission box 97001410 Page 23 © ROPOX 2013...
-
Page 24: Mounting Of Hand Control
Now the lever may be pulled off. By turning the ring to the left, you may reduce the maximum water temperature. If the ring is turned to the right, the maximum temperature will be increased. Page 24 © ROPOX 2013... -
Page 25: Mounting Of Cover Plates
(see mounting instruction for washbasin) 8.5.3 Push outer cover plate onto top frame and mount/fasten with 2 pcs M6x10 bolts. Use prepared cutout in cover plate according to washbasin that is being installed! Page 25 © ROPOX 2013... - Page 26 Performance test After installation and prior to use, all functions of VanityLine must be tested. The test must be carried out by competent personnel. Subsequently the test shall be carried out at least once a year: Testing prior to connection of mains voltage: 1.
-
Page 27: List Of Components For Vanityline Washbasin
List of components for VanityLine washbasin VanityLine washbasin 60 cm, 40-14851: 30*65300-060: Alu-profile 1 pc. 30-67636-1: Flexi legs 2 pcs. The legs comprise: 30-67881: Spacer (0.15 cm) 3 pcs./ leg 30-67680: Spacer (1 cm) 2 pcs./ leg 40*14705-058: Frame for washbasin 122 cm 1 pc. - Page 28 95180510: Locking nut M10 2 pcs. VanityLine washbasin 90cm, left 40-14853: Contains the same parts as specified in item 40-14852 97001571: Washbasin, left 90x50 cm 1 pc. VanityLine washbasin 120 cm, right 40-14854: 30*65300-120: Alu-profile 1 pc. 30-67636-1: Flexi legs 2 pcs.
- Page 29 95011020: Bolt M10x20 4 pcs. 95011035: Bolt M10x35 2 pcs. 95180510:Locking nut M10 2 pcs. VanityLine washbasin 120 cm, left 40-14855: Contains the same parts as specified in item 40-14854 97001573: Washbasin, left 120x50 cm 1 pc. Common plumbing parts...
- Page 30 2 pcs. 97001120: Connecting hoses, ½” x ½”, 100 cm 2 pcs. 97001320: Mixer tap, Oras Saga 1 pc. Lever length 8 cm from centre 96000155: Adhesive pads 5 pcs. Cable tidy strips 5 pcs. Page 30 © ROPOX 2013...
-
Page 31: Options
Incl. 14141-018 hand control holder 1 set This model is for use on washbasin WITHOUT safety strip. Hand control, 40-14869-1: Incl. 14141-018 hand control holder 1 set This model is for use on washbasin with safety strip Page 31 © ROPOX 2013... -
Page 32: Safety In Use
If the washbasin has not been installed in accordance with these mounting instructions, the guarantee may become void. Only use Ropox original spare parts as replacement parts. If other spare parts are used, the guarantee may become void. Page 32... -
Page 33: Cleaning/ Maintenance
Check that all cables have been fitted correctly and are undamaged. After each inspection the service schedule shall be filled in. See item 13.4. Only use Ropox original spare parts as replacement parts. If other parts are used, the guarantee may become void. -
Page 34: Service Schedule, Operation And Maintenance
Signature: Remarks: Remarks: Service and maintenance Serial No. Service and maintenance Serial No. Date: Date: Signature: Signature: Remarks: Remarks: Service and maintenance Serial No. Service and maintenance Serial No. Date: Date: Signature: Signature: Remarks: Remarks: Page 34 © ROPOX 2013... -
Page 35: Trouble Shooting
Check cables and plug-in connections between control box and control switch Check cable connections between safety stop and control box Check safety stop has not been activated Page 35 © ROPOX 2013... -
Page 36: Spare Parts
Motor cable 97000474 Japan 97000438 Communication cable 97000440 97000461 Quantity 90x50cm 90x50cm 120x50cm 120x50cm Description per product 60x50cm right left right left Washbasin 97001570 97001572 97001571 97001574 97001573 Wooden front fascia 60102498 60102497 60102497 60102499 60102499 Page 36 © ROPOX 2013... -
Page 37: Ce-Marking
CE-marking The undersigned hereby declares that the following products: Ropox VanityLine washbasin electric Washbasin 60x50cm: 40-14851 Washbasin 90x50 cm right : 40-14852 Washbasin 90x50 cm left: 40-14853 Washbasin 120x50 cm right: 40-14854 Washbasin 120x50 cm left: 40-14855 all belong to risk class I and conform to the Directives and Standards mentioned below: DIRECTIVES Medical Devices Directive No. -
Page 38: Complaints
We refer to our General Terms of sale and delivery on our homepage www.ropox.com ROPOX A/S Ringstedgade 221 DK – 4700 Naestved Tel.: +45 55 75 05 00 Fax.: +45 55 75 05 50 E-mail: info@ropox.dk www.ropox.com Page 38 © ROPOX 2013...
