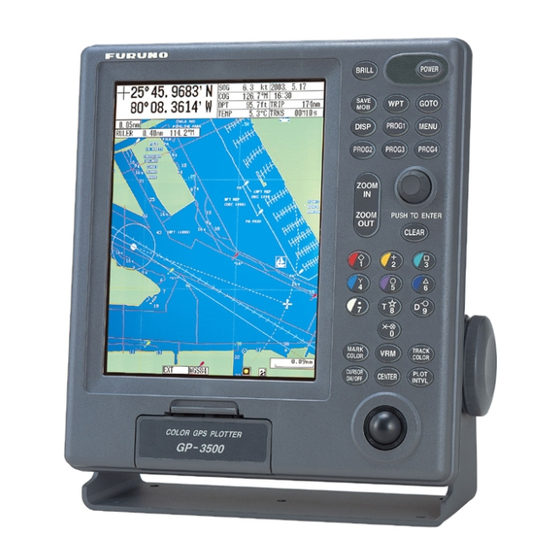

COLOR GPS/PLOTTER GP-3500
The purpose of this Operator's Guide is to provide basic operating procedures for this
equipment. For more detailed information see the Operator's Manual.

Adjusting brilliance

1. Press the [BRILL] key to show the
brilliance adjustment window.
2. Rotate the [ENTER] knob within three
seconds to adjust the brilliance.
3. Press the [ENTER] knob to close the
brilliance adjustment window.

Selecting a display

1. Press the [DISP] key to show the
DISPLAY MODE screen.
2. Press the appropriate numeric key to
choose a display.

Operating the cursor

1. Press the [CURSOR ON/OFF] key to turn
on the cursor.
2. Operate the trackball to move the cursor.
3. To move the cursor position to screen
center, press the [CENTER] key.

Scrolling the display

1. Press the [CURSOR ON/OFF] key to turn
off the cursor.
2. Operate the trackball to scroll the display.
3. To return own ship's mark to screen
center, press the [CENTER] key.

Changing chart scale range

Press the [ZOOM IN] or [ZOOM OUT] key as
appropriate.
All manuals and user guides at all-guides.com
Operator's Guide
Stopping, restarting plotting of
own ship track
1. To stop the plotting, press the [PLOT
INTVL] key several times to show the H
icon at the bottom of the screen.
2. To restart the plotting, press the [PLOT
INTVL] key again.
Changing own ship's track
color
1. Press the [TRACK COLOR] key to show
the CHANGE SHIP'S TRACK COLOR
window.
2. Press the appropriate numeric key within
10 seconds to select a color.

Entering marks

1. To enter a mark at the cursor position,
turn on the cursor and then operate the
trackball to place the cursor at the
location where you want to enter a mark.
To enter a mark at own ship's position,
press the [CURSOR ON/OFF] key to turn
off the cursor.
2. Press the numeric key corresponding to
the mark you wish to enter.
Note: To erase a mark, place the cursor on
the mark you wish to erase and then
press the [CLEAR] key.
