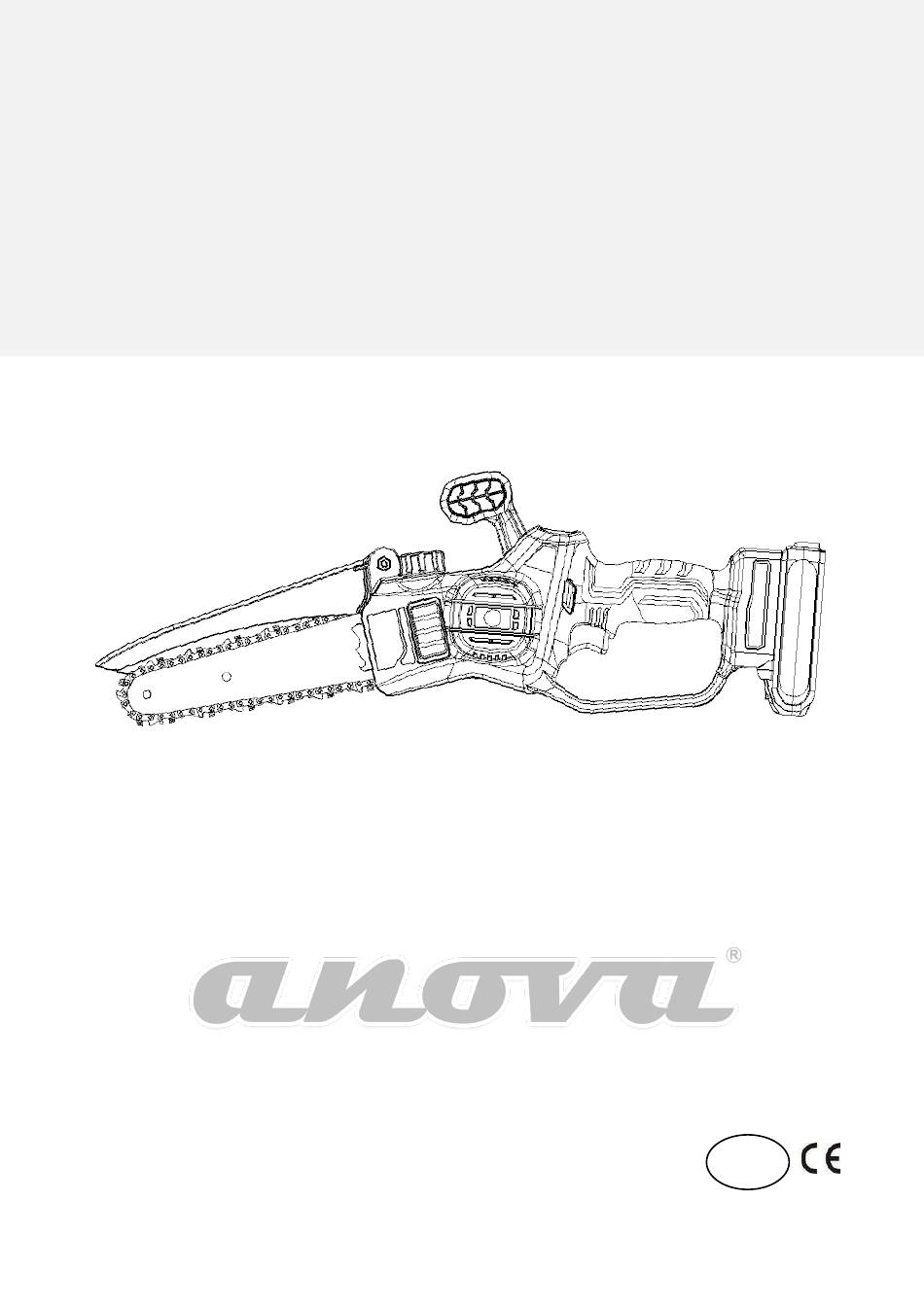

- Page 1 Instructions and user manual MB600 Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña 981 696465 www.millasur.com...
- Page 2 ANOVA wishes to congratulate you for choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be of great use if used in accordance with the instructions contained in the user manual.
- Page 3 INDEX 1. Symbols 2. General Safety Specification for Power Tools 3. Safety warnings for rechargeable chainsaws 4. Causes of Tool Kickback and Preventive Measures 5. Machine parts 6. Other security specifications 7. Operating Environment Requirements 8. Cleaning, maintenance and repair 9.
- Page 4 Symbols Symbols for this product are shown below. Please understand its meaning before using the product. Read the instruction manual Keep it out of the rain Please pull out the plug in time Warning / Danger once power cord damaged or cut Wear safety glasses wear protective clothing wear earmuffs...
- Page 5 Keep cables away from heat sources, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock. d. When using power tools or charging your batteries outdoors, use an external cord for outdoor use, which can reduce the risk of electric shock. e.
- Page 6 the tree. 6) Be sure to stand firmly on a firm, secure, level surface before using the chainsaw. Slippery or unstable surfaces, such as stairs, can cause loss of balance or loss of control of the chainsaw. 7) Stay alert when cutting a limb under tension to avoid any kickback. By releasing the tension in the wood grain, the spring force in the branch can impact the operator or cause the chainsaw to spin out of control.
-
Page 7: Machine Parts

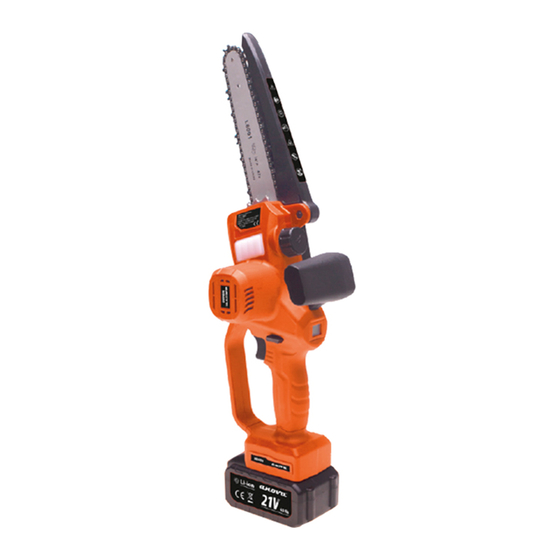

Machine parts 1. Oil cap 2. Main/rear handle 3. Front handle 4. Trigger 5. Self-locking switch 6. Protective cover 7. Screen 8. Battery input interface 9. Lock nut 10. Sprocket cover plate 11. Tighten the knobs 12. Sword 13. String 14. -
Page 8: Environment Requirements
Operator Requirements Caveat The user must not use or access the chainsaw, battery pack or charger before reading and understanding the manual. Otherwise, it may cause serious injury to the user or other people. Read and understand the instruction manual and keep it for future reference. - Page 9 a. Do not use the chainsaw in the rain or in a wet environment. 3) The chainsaw motor can produce sparks that can cause a fire or explosion in the environment with combustible or explosive materials. This can cause very serious injury to the user and property damage.
-
Page 10: Precautions During Operation
1) The chain is not damaged. 2) The cutting edges of the chain teeth are sharp. 3) The depth of the notch of the teeth of the chain cutter heads complies with the description of the service mark. 4) The length of the cutting edges of the cutter heads meets the requirements of grinding. Caveat If parts and accessories do not meet safety standards, they cannot perform their functions properly, and the safety device will become invalid, resulting in very serious personal injury or death. - Page 11 Caveat When the tree is under tension, the bar can be seized and the user will lose control of the chainsaw, causing serious injury. (Figure 1) 1) Cut a relief slot on the tight side (1) and then cut on the loose side (2). Figure 1 Precautions for trimming ...
-
Page 12: Cleaning, Maintenance And Repair
Kickback warnings The chainsaw may kick back in the following cases: 1) The running chainsaw touches any hard object on the bar or brakes suddenly. 2) If the tip of the bar with the chainsaw running. Voltage Warning Messages ... -
Page 13: Chainsaw Assembly
time. c. For the maintenance of the bar and the chain, follow the descriptions in the manual. 4) The user can be injured by sharp teeth when cleaning or maintaining the chainsaw: Wear protective gloves. Items to be inspected before operation Check whether the following items are in a safe state and perform any necessary pre-operation tasks. - Page 14 Chain and bar removal 1) Turn the nut "①" counterclockwise until the sprocket cover can be removed②. 2) Remove the sprocket cover. 3) Adjust the tension adjustment bolt "③" to loosen the chain. 4) Remove chain and bar. Chain tension ...
- Page 15 7) Cover the lid of the oil can and tighten it. Check the chainsaw Turn off the chainsaw when you do the following. Chain Wheel Inspection 1) Turn off the chainsaw and cut off the power. 2) Remove the chain wheel protection cover. 3) Remove the bar and chain.
- Page 16 2) Turn on the chainsaw. a. The chain oil is expelled and the oil can be clearly seen on the ground directly below the bar. b. Which indicates a normal discharge of oil from the chainsaw. If no oil is visible: 3) Supply chain oil.
- Page 17 chain and bar must not be in contact with any object when starting the machine). Battery indicator Display: hours / minutes display (%) Pull the trigger and count the time 1. Normal presentation box for seconds 2. Show fault code after problem occurs Condition Observation Low battery...
- Page 18 felling confirmand the escape route a. The escape path (B) has an included angle of 45° in the reverse direction (A) of the direction of tree fall. b. Make sure path (B) is clear of obstacles. c. You can see the top of the tree. two.Treatment of roots of cut trees.
-
Page 19: Maintenance
Maintain the angle of the tooth. e. Grind the small teeth of the cutter heads according to the depth of the bar groove. Please contact the dealer in time if you have any questions. Technical data Model MB600 cutting diameter 0~200mm rated voltage DC21V... -
Page 20: Warranty
Note: The right is reserved to change specifications without prior notice. Specifications and battery packs may vary. Warranty For this tool the company provides the end user - regardless of the obligations of the retailer resulting from the purchase contract - with the following guarantees: The warranty period is 24 months from the delivery of the device which must be approved by the original purchase document. -
Page 21: Exploded View
Exploded view... -
Page 22: Ec Declaration Of Conformity
In the event that the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity. Machine name: BATTERY CHAINSAW MB600 Model: Recognized and approved standard to which it conforms: Directive 2006/42/EC...
