Summary of Contents for Anova MG3514
- Page 1 Instructions and user manual MG3514 Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña 981 696465 www.millasur.com...
-
Page 2: Information About This Manual
ANOVA wishes to congratulate you for choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be of great use if used in accordance with the instructions contained in the user manual. - Page 3 INDEX TECHNICAL SPECIFICATIONS BASIC SAFETY INDICATIONS SYMBOLS ON THE MACHINE MACHINE PARTS BAR AND CHAIN ASSEMBLY FUEL AND OIL FOR THE CHAIN BEFORE YOU START TO USE USE AND PRECAUTIONS FUNCTIONING MAINTENANCE PROBLEM SOLVING STORAGE WARRANTY ENVIRONMENT EXPLODED CE CERTIFICATION...
-
Page 4: Technical Specifications
1. TECHNICAL SPECIFICATIONS MODEL MG3514 DIMENSIONS (mm) 420x235x280 MAX POWER (kw) DISPLACEMENT (cm3) 35.2 IDLE SPEED (rpm) 3300 ±400 MAXIMUM REVOLUTIONS (rpm) 12500 WEIGHT (kg) FUEL 2T gasoline mix 40:1 DEPOSIT CAPACITY CONSUMPTION (MAXIMUM POWER) 600g/kw.h LUBRICATION OIL SAE10W-30 LUBRICATION OIL CAPACITY (ml) - Page 5 2. BASIC SAFETY INDICATIONS Please read the instructions provided to you carefully and make sure you understand the content. Familiarize yourself with the chainsaw and the control of all its elements by reading the manual. Be sure to keep this manual handy so you can refer to it later whenever questions arise. Be sure to include this manual when you sell, lend, or otherwise transfer ownership of this product.
- Page 6 • Do not use a chain that is damaged, poorly adjusted, or not fully and securely mounted. Make sure the chain stops moving when the throttle control trigger is released. • Shut off the engine before adjusting the chain saw. Before refueling, repairing, or transporting the chain saw, turn off the engine.
-
Page 7: Symbols On The Machine
3. SYMBOLS ON THE MACHINE For safe operation and maintenance of your machine, please pay attention to the symbols that are embossed on the machine. (a) The place where to refuel the gasoline mixture. Position: On the fuel tank cap (b) The place to refuel the chain oil. -
Page 8: Machine Parts

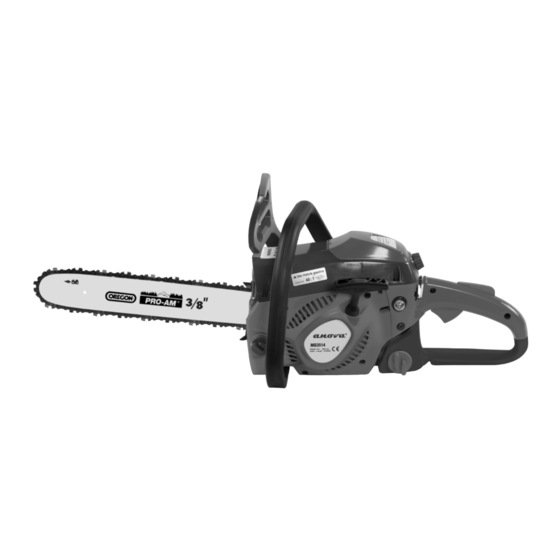

4. MACHINE PARTS 1. front protection 8. close button 2. starter puller 9. off switch 3. Air filter 10. Fuel tank 4. Throttle 11. Oil deposit 5. throttle lock 12. Carrying handle 6. rear handle 13. String 7. Throttle 14. Sword 5. - Page 9 7. Tighten the lock nut with the tip of the bar held (12 ~ 15 Nm). Next, check the chain for smooth rotation and proper tension while moving by hand. 8. Check the tension of the saw chain. Use your hand to lift the chain link positioning it at the center of the cut length with approximately 10N force.
-
Page 10: Fuel And Chain Oil
both hands. A firm grip will help reduce kickback and maintain control of the chainsaw. Also, make sure the area you are cutting is clear of obstructions. Do not reach or cut above shoulder height and use only manufacturer specified replacement bars and chains or their equivalent. -
Page 11: Operation
1. Fill the fuel and chain oil tanks, respectively, and tighten the caps securely. (1) Chain oil (2) Gasoline 2. Put the switch in the "I" position 3. While holding the throttle lever together with the throttle lockout, push the fuel primer to get fuel and release the throttle to hold it in the starting position. - Page 12 are not specified by the manufacturer is prohibited. It is not necessary to press the saw into the cut against the trunk. Apply only light pressure while running the engine at full speed. Daily inspection is recommended before use and after drops or other impacts to identify significant damage or defects.
-
Page 13: Maintenance
Cutting of an unsupported log Saw halfway through, then roll the log and cut from the opposite side. Cutting a supported log In area A in the image above, saw from the bottom one-third and finish sawing from the top. In area B, saw down from the top one-third and finish sawing from the bottom. - Page 14 10.2. The sword When disassembling the guide bar, remove the sawdust in the groove of the bar and the grease inlet. Grease the bar sprocket. Check for fuel leaks and loose fasteners and damage to major parts, especially handle joints and guide rod mounting. If any defects are found, make sure they are repaired before using again.
-
Page 15: Troubleshooting
Turn the guide bar over from time to time to prevent uneven wear. The bar rail must always be square. Check for wear and file to even out imperfections. 1. Rule 2. correct rail 3. wrong rail 4. chain pitch To avoid danger, NEVER use another bar or chain on this machine other than those indicated. -
Page 16: Warranty
Should the unit require additional overhaul service, please consult an authorized ANOVA service facility in your area. 13.WARRANTY This product is guaranteed in accordance with legal regulations for a period of 12 months from the date of purchase by the first user. - Page 17 15. EXPLODED MG3514...
-
Page 18: Ec Declaration Of Conformity
In the event that the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity. Machine name: CHAINSAW MG3514 Model: Recognized and approved standard to which it conforms: Directive 2006/42/CE...
