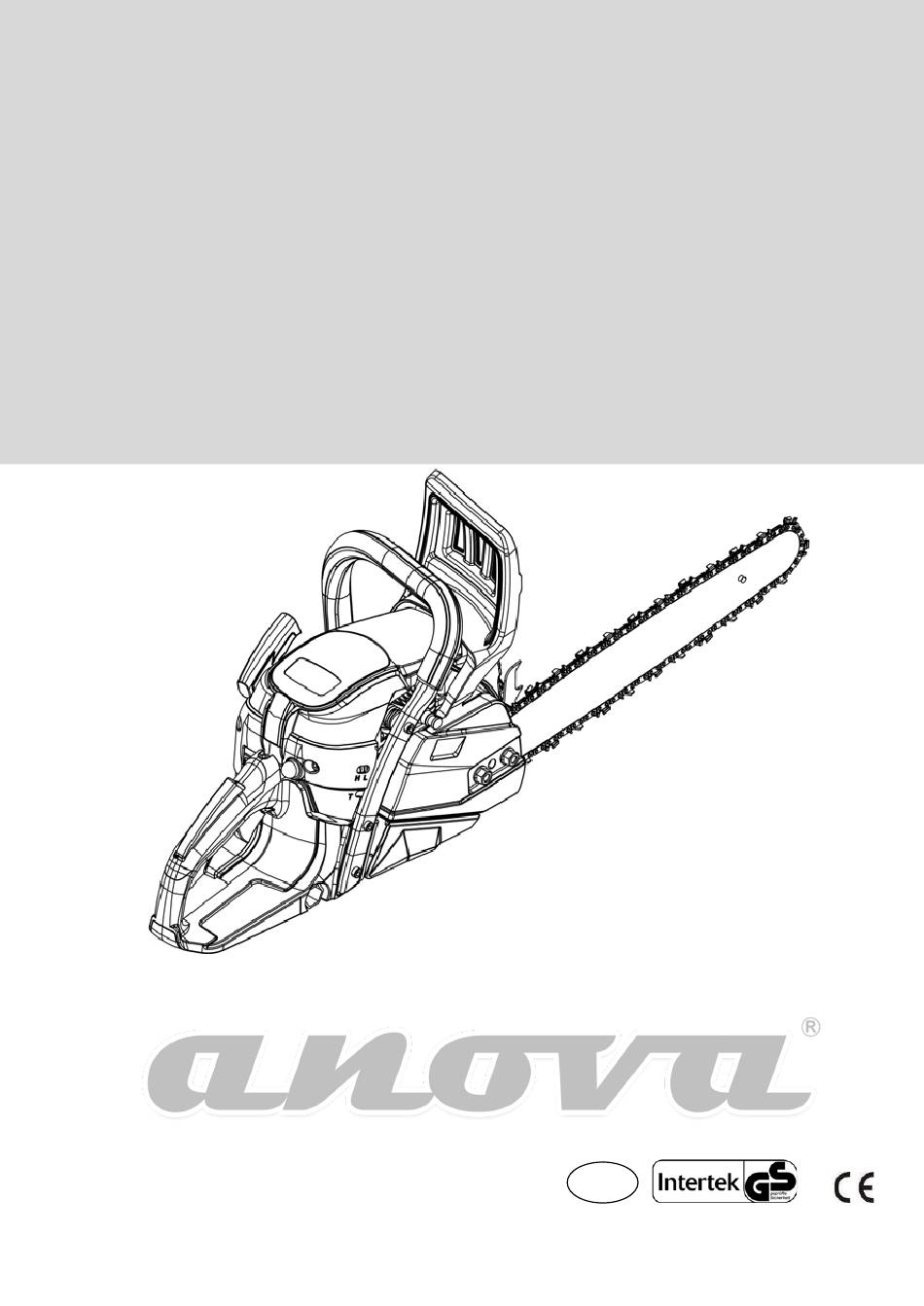

- Page 1 Instructions and user manual M437HXP M445HXP M455HXP Millasur, SL. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña 981 696465 www.millasur.com...
- Page 2 ANOVA wishes to congratulate you for choosing one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last for many years and to be very useful if used in accordance with the instructions contained in the user manual.
-
Page 3: Table Of Contents
CONTENTS 1. Location of parts 2. Symbols on the machine 3. Safe operation 4. Chain and cutter bar installation 5. Fuel and chain oil 6. Operation 7. Cut with the chainsaw 8. Maintenance 9. Maintenance of the saw chain and guide bar 10. - Page 4 Attention! Read these notes before starting to work with the machine and keep them with the machine. Read the instructions carefully. Familiarize yourself with the control elements to be able to use the device safely. Always keep these operating instructions with the chain saw. Attention! Risk of hearing damage.
- Page 5 attached to the body of the machine. If you notice an unpleasant sensation or discoloration of the skin on your hands while using the machine, stop working. Get a proper work break. Without observing the appropriate work breaks, there may be a vibration syndrome. Warning: there may be national regulations (Occupational Health and Safety, environment) that may restrict the use of the chainsaw.
-
Page 6: Location Of Parts
1.LOCATION OF THE PARTS 1. Saw chain 9. Rear handle 17. Choke cylinder 10. Acceleration trigger 18. Spark plug wrench 2. Guide bar 3. Front guard 11. Fuel check. 19. Decompression valve(if included) 4. Front handle 12. Fuel cap 20. Chain cap 13. -
Page 7: Symbols On The Machine
2.SYMBOLS ON THE MACHINE Read, understand and follow all warnings. Warning! Kickback hazard. Be careful of the kickback of the chain saw and avoid contact with the tip of the bar. (3) Do not use the saw with one hand. (4) Always use the saw with both hands (5) You should wear ear, eye and head protection. - Page 8 (h). Shows the installation direction of the chain saw. Position: In front of the chain cover (I). Sound level of this equipment. M437HXP / M445HXP:113 dB (A) M455HXP: 114 dB (A) (J). Manual engine start. k) Decompression valve (if included)
-
Page 9: Safe Operation
3.SAFE OPERATION ■ Before operating the product 1. Before using our products, please read this manual carefully to understand the correct use of your unit. 2. Never operate a chain saw when you are fatigued, ill or upset, or under the influence of medications that can cause drowsiness or if you are under the influence of alcohol or drugs. - Page 10 or operating the chain saw. 4. Never start mowing until you have a clear work area, secure footing, and a planned retreat path from the falling tree. 5. Always hold the chain saw firmly with both hands when the engine is running. Use a firm grip with your thumb and fingers around the chain saw handles.
- Page 11 when the wood comes in and pinches the chain at the cut. Contact at the tip in some cases can cause quick reverse action, flipping the bar toward the operator. Cutting the chain saw along the top of the guide bar can quickly propel the guide bar towards the operator.
- Page 12 4 INSTALLING THE CHAIN AND CUTTING SWORD The saw chain has very sharp edges. Wear protective gloves for your safety. Make sure the motor has stopped and is off before adjusting the bar and saw chain. The chainsaw box must contain the items shown below: 1.
- Page 13 IMPORTANT It is very important to maintain proper chain tension. Rapid wear on the guide bar or chain that comes off easily can be caused by improper tension. Especially when using a new chain, take good care of it, as it must expand when used for the first time.
-
Page 14: Operation
6 OPERATION TO START THE ENGINE ■ Cold start A "cold" start of the engine means starting it after at least 10 minutes after it was shut down or after refueling. 1. Unscrew the gas tank cap and oil cap completely, but do not remove them from the machine, just hang up. - Page 15 5. Hold the chain saw firmly on the ground, and repeat pulling the cord until the engine starts. 6. Lift the front handle shield toward the front handle to release the brake. Then let the engine warm up with the trigger pulled slightly. Before starting the engine, make sure the saw chain is not in contact with anything.
- Page 16 Needle H –1/4 Needle L –1/4 2. Start the engine and let it warm up at low speed for a few minutes. 3. Turn the idle speed adjusting screw (T) counterclockwise ○ b so that the saw chain does not rotate. If the idle speed is too slow, turn the screw clockwise ○ a. 4.
- Page 17 risen and returned to normal may cause the engine to not start properly or the engine to not run at its normal speed, so you should always make sure to adjust the window. antifreeze to close mode if there is no danger of icing. HOW TO SWITCH BETWEEN THE OPERATING MODES 1.
- Page 18 Daily inspection is recommended before use and after dropping or other impacts to identify significant damage or defects. Loading the engine with the chain caught in a cut can damage the clutch system. When the saw chain is caught in the cut, do not try to force it out, but use a wedge or crowbar to open the cut.
-
Page 19: Maintenance
Cut a supported log In area A in the image above, saw from the bottom one third and finish sawing from the top. In area B, saw down from the top one third and finish sawing from the bottom. Delimbing a felled tree First check in which direction the limb is bent. - Page 20 Maintenance after each use ■ Air filter Dust on the surface of the air filter can be removed by tapping a corner of the filter against a hard surface. To clean the dirt on the screens, divide the filter in half and brush with gasoline.
- Page 21 Periodic service points ■ Cylinder fins Dust clogging between the cylinder fins will cause the engine to overheat. Periodically check and clean the cylinder fins after removing the air filter and cylinder cover. When installing the cylinder cap, make sure the switch wires and grommets are properly in place.
-
Page 22: Maintenance Of The Saw Chain And Guide Bar
Cutting teeth sharpening standards: Chain ■ It is very important for a smooth and safe operation to always keep the chain sharp. Your cutting teeth need to be sharp when: • Sawdust becomes dusty. • You need additional force to cut. •... - Page 23 Top plate Lower File Depth gauge Inclination angle angle diameter standard angle(55°) Screw Screw Lateral rotation inclinatio angle Chain type 30° 10° 85° 0.025 " Depth gauge lime Guide bar • Reverse the bar occasionally to avoid partial and unbalanced wear of the chain and bar.
-
Page 24: Storage
"*". Inclination Guide bar Chain Model Hound Pinio Chain pitch Length Ref. Ref. M437HXP M445HXP M455HXP Links [inches/ Oregon Oregon 3/8 LP 16”/ 40cm 0.050 ”/1.3mm 160SDEA041 91P057 Oregon Oregon 0.325 "... -
Page 25: Warranty
11. DISPOSAL AND ENVIRONMENTAL PROTECTION Never pour waste chain lubricant or 2-stroke fuel mixture into the drain or sewer system or ground, but dispose of it in an appropriate, environmentally friendly manner, for example, at a special collection point or landfill. If your machine does not work at any time, in the future or you do not need it any longer, do not dispose of the device together with your household waste, but dispose of it in an environmentally friendly way. - Page 26 Readjust needle speed -Check for inferior quality oil Replace 3) The oil does not come out -Check the oil flow for any obstruction Clean Should the unit require additional overhaul service, consult an authorized ANOVA service facility in your area.
-
Page 27: Specifications
14. TECHNICAL SPECIFICATIONS Model M437HXP M445HXP M455HXP Displacement: 37.5 cm 45.4 cm 54.3 cm Maximum motor power: 1.5 kW 1.95 kW 2.4 kw Fuel: Mixture (Unleaded 40 Gasoline: Two Cycle Oil 1) Fuel tank capacity: 410 cm 520 cm Chain oil: SAE # 10W Engine Oil‐30... - Page 28 Machine name: CHAINSAW Model / os: M437HXP Recognized and approved standard to which it conforms: Directive 2006/42 / CE / Directive 2014/30 / EU...
- Page 29 DISTRIBUTION COMPANY MILLASUR, SL RUA EDUARDO PONDAL, Nº 23 PISIGÜEIRO 15688 OROSO - A CORUÑA SPAIN CE DECLARATION OF CONFORMITY In compliance with the different CE directives, it is hereby confirmed that, due to its design and construction, and according to the CE mark printed by the manufacturer on it, the machine identified in this document complies with the relevant and fundamental requirements in health and safety.
- Page 30 16. PARTS...
