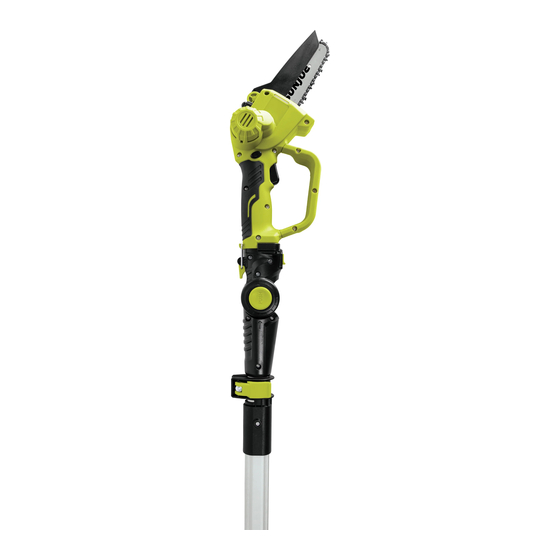

Cordless telescoping pole + pruning saw
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

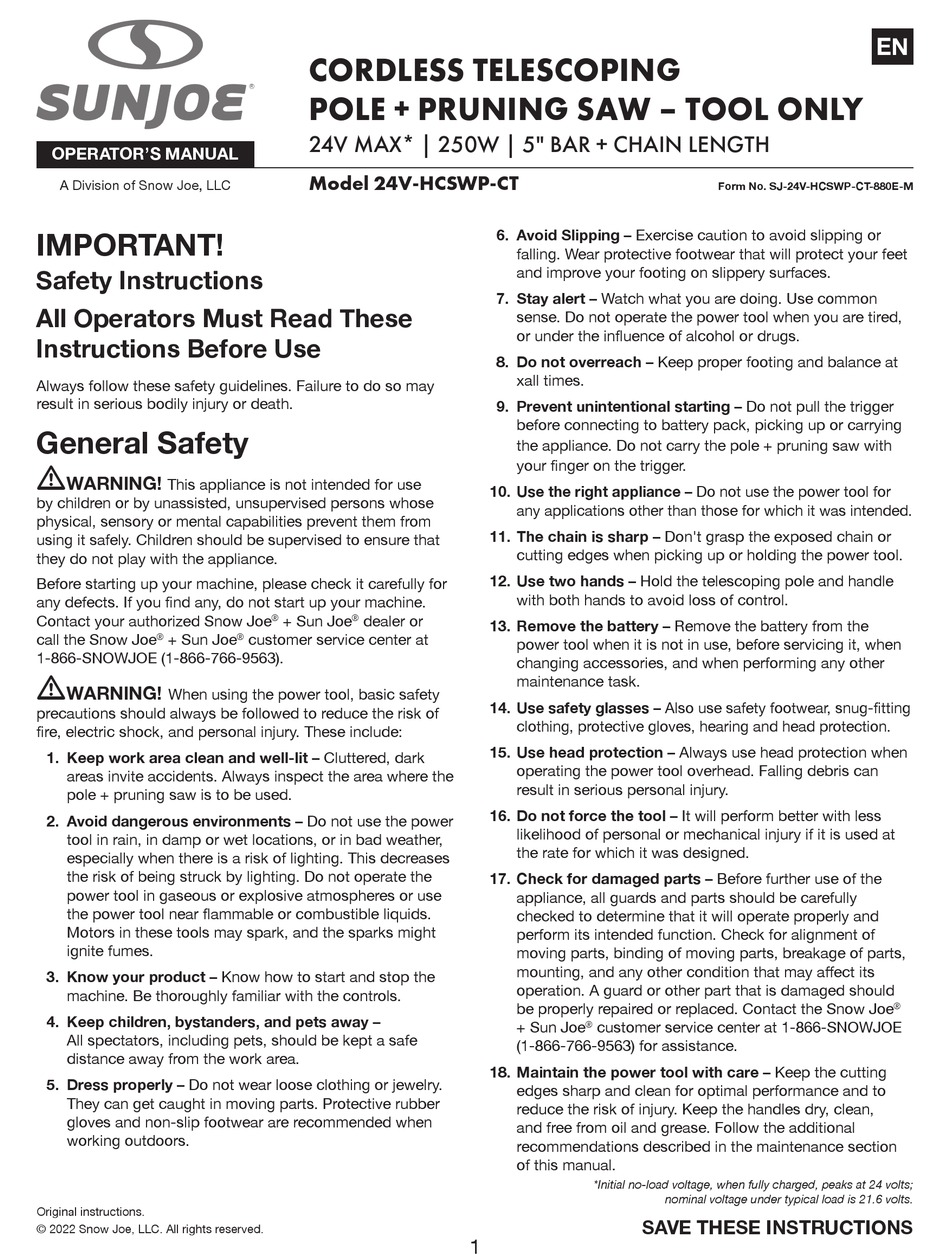

OPERATOR'S MANUAL
A Division of Snow Joe, LLC
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety
m
WARNING!
This appliance is not intended for use
by children or by unassisted, unsupervised persons whose
physical, sensory or mental capabilities prevent them from
using it safely. Children should be supervised to ensure that
they do not play with the appliance.
Before starting up your machine, please check it carefully for
any defects. If you find any, do not start up your machine.
Contact your authorized Snow Joe
call the Snow Joe
+ Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
m
WARNING!
When using the power tool, basic safety
precautions should always be followed to reduce the risk of
fire, electric shock, and personal injury. These include:
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents. Always inspect the area where the
pole + pruning saw is to be used.
2. Avoid dangerous environments – Do not use the power
tool in rain, in damp or wet locations, or in bad weather,
especially when there is a risk of lighting. This decreases
the risk of being struck by lighting. Do not operate the
power tool in gaseous or explosive atmospheres or use
the power tool near flammable or combustible liquids.
Motors in these tools may spark, and the sparks might
ignite fumes.
3. Know your product – Know how to start and stop the
machine. Be thoroughly familiar with the controls.
4. Keep children, bystanders, and pets away –
All spectators, including pets, should be kept a safe
distance away from the work area.
5. Dress properly – Do not wear loose clothing or jewelry.
They can get caught in moving parts. Protective rubber
gloves and non-slip footwear are recommended when
working outdoors.
Original instructions.
© 2022 Snow Joe, LLC. All rights reserved.
CORDLESS TELESCOPING
R
POLE + PRUNING SAW – TOOL ONLY
24V MAX* | 250W | 5" BAR + CHAIN LENGTH
Model 24V-HCSWP-CT
+ Sun Joe
dealer or
®
®
customer service center at
®
6. Avoid Slipping – Exercise caution to avoid slipping or
falling. Wear protective footwear that will protect your feet
and improve your footing on slippery surfaces.
7. Stay alert – Watch what you are doing. Use common
sense. Do not operate the power tool when you are tired,
or under the influence of alcohol or drugs.
8. Do not overreach – Keep proper footing and balance at
xall times.
9. Prevent unintentional starting – Do not pull the trigger
before connecting to battery pack, picking up or carrying
the appliance. Do not carry the pole + pruning saw with
your finger on the trigger.
10. Use the right appliance – Do not use the power tool for
any applications other than those for which it was intended.
11. The chain is sharp – Don't grasp the exposed chain or
cutting edges when picking up or holding the power tool.
12. Use two hands – Hold the telescoping pole and handle
with both hands to avoid loss of control.
13. Remove the battery – Remove the battery from the
power tool when it is not in use, before servicing it, when
changing accessories, and when performing any other
maintenance task.
14. Use safety glasses – Also use safety footwear, snug-fitting
clothing, protective gloves, hearing and head protection.
15. Use head protection – Always use head protection when
operating the power tool overhead. Falling debris can
result in serious personal injury.
16. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
17. Check for damaged parts – Before further use of the
appliance, all guards and parts should be carefully
checked to determine that it will operate properly and
perform its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other condition that may affect its
operation. A guard or other part that is damaged should
be properly repaired or replaced. Contact the Snow Joe
+ Sun Joe
customer service center at 1-866-SNOWJOE
®
(1-866-766-9563) for assistance.
18. Maintain the power tool with care – Keep the cutting
edges sharp and clean for optimal performance and to
reduce the risk of injury. Keep the handles dry, clean,
and free from oil and grease. Follow the additional
recommendations described in the maintenance section
of this manual.
*Initial no-load voltage, when fully charged, peaks at 24 volts;
SAVE THESE INSTRUCTIONS
1
Form No. SJ-24V-HCSWP-CT-880E-M
nominal voltage under typical load is 21.6 volts.
EN
®
