Summary of Contents for Arec KS-CC1

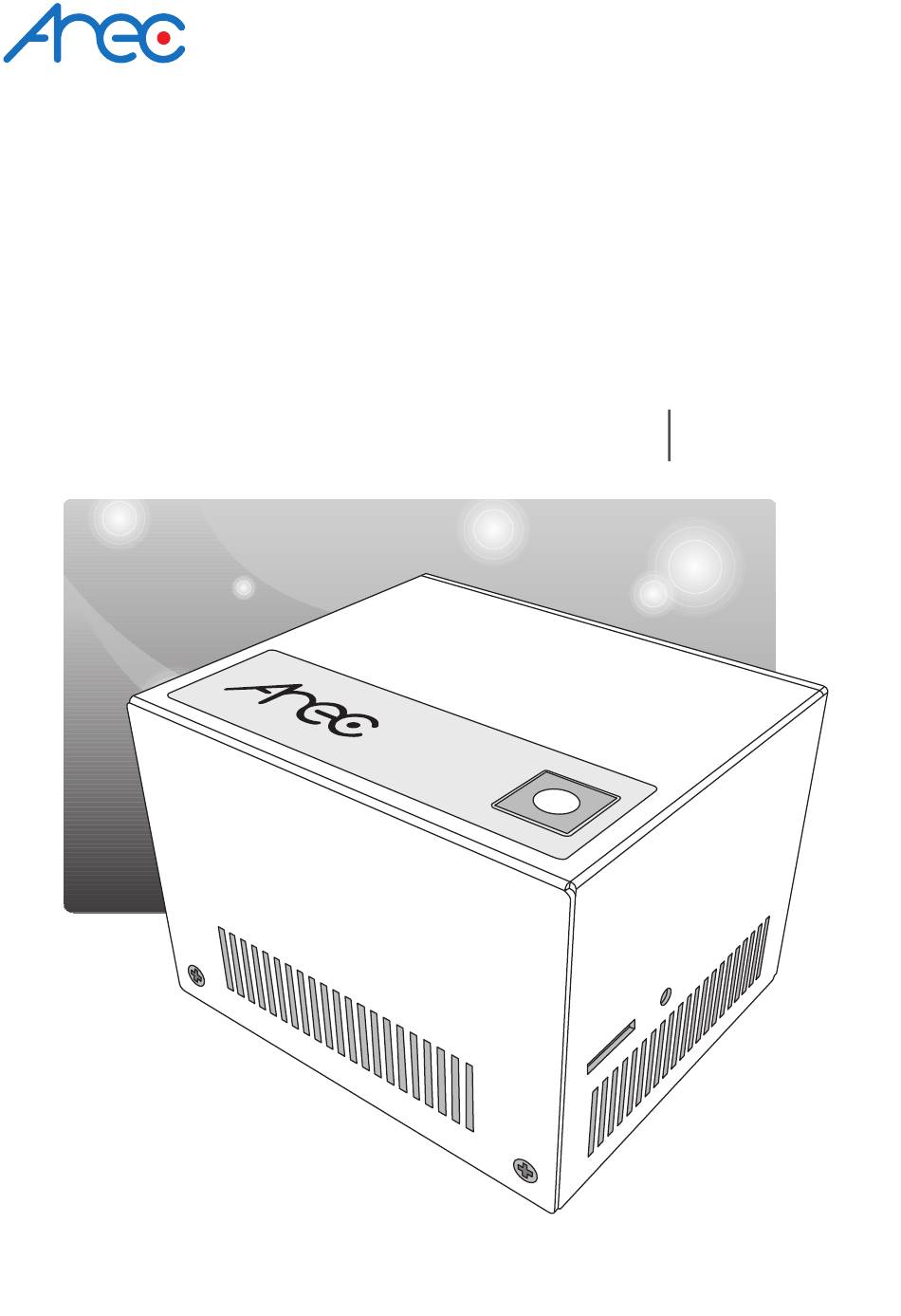

- Page 1 KS-CC1 Media Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2022. l www.arec.com All information contained in this document is Proprietary...
- Page 2 Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
- Page 3 KS-CC1 Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...
-
Page 4: Specifications
KS-CC1 Quick Installation Guide Introduction KS-CC1 can output instant transcription on monitors automatically in a speech event. It also can show the speech script or the translation on audience mobile device. Supporting recording, streaming, and exporting the transcription text file benefit the event host to provide various services for the attendees. -
Page 5: Product Appearance
When the device is OFF, push to turn ON. Reset button Long press to reset the device to default settings Power Indicator LED Indicator for device boot status NOTE: The KS-CC1 can detect and record to USB storage devices using FAT32, NTFS, exFAT, Ext3, Ext4 file systems. - Page 6 KS-CC1 Quick Installation Guide Connection microphone amplifier projector Mic audio input Line audio input HDMI video output notebook HDMI video input Micro SD card Power HDMI video output network AREC Network Camera USB mouse external hard disk Speakerphone notebook USB Keyboard...
-
Page 7: Getting Start
2. Go to the KS-CC1’s web page to set the video input • Open a browser and insert the KS-CC1’s IP address. The IP address can be found on the GUI menu shown on display that connected to the HDMI output port. - Page 8 KS-CC1 Quick Installation Guide 3. Configure your video source • HDMI & USB video source Please select “Video port” “Signal type”, and select the corresponding option in “Video source”. And click “Apply” to take effect. • Network camera a. First, go to the “Network device manager”...
- Page 9 Click “Apply” to take effect. • Audio Input KS-CC1 support multiple audio input types: Line-in/Mic-in/HDMI/USB audio input. Connect your audio input source to the KS-CC1 and go to web administrator → “Media I/O” “Audio” page to configure the volume level.
- Page 10 • Configure the live caption preview KS-CC1 provides a web page for the audience to view the subtitle in live. You can configure a QR code for the audiences to use their smartphone to scan and it will redirect them to the subtitle page.
- Page 11 • Subtitles web view page To connect the subtitle web view, you can insert the URL* directly or by scanning the QR code shown on the GUI display. *The subtitle URL is http://[KS-CC1 IP address]/subtitle. Night mode Day mode...
- Page 12 KS-CC1 Quick Installation Guide KS-CC1 快速安裝手冊 • Configure recording a. Insert a storage device (USB drive/Micro SD card) b. Go to the web administrator → “Storage” page. c. Find the storage device on the list and click “Format”. d. Select the storage in the “Record disk settings”...
- Page 13 KS-CC1 Quick Installation Guide CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Important Security Policy Precautions 1.Please open the product package carefully; we commend you keep this packaging for future transport, storage or maintenance use.
- Page 14 AREC Inc.© All Rights Reserved 2022. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Date : 2022.08.01 Version : 2.20...
