Summary of Contents for Arec DS-4CU

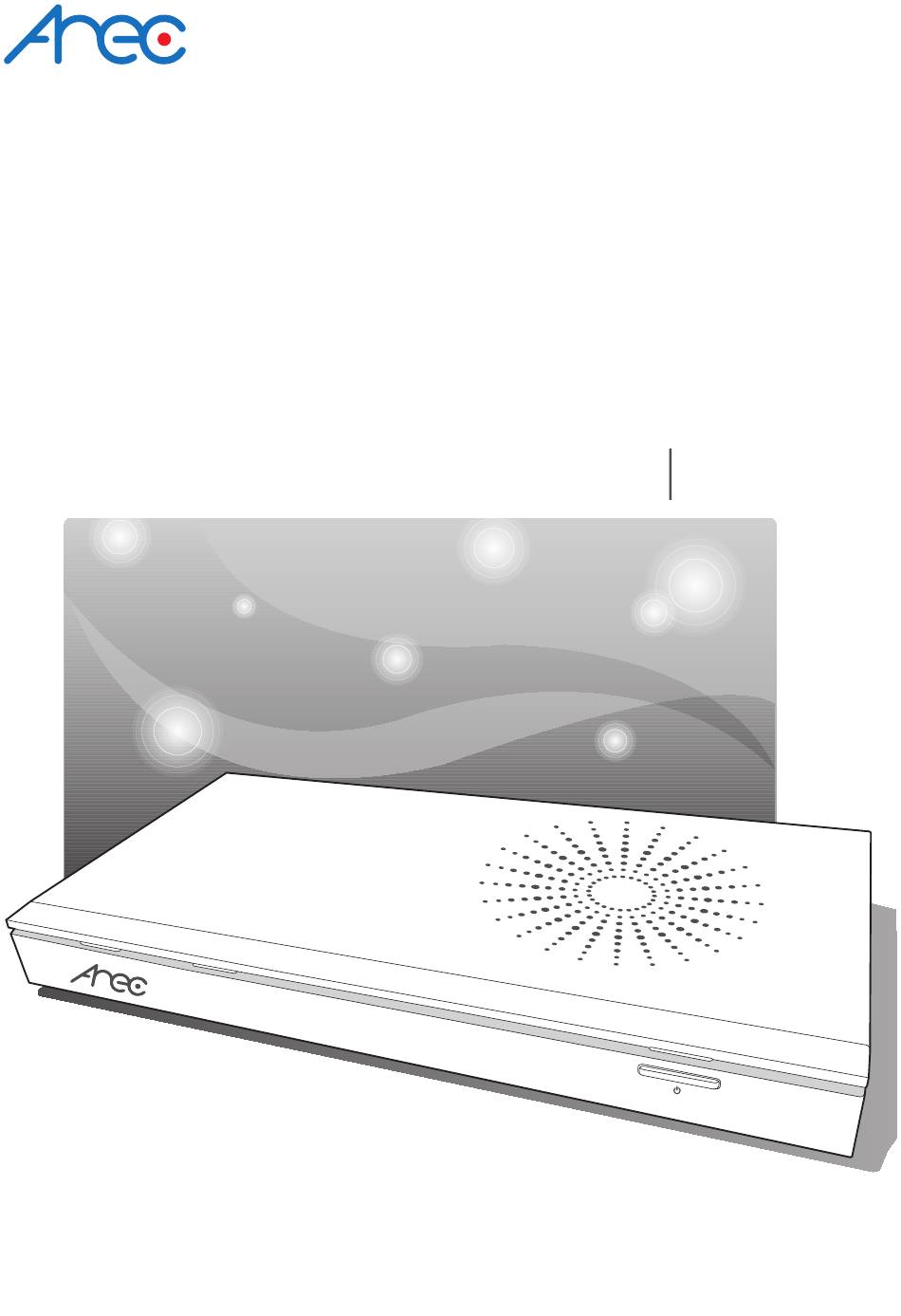

- Page 1 DS-4CU Speaker Tracking Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2020. l www.arec.com All information contained in this document is Proprietary...
- Page 2 Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
- Page 3 DS-4CU Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...
-
Page 4: Specifications
Compatible with recommended Conference Microphone System and AREC PTZ Cameras, AREC DS-4CU Speaker Tracking Station enables all of the meeting participants can see the close-up view of the active speaker and a custom graphic together on the local screen clearly. Working with AREC Media Station, all the meeting and discussing content can be recorded completely with auto tracking and auto switching features. -
Page 5: Product Appearance
DS-4CU Quick Installation Guide Product Appearance Front Panel Rear Panel 10 11 Name Brief introduction Power Power on/off the device Power port 12V/ 2A Video input VGA/ HDMI input source for PC [ Video input VGA/ HDMI input source for camera [... - Page 6 DS-4CU Quick Installation Guide Connection Setting PC Power projector AREC Network Camera Video output VGA / HDMI RS-232 Video input VGA / HDMI RS-232 network notebook document cam Mouse...
- Page 7 DS-4CU Quick Installation Guide Accessing the Administrator pages Connect PC to the setting port of Media Station with standard network cable.Open up the browser, and input 192.168.11.254 in the broswer page. Log in Administrator with default username admin and password admin, then entering System Administration webpages.
- Page 8 DS-4CU Quick Installation Guide The system automatically scans and lists the network cameras connected to the Media Station once entering the [ Network device manager ] page. You may click Refresh button to scan again. Click Login button and the login authentication dialog pop out.
- Page 9 DS-4CU Quick Installation Guide CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Important Security Policy Precautions 1.Please open the product package carefully; we commend you keep this packaging for future transport, storage or maintenance use.
- Page 10 AREC Inc.© All Rights Reserved 2020. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Date : 2020.1.1 Version : 6.0...
