Heat Shield
Quick user guide
INSTUM_01515
MW6175
upd. 11/07/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heat Shield and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LSI LASTEM Heat Shield

Summary of Contents for LSI LASTEM Heat Shield

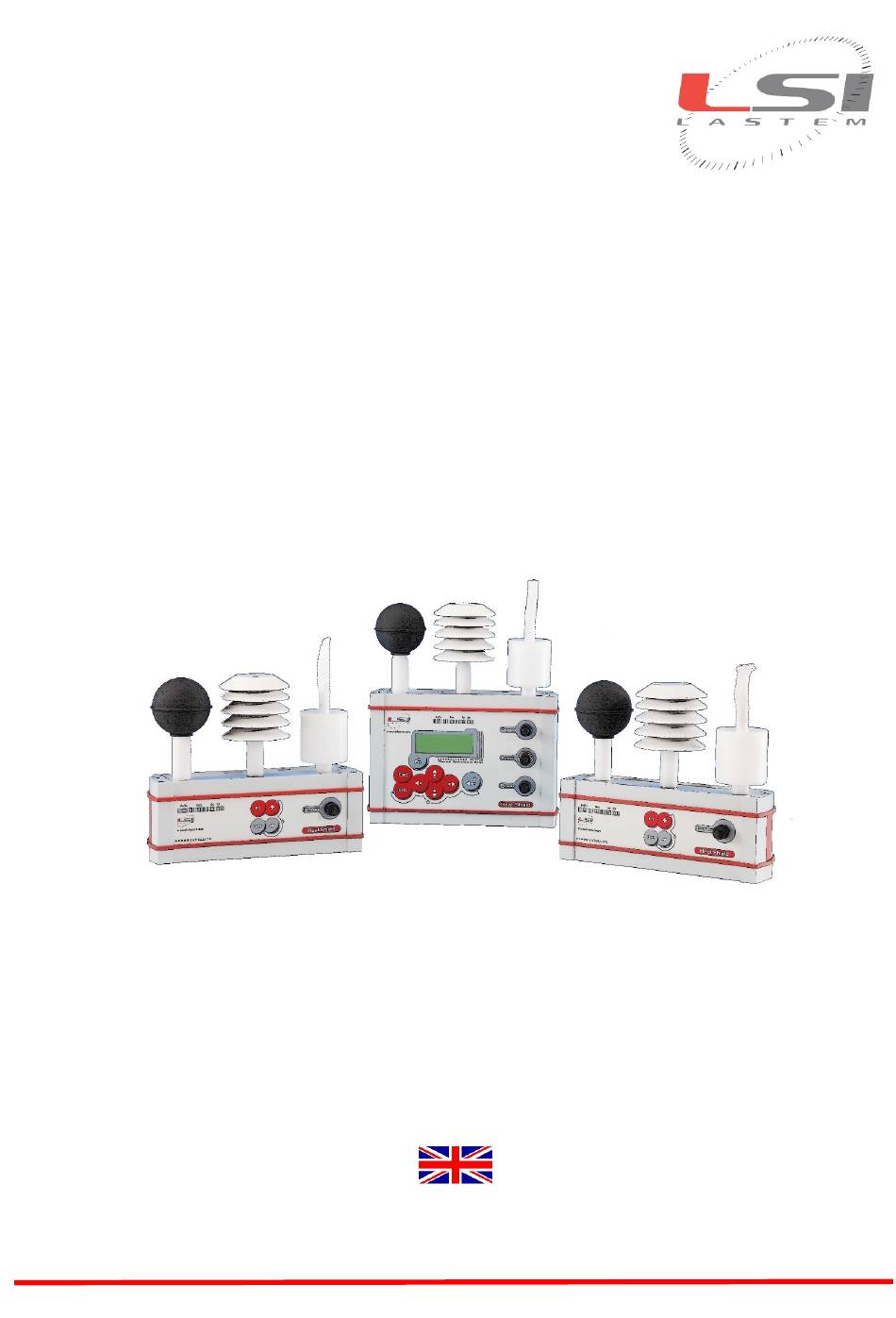

  • Page 1 Heat Shield Quick user guide INSTUM_01515 MW6175 upd. 11/07/2022...

  • Page 2: Instrument Description

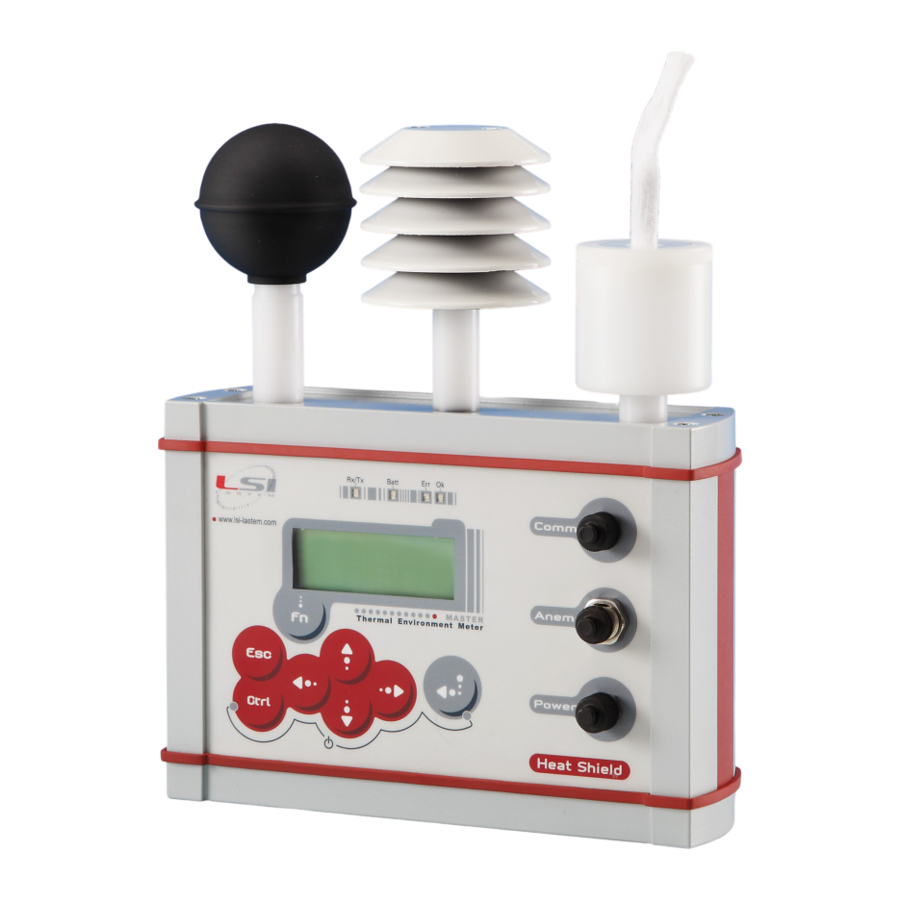

    INSTRUMENT DESCRIPTION (1) – LCD display 4x20 chrs. (2) – Keyboard (3) – Base mounting (4) – Tripod mounting (BVA325) (5) – Reset (6) – Power supply / battery charger (7) – Anemometer input (8) – RS-232 serial port (9) – Wet bulb temperature sensor (10) –...

  • Page 3: Switch On/Off

    Press to exit. Measurement display Heat Shield MASTER shows measurements and indexes from its sensors and, when con- nected, from SATELLITE units. moves to different group of measurements/indexes. The proper way to select a combination of buttons is to keep pressure over the “Ctrl” button first, then push&re-...

  • Page 4: Data Logging

    . Press to stop data logging. Status bar It contains some Heat Shield working information: where: a: storing in progress. nn: survey number. ss:mm: can have the following meanings: - on programmed survey, it is the time to reach the starting time of the survey (s=”-“).

  • Page 5: Change Parameters

    SETUP It is possible to change some factory setup parameters. Browsing Push to go on the MAIN menu. to scroll each in formation, and to enter; to return to previous selection, it goes to Measurements when pushed from MAIN menu. Change parameters Depending by the situation it is possible to change the parameters from a selectable list (exam- ple: language) or using the arrows (example: day/time).

  • Page 6: Getting Started

    (manually/selected day-time/after a period time). During survey all measurements are stored. 2. Nr survey: Heat Shield assign a progressive number to each survey. It is possible to change (1 ÷ 99) the first assigned number during measurement. 3. Mode: Heat Shield can perform measurement from the base unit only (WBGT1 amb), from MASTER unit plus one SATELLITE (WBGT 2 amb), from MASTER unit plus two SATEL- LITE units (WBGT 3 amb).

  • Page 7: Installation

    The software can be found on the MW6501 USB pen drive and on the website www.lsi- lastem.com. Run Setup and follow its instructions. During the first run, the program asks to install a new Heat Shield unit. 1. Connect Heat Shield MASTER to PC via RS- To detect the PC port where the USB 232 port (8) using its cable and USB adapter.
  • Page 8 EXAMPLES Fig. 1 - WBGT 1 environment measurement and index from MASTER unit only. Fig. 2 - WBGT environments: separate measurements and indexes from MASTER unit and one SATELLITE unit.
  • Page 9 Fig. 3 - Installation of the units in case of WBGT Subject. Fig. 4 - WBGT subject: measurements Fig. 5 - Usage of WBGT 1 env. with and indexes averages from the MAS- cup anemometer. TER and 2 SATELLITE units Fig.

  • Page 10: Video Tutorials

    Heat Shield operating #3-HeatShield Operating - YouTube NOTES This manual is an introduction to the use of Heat Shield. For more information refer to the IN- STUM_01517 User’s guide downloaded from the website www.lsi-lastem.com. Disposal Heat Shield is a highly electronic scientific device. In accordance with the standards of environ- mental protection and collection, LSI LASTEM advises to handle Heat Shield as waste of elec- trical and electronic equipment (WEEE).
  • Page 12 www.lsi-lastem.com...
