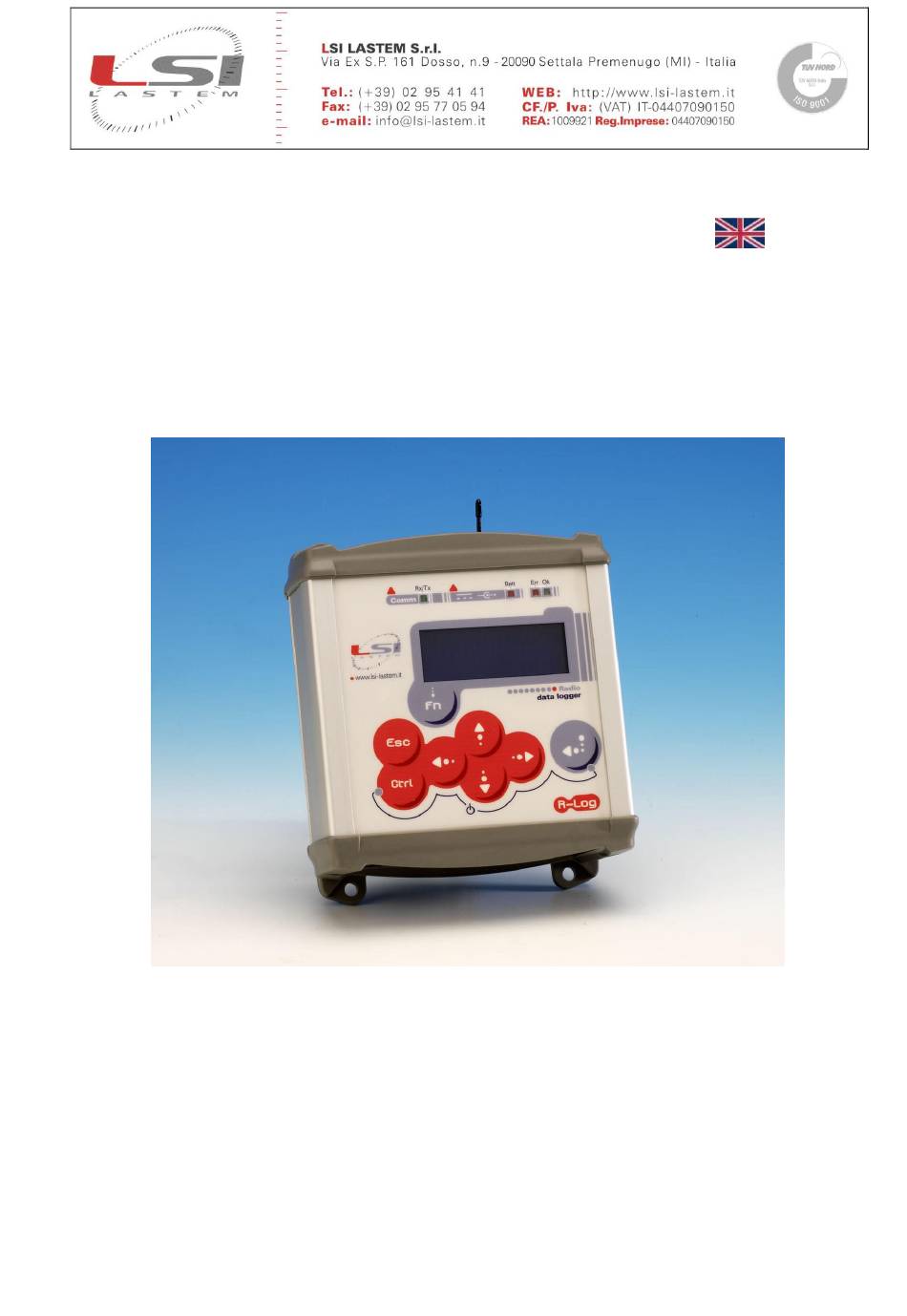

- Page 1 Cod. MW6165 R-Log Quick Start Update 01/25/2016...
-
Page 2: Table Of Contents
This manual can be modified without notice. Anybody can copy, print or publish this manual without LSI LASTEM written authorization. LSI LASTEM reserves the right to modify the product without an immediate revision of this document. Cod. INSTUM_00953 Pag. 2... -
Page 3: Introduction
Ethernet/RS232 converters etc.) or where the implementation of actuation logics or the setup of calculated measurements is requested, please refer to the R-Log and 3DOM software User Manuals, that are included in the MW6501 - LSI LASTEM Products DVD in the Manuals – DOCUMENTS section. -
Page 4: Cod. Instum_00953 Pag
R-Log – Quick Start Legenda: ________: cable connection; _ _ _ _ _ _: radio connection. Fig. 1 – A-type installation. Fig. 2 – B- type installation. Fig. 3 – C-type installation. Cod. INSTUM_00953 Pag. 4... - Page 5 R-Log – Quick Start For A-type installation: only one 16M R-Log (ELR515M or ELR5 models) Installation of 3DOM software on PC; Datalogger configuration with 3DOM software; Creation of a Configuration Report; Connection of the probes to the datalogger; ...
-
Page 6: Installing The Software On Your Pc
Through 3DOM software, you can perform the instrument configuration, change the system date/time and download stored data by saving them in one or more formats. At the end of the installation procedure, start 3DOM program from LSI LASTEM programs list. The aspect of the main window is as below:... -
Page 7: Datalogger Configuration
R-Log – Quick Start 3DOM program uses the Italian language in case of Italian version of the operating system; in case of a different language of the operating system, the program 3DOM uses the English language. To force the use of the Italian or the English language, whatever may be the language used by the operating system, the file “C:\Programmi\LSILastem\3DOM\bin\3Dom.exe.config”... -
Page 8: Auto- Recognition Of The Connected Probes
Adding the new instrument to 3DOM program Connect your PC to serial port 1 through the supplied ELA105 serial cable. Start 3DOM program from the LSI LASTEM programs list, select Instrument-> New…and follow the guided procedure. Set as communication parameters: Cod. -
Page 9: Checking The Instrument Internal Clock
R-Log – Quick Start Type of communication: Serial; Serial port: <indicate the PC port connected with ELA105 serial cable >; Bps speed: 57600; Once the instrument has been recognized, additional data can be entered, such as User-defined name and Description. - Page 10 It is recommended to create a new configuration starting from the basic one or from one of the available models. In the first case, proceed as follows: Start the 3DOM program from the LSI LASTEM program list; Select your instrument serial number in the Instruments panel;...
- Page 11 (selecting it among the available ones) and enters the measures in the Measures List Panel. On the contrary, if the sensor is not LSI LASTEM or doesn’t appear in the 3DOM sensors registry, or you want to connect it to the datalogger in single ended mode (in this case refer to the instrument user manual), press the New button to add a measure, entering all the parameters requested by the program (name, measure unit, elaborations etc.).
- Page 12 R-Log – Quick Start Besides, if a measure is used by a derived quantity, the icon changes: The measures order can be changed according to your requirements by pressing the Sort button. It is however advisable to keep coupled the quantities that need to be acquired together (for ex.: wind speed and direction) and give priority to the measures with a fast acquisition rate, moving them on top of the list.
- Page 13 R-Log – Quick Start To access radio communication parameters, proceed as follows: select Serial Communication Port 2 in General Parameters section; select Instrument Network Address and enter an unequivocal value higher than 10, since lower values have already been assigned to Master and S-Log devices; ...
-
Page 14: Creating A Configuration Report
If some measures have no connection assigned, a possible cause could be that the measure was created without using the LSI LASTEM sensors registry. It is recommended to print the document in order to be able to use it later when connecting the probes to the datalogger. - Page 15 R-Log – Quick Start Digital Signal input 15 or 16 Frequency signal from optoelectronic Digital status (on/off) Digital status of frequency signal probe Sensors with digital signal 4 wires resistance 2 wires resistance Thermocouple Voltage signal from 4 wires Voltage signal from 3 wires Voltage signal from externally sensor powered (fixed or sensor powered (fixed or...
-
Page 16: Displaying Measures In Fast Acquisition Mode
NOTE The voltage drop resistance indicated by Rx is used to report a voltage signal from the sensor-generated current. 3DOM program provides a list of settings for LSI LASTEM sensors, including some models with current output; for these models, always use voltage drop resistances of 50 Ω to obtain voltage signals up to 1 V. -
Page 17: Elaborated Data Storage Options
4.2. Saving data on a Gidas database Note To store data on LSI LASTEM Gidas database for SQL Server 2005, you need to install the GidasViewer program: it provides for the installation of the database and requests the activation license for each instrument. Gidas database needs a SQL Server 2005 installed in the PC: if the user hasn’t got this program installed, the free “Express”... - Page 18 R-Log – Quick Start To enable storage, select Check to activate data storage control box. The list shows the current connection status. This can be changed by pressing the Select key that opens the configuration window for connection to Gidas database: Cod.
- Page 19 R-Log – Quick Start This window displays the Gidas data source in use and allows its change. To change the data source used by the program, select an item from the list of the available data sources or add a new one by pressing Add;...
-
Page 20: Receiving Elaborated Data
R-Log – Quick Start 5. Receiving elaborated data To receive the elaborated data from 3DOM, select the Communication-> Elaborated Data… menu or press the Elab. Values button on the instrument bar of Instrument or the Elaborated Data… contextual menu of the instrument. If the program succeeds in establishing a communication with the selected instrument, the Download button is enabled;... - Page 21 R-Log – Quick Start To display data, proceed as follows: Expand the branch corresponding to the instrument serial number that appears in the Data Browser; Select the identified acquisition with the starting date/time of measurements; Press the selected acquisition with the right key of your mouse and choose Show Data (for the wind direction measurement, select Show Wind Rose Data or Show Weibull Wind Rose Distribution);...
-
Page 22: Cod. Instum_00953 Pag
R-Log – Quick Start To display the chart select Show Chart on the table with the right key of your mouse. Enjoy your R-Log Cod. INSTUM_00953 Pag. 22...
