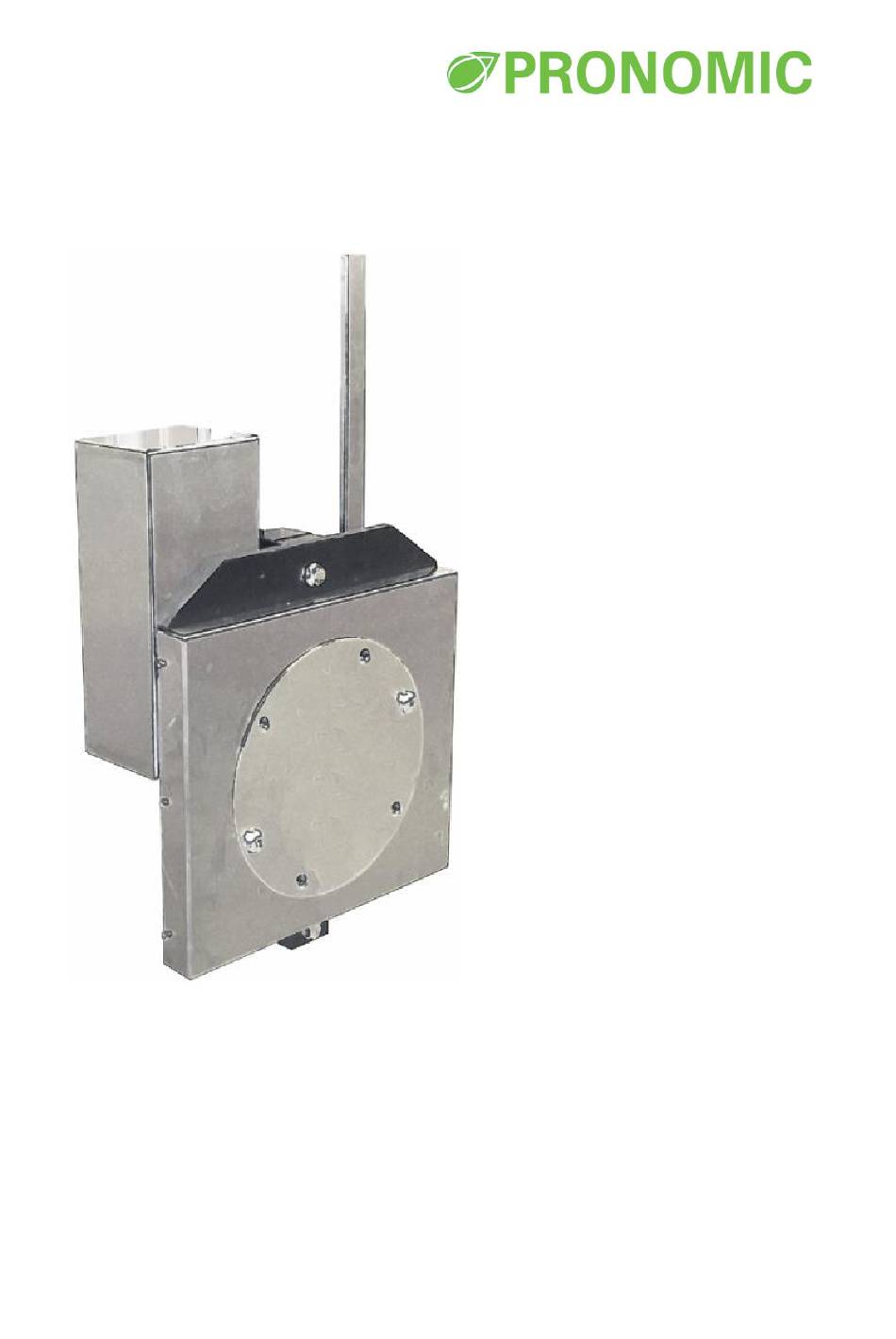

- Page 1 Complete Turn Device Model 19470 Also for 19471, 19474, 19475, 19480 User’s manual Original instructions...
- Page 2 It is important that you read and understand this manual before the attachment is used. Questions? – Contact your supplier or the manufacturer. Pronomic AB Visiting address: Postal address: Bäckvägen 18 Box 5504 192 54 Sollentuna 192 05 Sollentuna Sweden Sweden www.pronomic.se...
-
Page 3: Table Of Contents
Contents Description of the attachment Expand&Turn ..............1 Warranty ............................1 Assembly ..........................2 Mounting the turn plate on the 90/130P trolley ................ 2 Mounting the turn plate on the 175/225P trolley ..............2 Disassembly ..........................3 Use ............................. 3 Operating instructions ......................... -
Page 4: Description Of The Attachment Expand&Turn
1 Description of the attachment Turn The Turn device is ergonomically designed for maximum handling safety. Before using Turn, the manual must be read and understood in order to guide you to operate the device in a correct and safe way. In order to operate the complete device, i. -
Page 5: Assembly
2 Assembly When mounting the attachment, protective shoes should be worn, as the parts can cause injury if dropped. 2.1 Mounting the turn plate on the 90/130P trolley 1. Undo the screws in the slide that are provided to hold the end effector. Fit the turn plate with the screws into the slide of the column. -
Page 6: Disassembly
2.3 Disassembly To disassemble the turn plate, proceed as in sub-section .1.1 Mounting the turn plate on the 90/130P trolley, but in the reverse order. 3 Use 3.1 Operating instructions The turn plate functions are controlled from the motor control box. The motor control box functions vary depending of the end effectors used together with the turn plate. -
Page 7: Every Day
The Turn device is designed for safe and effective operation on condition that the routine maintenance is looked after in accordance with instructions. Should any problem arise, advice on what to do is to be found in the trouble-shooting list below. If the problem persists after this, contact a serviceman or Pronomic AB. - Page 8 Symptom To do 1 Motor does not turn at all A Check the battery voltage which should be 24 volt. B Make sure the connections with motor are intact. C Make sure the connections from the power pack to the motor control box are intact.
-
Page 9: Technical Data
6 Technical data Type: Complete turn devices 19470-19480 Turn 19400, 19401, 1940 Outer dimensions LxWxH 34x1 16x361 Rotation angle Dimension from floor to rotation center point: Lift & Drive 90P/130P 305 mm Lift & Drive 175/225P 300 mm Turning speed w/o load... -
Page 10: Max Torque
6.1 Max torque 6.2 Time for 90 degree turn Table on turning speed... -
Page 11: Approved Attachments For Lift&Drive Trolleys
7 Approved attachments for Lift&Drive trolleys Complete Turn Devices 19470-19480 15012 15013 15014 15015 15016 15017 15018 15019 15024 15080 15322 15324 15338 15370-15372 16020 16038 16338 16041-16044 16048-16049 17182 17231 17241 17710 17720 17730 17740 17940 17972 17980 19511... -
Page 12: Drawings
8 Drawings 8.1 Overview... -
Page 13: Dimensions
8.2 Dimensions... -
Page 14: Ec Declaration Of Conformity For Partial Machinery
Manufacturer Pronomic AB Box 5504 192 05 Sollentuna Model Turn unit 19470/ 19471/ 19474/ 19475/ 19480 Authorized to compile the Samuel Pierre, Pronomic AB, BOX 5504, 192 05 Sollentuna, Sweden technical file Applied directives: 2006/42/EC Machinery directive 2014/30/EU EMC directive Applied standards: Safety of machinery –... - Page 15 Turn Unit 19470 19471 19474 19475 19480 ………………………………………………………………………………………………………….………………………………………………… Serial number ………………………………………………………………………………………… Signature, Inspector ………………………………………………………………………………………… Place, date Pronomic AB – SWEDEN Box 5504 192 05 Sollentuna...
- Page 16 Distributed by:...
