Summary of Contents for Pronomic Squeeze&Turn 19472

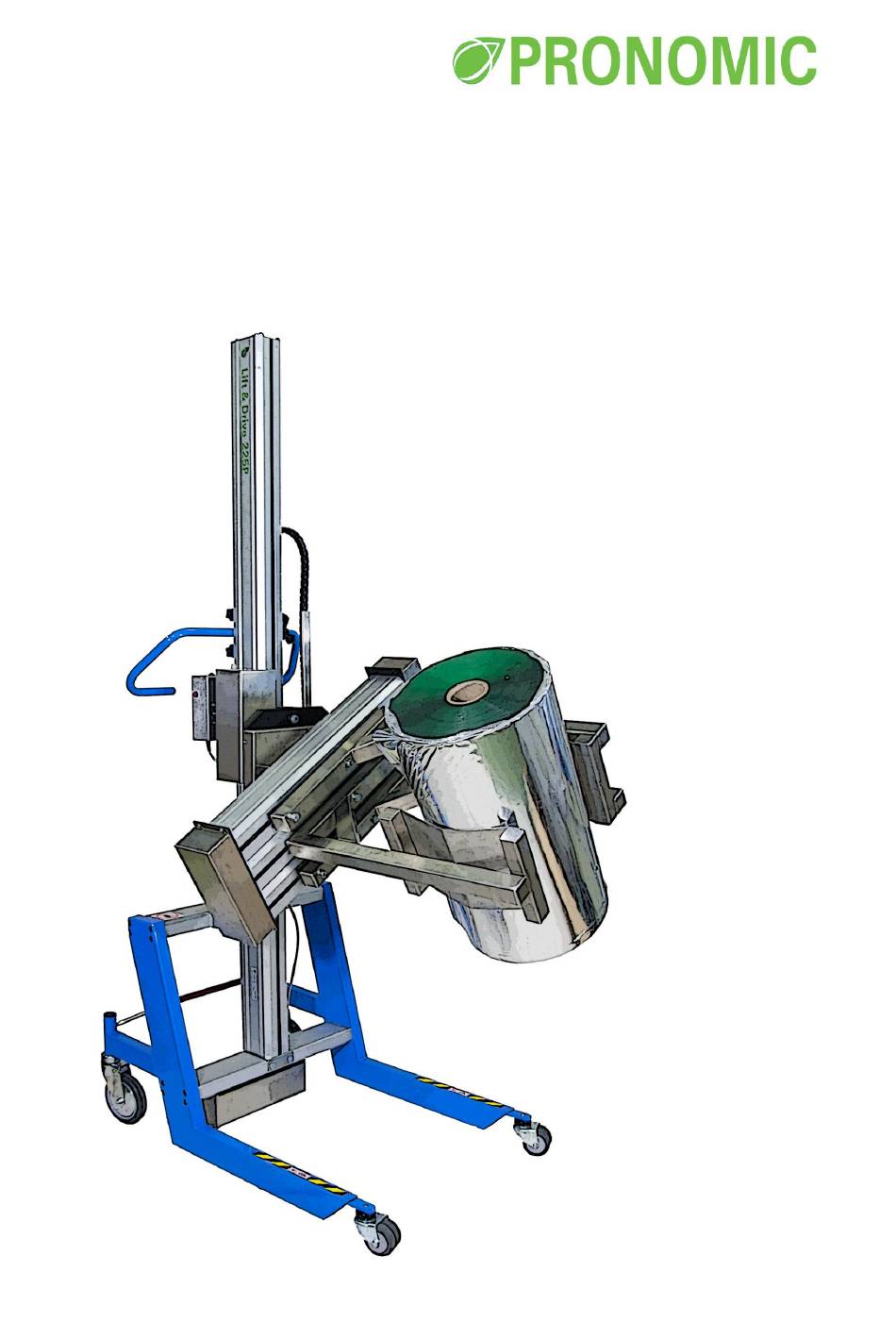

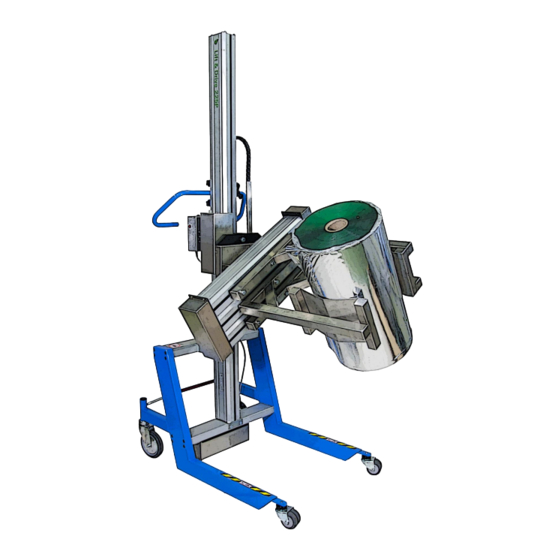

- Page 1 Squeeze&Turn Model 19472 Also for: 19473, 19476, 19477, 19478 User’s manual Original instructions...
- Page 2 It is important that you read and understand this manual before the attachment is used. Questions? – Contact your supplier or the manufacturer. Pronomic AB Street address: Postal address: Domherrevägen 15 Box 5504 192 55 Sollentuna 192 05 Sollentuna Phone: 08-544 706 60 Fax: 08-544 706 70 E-mail: info@pronomic.se...
-
Page 3: Table Of Contents
Table of Contents Description of the attachment Squeeze&Turn ..............4 Warranty ............................4 Assembly ..........................5 Disassembly and scrapping ......................5 Use ............................. 5 Rotate ............................5 Grip and lift ..........................5 Moving the load ........................... 5 Release ............................6 Adjustment of the squeeze arms .................... -
Page 4: Description Of The Attachment Squeeze&Turn
The max load is determined by the model of the trolley and the dimensions of the load. See chapter 6 “Technical data” for more information regarding loads. The attachments are only intended to be used with Pronomic AB’s Lift&Drive lift trolleys. They are only to be used indoors in well-lit environments on level floors. -
Page 5: Assembly
When mounting the attachment, protective shoes should be worn, as the parts can cause injury if dropped. 2.1 Disassembly and scrapping When scrapping the attachment and control box should be sent to a recycling center or Pronomic to guarantee recycling and safe handling of all the consisting parts of the tool. 3 Use It is important for you to read and understand this manual before you begin using your attachment. -
Page 6: Release
3.4 Release Lower the load until it rest upon the drop-off surface. To release the load press the release button and the inhibit button at the same time. Hold until the load is properly released. The figure below is showing the control box and the different functions. Release and inhibit. -
Page 7: Adjustment Of The Squeeze Arms
3.5 Adjustment of the squeeze arms The squeeze arms are adjustable in both length and height to cover a larger range of roll sizes. The image below illustrates all adjustments available for the squeeze arms. 60kg Squeeze&Turn (Arms 19421) and 110kg Squeeze&Turn (arms 19423). ________________________________________________________________________________ 7 –... -
Page 8: Safety
4 Safety The operator should use the personal safety equipment (e.g. protective shoes) that handling the specific goods requires. Stated maximum load must not be exceeded. Be aware of the risk of crushing present between the attachment and the trolleys legs or the floor when raising or lowering the load. -
Page 9: Maintenance
5 Maintenance 5.1 Every day T Wipe the attachment clean if it is dirty. Do not use water or pressure washers. 5.2 Every month, or as needed Make sure the unit sounds normal when rotating and gripping. Check that the bolts holding the attachment to the mast are correctly tightened. Check the squeeze arms for any signs of deformation or cracks to the welds. -
Page 10: Troubleshooting
Turn unit sounds bad A Se chapter maintenance when rotating Other troubles – see the manual for your Lift&Drive trolley. Contact your dealer or Pronomic AB if the faults cannot be solved using these instructions. ________________________________________________________________________________ 10 – Squeeze&Turn 19472-19479... -
Page 11: Technical Data
6 Technical data Model designation: Squeeze&Turn Rotate angle: ∞ Speed: (see diagram page 13) Max vridmoment (see diagram page 13) Standard models: 19473 19477 Minimum roll diameter 74 mm 162 mm Maximum roll diameter 640 mm 680 mm MAX-load 60 kg 110 kg Weight 43 kg... -
Page 12: Approved Attachments For Lift&Drive Trolleys
7 Approved attachments for Lift&Drive trolleys 15012 15013 15014 15015 15016 15017 15018 15019 15024 15080 15322 15324 15338 15339 15370-15372 16020 16038 16338 17182B 17229 17230 17230A 17233 17241 17710 17720 17730 17740 17940 17950 17971 17972 17980 19174 19201 19271 19285... -
Page 13: Drawings
8 Drawings 8.1 19473 Squeeze & Turn, 60 kg, standard arms ________________________________________________________________________________ 13 – Squeeze&Turn 19472-19479... -
Page 14: 19477 Squeeze & Turn, 110 Kg, Standard Arms
8.2 19477 Squeeze & Turn, 110 kg, standard arms ________________________________________________________________________________ 14 – Squeeze&Turn 19472-19479... -
Page 15: 19479 Squeeze&Turn, 110 Kg, Double Standard Arms
8.3 19479 Squeeze&Turn, 110 kg, double standard arms ________________________________________________________________________________ 15 – Squeeze&Turn 19472-19479... -
Page 16: Torque And Speed
8.4 Torque and speed ________________________________________________________________________________ 16 – Squeeze&Turn 19472-19479... - Page 17 ________________________________________________________________________________ 17 – Squeeze&Turn 19472-19479...
- Page 18 ________________________________________________________________________________ 18 – Squeeze&Turn 19472-19479...
-
Page 19: Declaration Of Incorporation Of Partly Completed Machine
❑ 19473 ❑19476 ❑19477 ❑19478 ❑19479 Model designation Serial number Authorized to compile the Samuel Pierre, Pronomic AB, BOX 5504, 192 05 Sollentuna technical file Applied EC directives: 2006/42/EC Machinery Directive 2014/30/EU EMC Directive Applied standards: Safety of machinery - General principles for design – Risk assessment and risk... - Page 20 Distributed by:...
