Examples of arrangement of air heating units mounted on a wall, seen from above

INSTALLATION WITH AN ASSEMBLY BRACKET

The assembly bracket is delivered with the unit but installation with a bracket is optional.

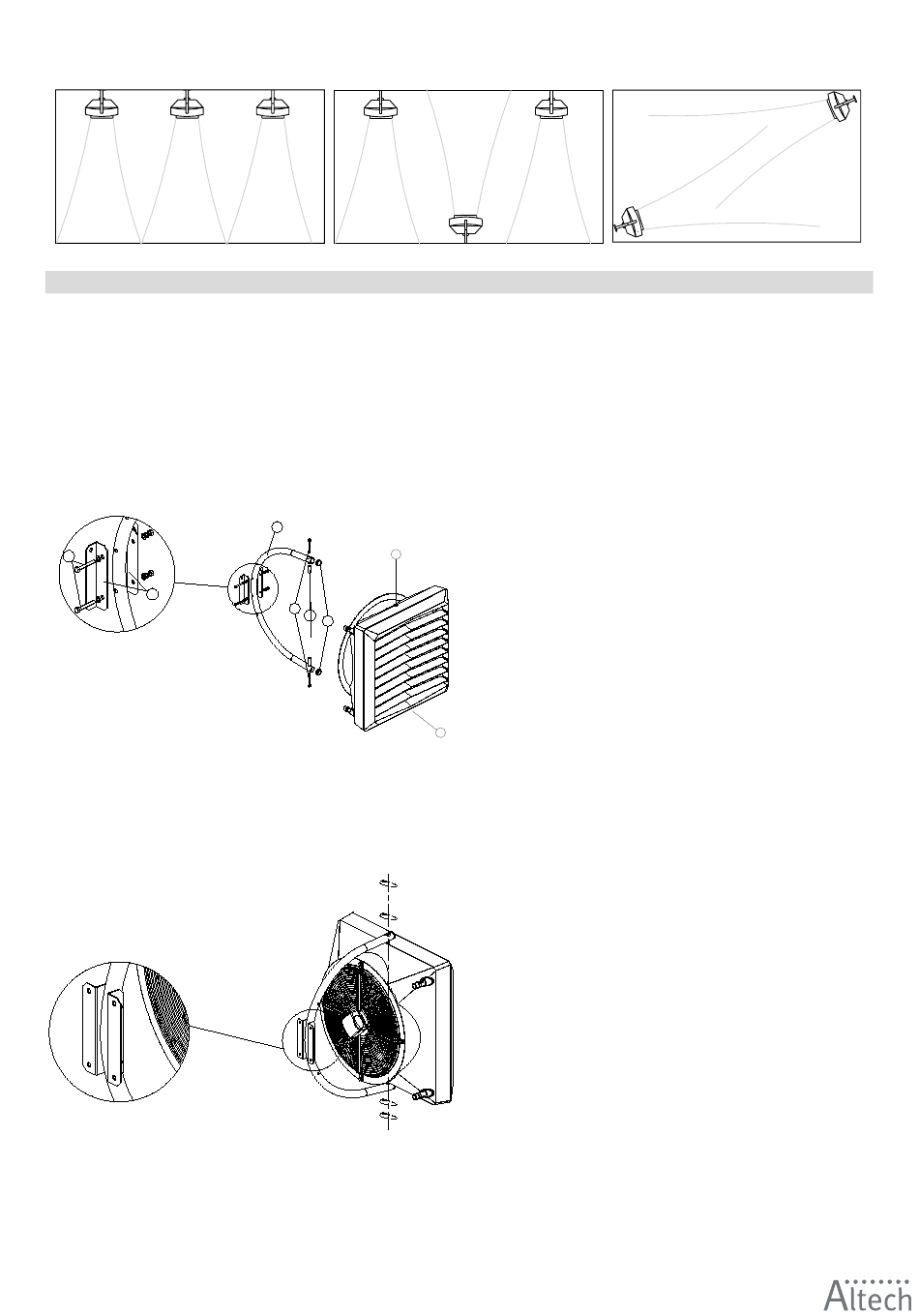

1. In order to attach the assembly bracket to the device, drill holes in the top and bottom panels of the heating unit (in
places marked by A). Use a drill with minimum dimension of 12 mm.
2. Insert sleeves into the holes.
3. Slide holder arms onto the sleeves.
4. Insert M10 screws into the top and bottom sleeves.
5. Fix the assembly bracket position in relation to the heater.
6. Tighten the screws.
7. Fit plugs onto the assembly bracket.
3
2
Rotation of the device when mounted with an assembly bracket
1
A
4
6
5
A
120 °
The bracket consists of:
1. Arm (1 piece)
2. Holder
3. M10 screw with a washer and nut fastening the clamp
(2 sets)
4. M10 screw fastening the holder to the unit heater
(2 pieces)
5. Plug (2 pieces)
6. Mounting sleeve (2 pieces)
