JIMS 5803 Instruction Sheet

No.5803-IS

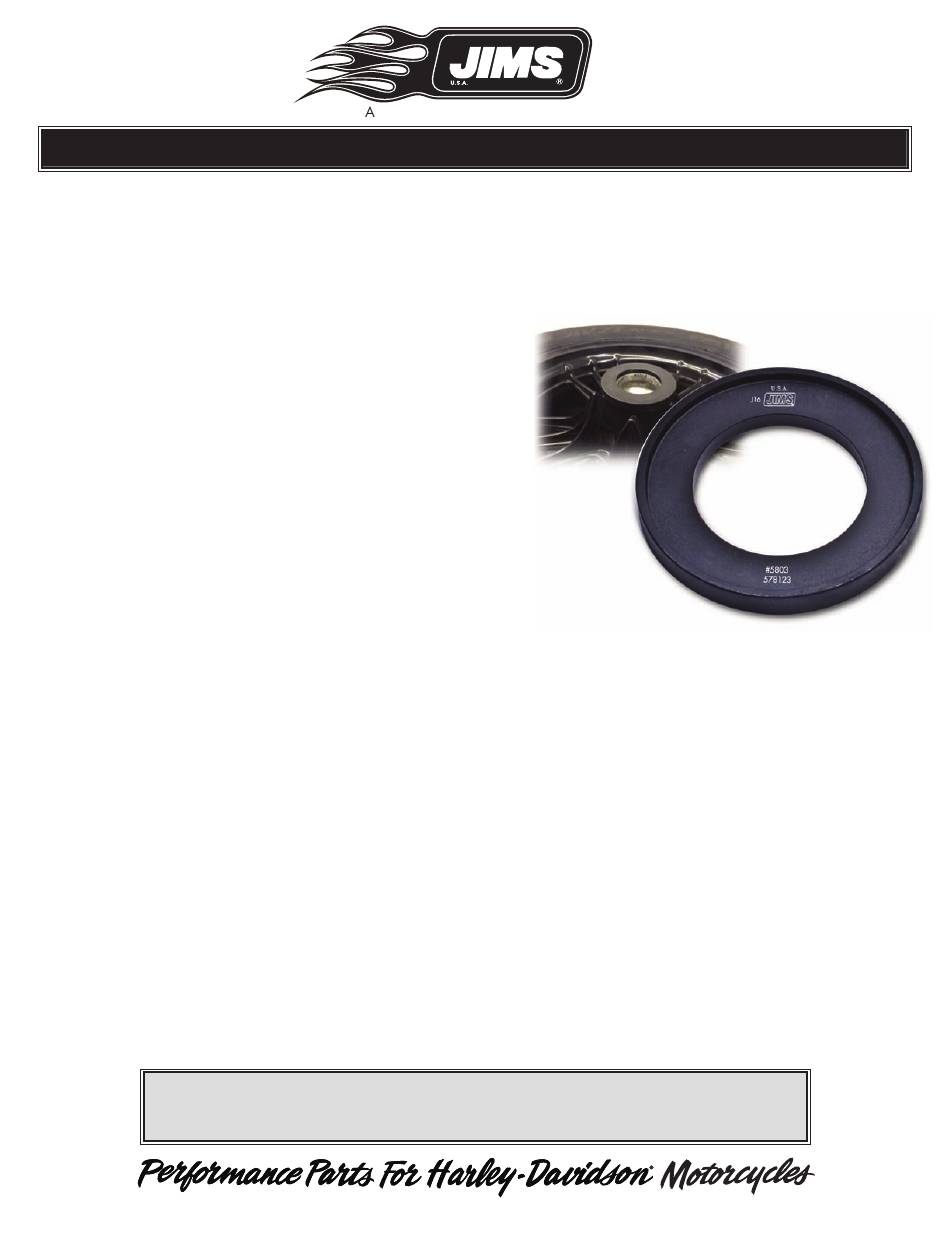

I I n n s s t t r r u u c c t t i i o o n n S S h h e e e e t t F F o o r r T T o o o o l l N N o o . . 5 5 8 8 0 0 3 3
H H u u b b P P r r o o t t e e c c t t o o r r f f o o r r S S e e a a l l e e d d W W h h e e e e l l B B e e a a r r i i n n g g
Use with JIMS No. 939 Wheel Bearing Removal / Installation Tool and most H-D, Indian, or Victory OEM wheel
bearing service tools on 2015-present Indian Scout and 2017-
present Victory Octane.

RECOMMENDED TOOLS AND SUPPLIES

• JIMS No. 939 Wheel Bearing R&I Tool or OEM tool
• Service Manual for year and model bike being serviced
• New wheel bearings and seals
• 11/16" wrench / socket
• 5/8" open end wrench
• Torque wrench
• ¾" box wrench & socket
• 3/8" hex "Allen" wrench
• 1-1/8" open end wrench
• Heat gun
• Lubricant
• Ratchet
Note:
Please read all instructions completely before performing
any work! If you do not know what you are doing, do not do it!
No information in this instruction sheet pertaining to motorcycle repair is foolproof or even altogether safe. Even
something safe, done incorrectly or incompletely can and will backfire. You and only you are responsible for the
safety of your repair work and for understanding the application and use of repair equipment, components, meth-
ods, and concepts. Each and every step this tool is designed to do must be carefully and systematically performed
safely by you. All information listed in this instruction sheet has been tested, re-tested and used daily in JIMS
Research and Development Department.
Always wear safety glasses, or other face and eye protection such as a full face shield. JIMS is not responsible for
damage, injury, or your work. JIMS IS NOT RESPONSIBLE FOR THE QUALITY AND SAFETY OF YOUR WORK!

FRONT WHEEL INSTRUCTIONS

1.
Remove front wheel following service manual.
2.
Remove brake disk.
3.
Carefully remove wheel seals using a suitable seal removal tool.
4.
Place wheel assembly on workbench protected by a rubber mat brake rotor side down.
5. 5803-1
Place No.
6.
Align hub protector to bearing bore for bearing clearance. Insert wheel bearing puller bridge and puller screw
5803-1
through No.
See JIMS
555 Dawson Drive, Camarillo, CA 93012 Phone 805-482-6913 • Fax 805-482-9224
Division of Thiessen Products, Inc.
R R e e m m o o v v a a l l / / I I n n s s t t a a l l l l a a t t i i o o n n T T o o o o l l
on hub with flat side facing up, see attached photo.
and into wheel bearing.
CAUTION: Wear safety glasses over your eyes.
®
catalog for Hundreds of top quality professional tools.
The last tools you will ever need to buy.
Visit us on the web at WWW.JIMSUSA.COM
Rev O
3-16
