Summary of Contents for F.u.n.k.e. ATR833-II-BOX

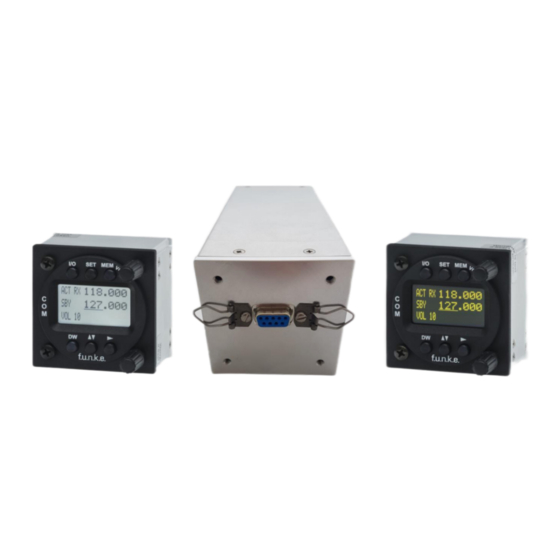

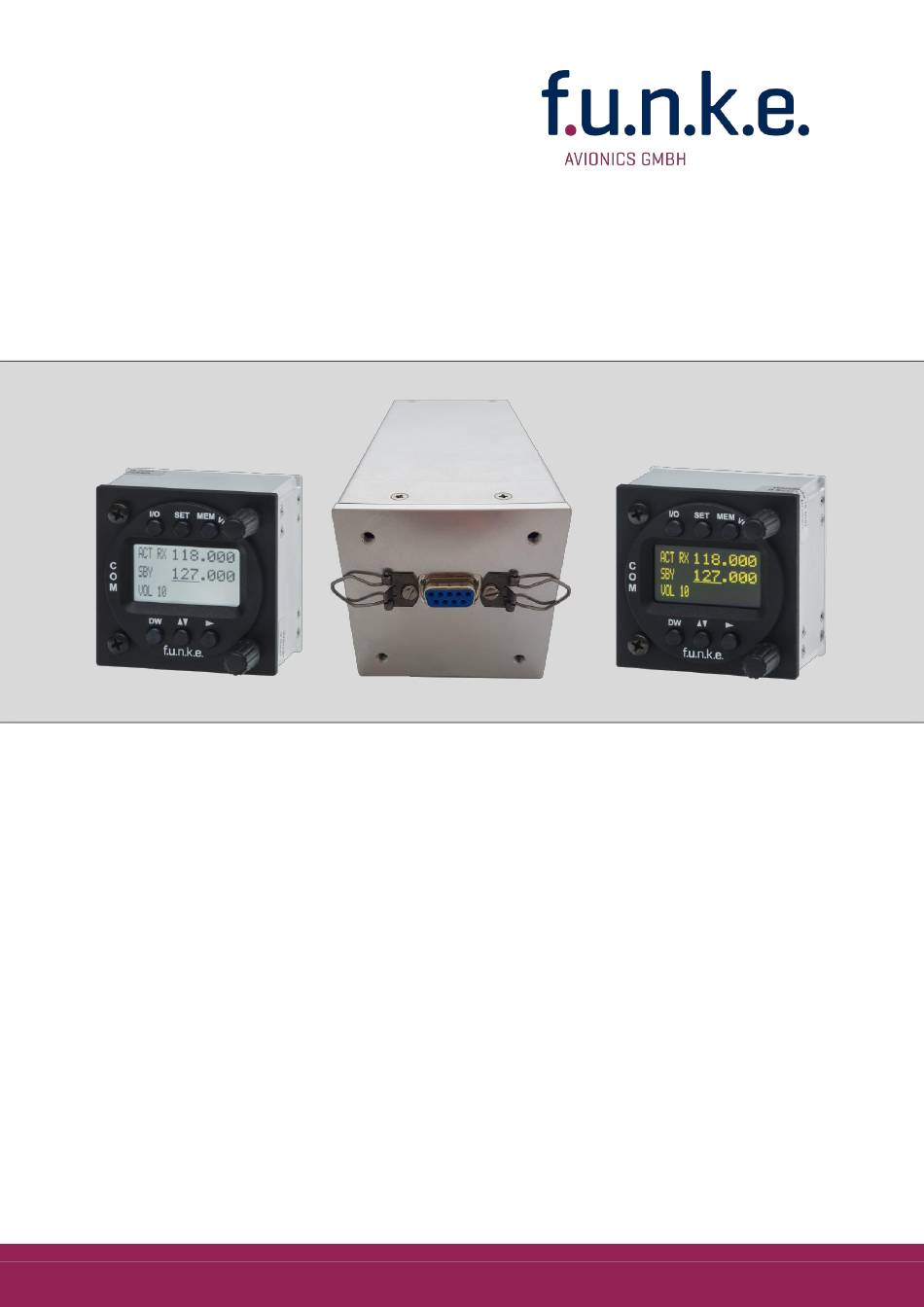

- Page 1 ATR833-II-BOX VHF Communication Transceiver - Headless P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation Document No. 01.143M.010.71e f.u.n.k.e. means – fabrication · utilities · network · know-how · engineering...
- Page 2 Doc-No. 01.143M.010.71e...
- Page 3 ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation Change History Revision Date Description of Change 1.00 25.02.2022 List of Service Bulletins (SB) Service-Bulletins are to be inserted in the manual and to be recorded in this table SB Number Rev. No.
-
Page 4: Table Of Contents
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation CONTENT GENERAL ............................... 5 ..............................5 YMBOLS ............................6 BBREVIATIONS ........................... 6 USTOMER UPPORT SYSTEM DESCRIPTION ........................... 7 OPERATION ............................7 ......................7 PERATION WITH ONE EMOTE ......................7 PERATION WITH TWO EMOTE NITS ......................... -
Page 5: General
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation GENERAL This manual contains information about operation and installation of the VHF transceiver ATR833-II BOX, as well as information about the physical, mechanical and electrical characteristics. Please read this manual carefully before installing the device. -
Page 6: Abbreviations
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation 1.2 Abbreviations Abb. Name / Subject Definition D-SUB D-Subminiature Standardized connector type Ground Ground connection Kilo Hertz Oscillation of 1 thousand Hertz Liquid Cristal Display Light reflecting display type Mega Hertz Oscillation of 1 Million Hertz... -
Page 7: System Description
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation Note Any suggestions for improvement of our manuals are welcome. Contact: service@funkeavionics.com. 2 SYSTEM DESCRIPTION The ATR833-II BOX is an ATR833-II VHF transceiver without integrated control head. The equipment characteristics are identical with the ATR833-II transceiver. -
Page 8: Configuration
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation Doc.-No. 01.143.010.71d/e ATR833-II - Operation and Installation Doc.-No. 01.1313.010.71d/e ATR833S – Operation and Installation The above mentioned manuals can be downloaded from service webpage of f.u.n.k.e. AVIONICS: www.funkeavionics.de/en/service/manuals/ 4 CONFIGURATION The configuration of the ATR833-II BOX is identical to the ATR833-II transceiver. -
Page 9: Installation
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation Data Byte # Description Possible Values / Remarks 118…136 0…198 (corresponds to 0…990 kHz) kHz / 5 The standby frequency and the active frequency can also be adjusted by Garmin devices. The protocol corresponds to the Garmin GTR225. -
Page 10: Telecommunication Data
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation Information The D-Sub-Connector (plug) has to be clamped with both spring locks. It is recommended to additionally secure them with a cable tie. 5.2 Telecommunication Data Manufacturer: f.u.n.k.e. AVIONICS GmbH Type Designation: ATR833-II BOX EASA Number: EASA.21O.10062108 REV. -
Page 11: Conductor Cross Section
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation See Document No. 01.143.010.71d/e ATR833-II - Operation and Installation chapter 4.6, 4.7 and 4.8. Warning The (+UB)-wire (PWR – Pin 11/12) has to be protected by a circuit breaker (4 Amp. slow-blow)! 5.6 Conductor Cross Section The conductors used must be approved for aircraft installation. -
Page 12: Harness Connector For Remote Control
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation 5.8 Harness Connector for Remote Control The harness connector provides a serial interface and power supply for a second remote control unit. Pin allocation on the harness remote interface: 1: not connected Connector for Remote... -
Page 13: Appendix
ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation 6 APPENDIX 6.1 Technical Data The transceiver technical data are identical to the ATR833-II. See § 5.2 of the Operation and Installation Manual. The ATR833-II Box dimensions are slightly different due to the missing control knobs. - Page 14 ATR833-II-BOX / P/N 833-II-(Mxxx)-(Mxxx) Operation and Installation Doc-No. 01.143M.010.71e...
- Page 16 f.u.n.k.e. AVIONICS GmbH Heinz-Strachowitz-Str. 4 DE-86807 Buchloe Germany phone.: +49-8241 80066 0 fax.: +49-8241 80066 99 E-mail: service@funkeavionics.de www.funkeavionics.de f.u.n.k.e. means – fabrication · utilities · network · know-how · engineering k.e.
