Summary of Contents for PRIXTON TE-001

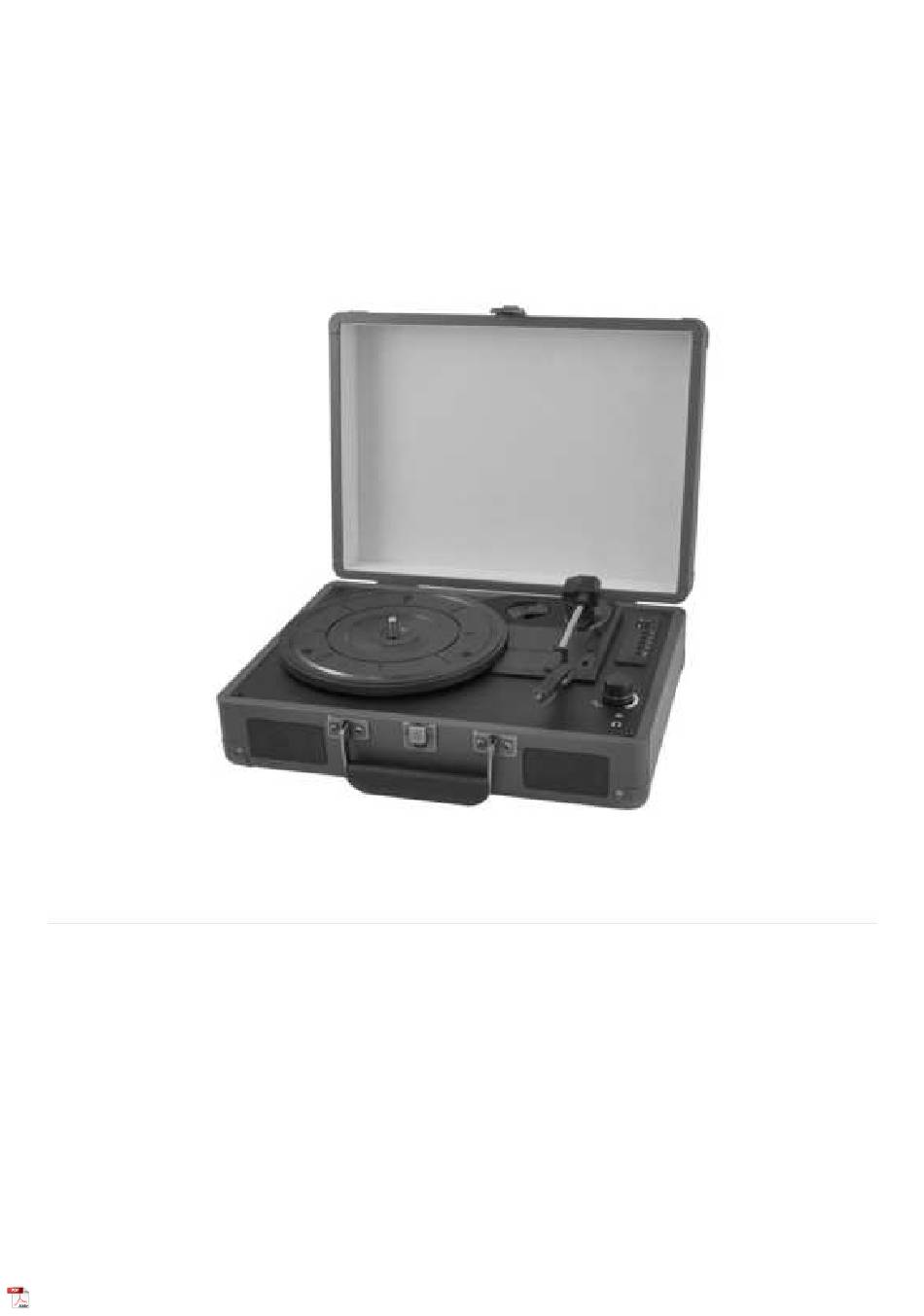

- Page 1 SUITCASE STYLE BLUETOOTH TURNTABLE Model No.: TE-001 Instruction Manual Dear Customer,Thank you very much for your purchasing. Before using your new product, please read these instructions to prevent any damage, and keep it for future reference.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This symbol indicates that there are important This symbol indicates operating and maintenance that dangerous voltage instructions in the literature constituting a risk of accompanying the unit. electric shock is present within the unit. 1. Read these instructions. 2. -
Page 3: Before Using The Unit
BEFORE USING THE UNIT As the unit may become warm during operation, always leave sufficient space around the unit for ventilation. The voltage supplied to the unit should match the voltage as printed on the rear panel.If you are in any doubt regarding this matter, consult an electrician. -
Page 4: Location Of Controls
To avoid dust and scratches, keep records in their sleeves and jackets when not in use. Store records upright on their edges. Records stored horizontally will eventually bend and warp. Do not expose records to direct sunlight or high humidity and temperature. Long exposure to high temperatures will warp the record. -
Page 5: Getting Started
GETTING STARTED General Operation: 1. Open the top cover as the illustrated follows: 2. Connected the unit to AC power as instruct below. Ensure that the mains voltage of your home corresponds to the operating voltage of the adaptor. Your unit is ready to be connected to a mains voltage of 5V DC adaptor. -
Page 6: Playing A Record
Playing a record 1. In first time use, take off the protective cover from the stylus as the illustrated below: 2. Unlock the Tone Arm from the holder as the illustrated above. 3. Place the Record on the center spindle 4. -
Page 7: Aux In Function
shows“-Lod” when loading time . Note: The display Turn on the Bluetooth function of your device and enable the search or scan feature to find the Bluetooth pairing name “***”. (See your device’s instructions to add or setup a Bluetooth device). Select "***"... -
Page 8: Maintenance
Turn on the Power Switch , and Insert aux in cable thenpress “ M” (not supplied) to Aux in jack button till enter into Aux in mode. The display shows “ LINE” . The other side of aux in cable connect your devise, then you can enjoy the music. -
Page 9: How To Replace The Stylus
How to replace the stylus The stylus should last about 50 hours under normal use. However, it is recommended that the stylus be replaced as soon as you notice a change in sound quality Removing an old stylus: Installing a new stylus 1. -
Page 10: Troubleshooting Guide
TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSE REMEDY GENERAL No sound in general. Volume not adjusted. Adjust the Volume knob. Source mode in wrong position. Using the Mode button, select the proper function as required. Power cable disconnected or Check the connection or the loose. - Page 11 The volume control of your Increase the volume of your Bluetooth device is set at too low. Bluetooth device. The volume control of the main unit Increase the volume of the main is set at too low. unit to turn to your wish. USB/TF No sound in USB/TF mode Volume at minimum.
- Page 12 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
