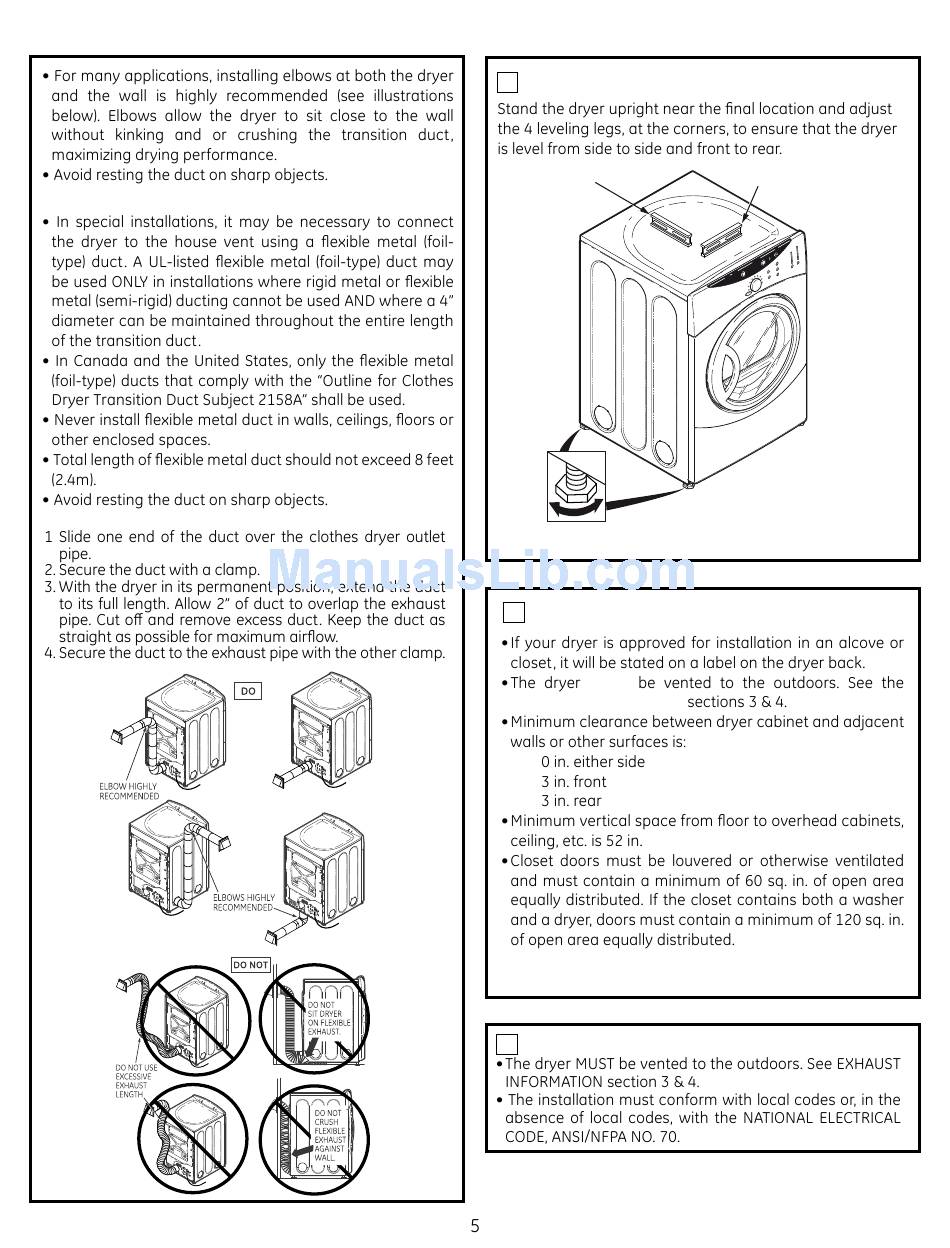

Alcove Or Closet Installation - GE DCVH680EJWW Installation Instructions Manual

UL-LISTED FLEXIBLE METAL (FOIL-TYPE) TRANSITION DUCT
For best drying performance
Installation Instructions
LEVELING YOUR DRYER
5
LEVEL
FRONT-TO-BACK
4 LEVELING
LEGS

ALCOVE OR CLOSET INSTALLATION

6
MUST
EXHAUST INFORMATION
NOTE: WHEN THE EXHAUST DUCT IS LOCATED AT THE REAR OF
THE DRYER, MINIMUM CLEARANCE FROM THE WALL IS 5.5 in.
BATHROOM OR BEDROOM INSTALLATION
7
LEVEL
SIDE-TO-SIDE
