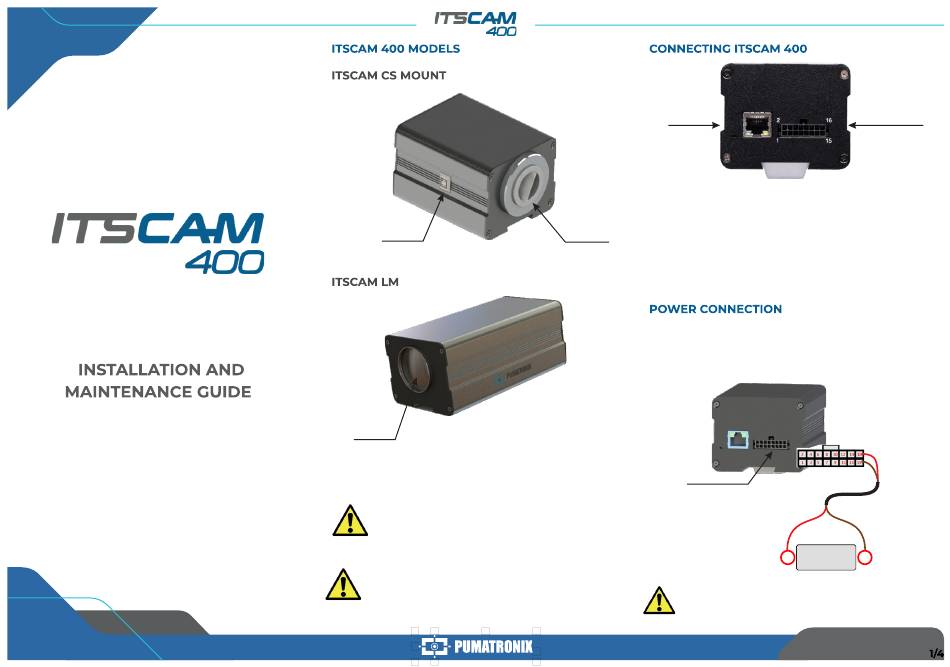

Auto iris
Connector
Acrylic
Viewer
This equipment may be included with lens, which are
sensitive to mechanical impacts such as drops and
extreme vibrations.
Oxidation Hazard: Electrical and signal connections
made to the ITSCAM 400 bundle and data network cable
must be protected in a terminal box or similar structure
to prevent oxidation of the connections and unwanted
infiltration of liquids into the bundle.
Ethernet
Connector
* Use the Ethernet connector to connect ITSCAM 400 to the local network.
* Use the Microfit connector inputs to connect ITSCAM 400 to power
source and to signal input equipment for physical triggering, such as an
Rubber
inductive loop or an optical barrier, for example.
Lid
* Utilize as saídas do conector Microfit para conectar a ITSCAM 400 a um
iluminador ou a equipamentos que se deseja controlar, como cancelas ou
portões.
1. Use a 12Vdc or 24Vdc power supply.
2. Make the power connections with the Microfit Connector, at terminals 15
and 16, using the supplied bundle and considering the respective colors of
the V+ and GND signals:
Microfit 16 ways
Connector
This equipment must be powered from a direct current
(DC) source with a voltage between 12 or 24 Vdc. Do not
connect any of the inputs directly to the power grid (AC)!
Microfit 16 ways
Connector
V+
GND
+
-
DC Power
14/06/2022
Revision 1.0
