  • Page 2 Information contained in this document is subject to change without notice. Pumatronix reserves the right to modify or improve this material without obligation to notify you of changes or improvements. Pumatronix grants permission to download and print this document, provided that the electronic or physical copy of this document contains the entire text.

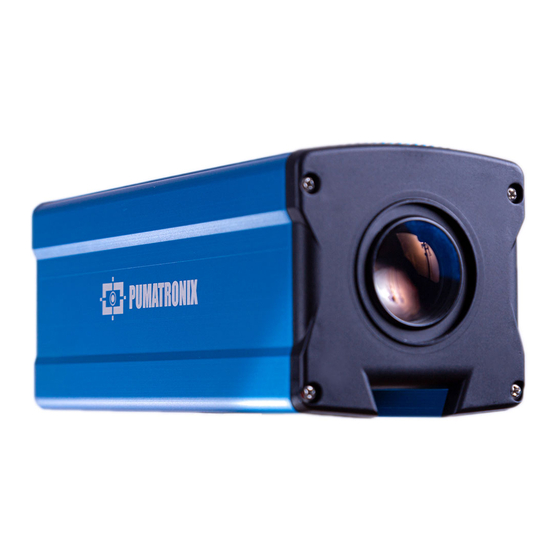

  • Page 3 Examples of these technologies are Intelligent Transport Systems (ITS), in which Pumatronix products are used, such as ITSCAM 600 line. Devices in this line capture images of vehicles, regardless of speed, using a global shutter image sensor. Figure 1 - ITSCAM 600 Line with CS Mount Lenses Figure 2 - ITSCAM 600 Line with motorized lenses www.pumatronix.com...
  • Page 4 Product Manual ITSCAM 600 Handling Risks The ITSCAM 600 CS AD IOT (S06L0W1AJP) and ITSCAM 600 LM AD IOT (S06L5W1AJP) models contain the EC25-AUFA-512-STD plate and ATWILC3000-MR110UA Anatel homologation code 06239-18-07968/0142417-03464. This equipment must be powered by a direct current (DC) source with voltage between 9 to 32 VDC.
  • Page 5 GPS (TPM1.0) L5: 13-55 mm J: LPR Embedded P: POE Power Digital Signature Functionality: The encryption of data that travels in ITSCAM 600 is in the specification validation process. Further details can be provided by Pumatronix Technical Support. www.pumatronix.com...
  • Page 6: Table Of Contents

    Product Manual ITSCAM 600 Summary Knowing the Product........................7 Generated Information........................ 8 Additional Documentation ......................9 Mechanical Specifications ......................10 Electrical Specifications ......................13 Electrical Connections..............................15 Trigger on IO ..................................15 Ethernet Connection..............................16 Antenna Connection ..............................16 Software Specifications ......................17 Image Capture Architecture ............................
  • Page 7 Product Manual ITSCAM 600 ITSCAM 600 Firmware Update via Web Interface ........................25 (Restricted Procedure) Recovery of ITSCAM 600 by Factory Reset ................. 26 Updating Analytics Licenses ............................27 Preventive Maintenance of ITSCAM Device ........................27 Warranty General Conditions ..................... 27 Situations in which the Product Loses the Warranty ......................
  • Page 8: Knowing The Product

    DC and P-Iris models. The quality and level of detail of the images captured with ambient and artificial lighting of the ITSCAM 600 comes from additional functionalities to the optical set (image sensor with lenses). There is a proprietary HDR (High Dynamic Range) algorithm to bring out the details of very dark and very light regions of images.
  • Page 9: Generated Information

    The redirection of images captured by the ITSCAM 600 can be done via a wired data network (using the 2 independent Gigabit Ethernet ports), a Wi-Fi network or using 4G and 3G mobile data networks. Using the...
  • Page 10: Additional Documentation

    Product Manual ITSCAM 600 communication interfaces, ITSCAM 600 images can be automatically uploaded to FTP and ITSCAMPRO servers. In addition, monitoring of equipment operation and captures can be done in real time through Web MJPEG H.264 Interface. The video with the captured images is available in...
  • Page 11: Mechanical Specifications

    • Fixation: Figure 6 - ITSCAM 600 securing mechanism: 1) Rail for changing the fixing point; 2) Thread for screws ¼"; 3) Ø4 mm hole for guide pin Figure 7 - Mounting of fastener components installed on ITSCAM 600 www.pumatronix.com...
  • Page 12 Product Manual ITSCAM 600 • Interfaces: Figure 8 - ITSCAM 600 CS AD IOT (S06L0W1AJP) Interfaces The ITSCAM 600 features the connectors available on the rear panel: Interface Specifications 2.0 (host) 2 Gigabit Ethernet RJ-45 connector (EIA/TIA-568A standard) SIM CARD...
  • Page 13 • Dimensions: The ITSCAM 600 CS and ITSCAM 600 CS AD IOT versions use CS Mount type lenses and have the same dimensions, the total length being dependent on the lens model chosen. *Using connected antennas, the total length can reach 144 mm.
  • Page 14: Electrical Specifications

    Typical power on ITSCAM 600 LM e ITSCAM 600 CS models: 7 W (models without interface for communication); • Typical power on ITSCAM 600 LM AD IOT and ITSCAM 600 CS AD IOT models: 8.5 W (models with RF interface for communication); •...
  • Page 15 32 GB Watchdog in hardware with a period of 50 seconds The ITSCAM 600 CS AD IOT (S06L0W1AJP) and ITSCAM 600 LM AD IOT (S06L5W1AJP) models contain the EC25-AUFA-512-STD plate and ATWILC3000-MR110UA Anatel homologation code 06239-18-07968/0142417-03464. Risk of Oxidation: The electrical and data connections must be protected in a junction box or similar structure to avoid oxidation of the connections and unwanted liquids infiltration in the cable.
  • Page 16: Electrical Connections

    Power supply 9~32 Vdc Trigger on IO The ITSCAM 600 has 4 connections that can be used as inputs or outputs, IO1 and IO2 are dedicated to controlling the activation of the illuminator and IO3 and IO4 are available for installing external sensors, such as loops and light barriers.
  • Page 17: Ethernet Connection

    The screen printing on the equipment's rear panel helps to identify the connectors for the antennas: Figure 13 - SMA connectors for ITSCAM 600 CS AD IOT and ITSCAM 600 LM AD IOT antennas* 1 MOV antenna 3 WIFI antenna 2 GPS antenna 4 4G/3G antenna *The indicated models have the antennas for connection.
  • Page 18: Software Specifications

    (up, down or both) or level (high and low). There is an alternative to using external sensors connected to the inputs of the ITSCAM 600, which is to configure the Trigger for software activation. In this case, the activation can be at a constant time interval...
  • Page 19: Motion Detector

    Classifier The ITSCAM 600 is able to analyze the captured images in real time and evaluate the content present in the images. This analysis aims to distinguish motorcycles, cars, trucks and buses from images that only show the track.
  • Page 20: Automatic Transition Between Image Profiles

    Same-plate recognition debounce Just configure the parameters of During the passage of the vehicle through the region monitored by the ITSCAM 600, several images of the Send only the exposure with the best same vehicle can be captured for processing. However, the option to recognition can be enabled and the other images will be discarded.
  • Page 21: Licensing

    Equipment Installation Location The ITSCAM 600 line can be installed in urban and road environments, and it is possible to adjust the framing to capture one or two lanes of the track. When installing on the road, the minimum height limits specified for the site must be respected, as well as the maximum angle of vertical inclination of 45°.
  • Page 22: Required Infrastructure

    Google Chrome browser (version 85 or higher) installed. Required Installation Conditions In order to extract the best performance from the ITSCAM 600, the installation should be carried out with little horizontal inclination and avoiding the covering of parts of the image by objects such as trees or vehicles from other lanes.
  • Page 23: Network Interface Parameterization

    3G network interfaces as they are disabled in the default settings of equipment factory. In situations where the ITSCAM 600's network configuration is different from the standard one, it is recommended to change the configurations prior to the physical installation of equipment on site. The changed network configuration is saved in flash memory, however it is effectively applied after the device is restarted.
  • Page 24: Or 4G Mobile Network Setup

    Installation Infrastructure 1) Fit the ITSCAM 600 into the protective case support, leaving the lens as close as possible to the case glass; 2) Respecting the distances of ITSCAM 600 positioning (as indicated in the...
  • Page 25: First Access

    Figure 16 - ITSCAM 600 Microfit Power and Signal Connector First access The ITSCAM 600's web interface can be used to quickly check the equipment status and the location being captured in images. However, the equipment must be energized, following the Electrical Specifications.
  • Page 26: Firmware Update

    ITSCAM 600 device stop working: 1) Keep the ITSCAM 600 device inactive during the update process, ensuring that it is not required by any service or other equipment on the network where it is installed;...
  • Page 27: (Restricted Procedure) Recovery Of Itscam 600 By Factory Reset

    12) Finish the update procedure by checking the firmware version indicated on the top bar of the page. (Restricted Procedure) Recovery of ITSCAM 600 by Factory Reset Information Loss: All files, images and settings stored on ITSCAM 600 are lost when performing the Recovery procedure. www.pumatronix.com...
  • Page 28: Updating Analytics Licenses

    Product Manual ITSCAM 600 The ITSCAM 600 recovery procedure requires an SD card that has a minimum capacity of 4 GB and that can be formatted. .tar 1) Download the ITSCAM 600 recovery file (file with extension), (contact Pumatronix Technical Support to access the file);...
  • Page 29: Situations In Which The Product Loses The Warranty

    The replacement of defective parts and the performance of services resulting from this Warranty will only be carried out at the Authorized Technical Assistance of Pumatronix or a third party expressly indicated by it, where the product must be delivered for repair.
