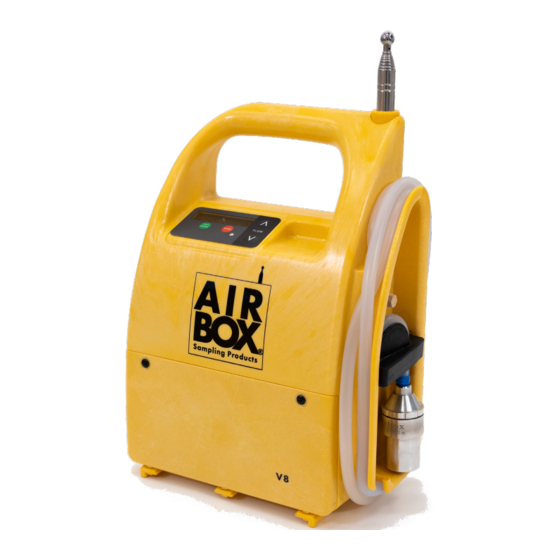

airbox Variflow 8 User Manual

Download this manual

User Manual

Specifications:- (tested with 8.0µm MCE filter)

Flow Range: Adjustable 5 -10 l/min

Battery Pack: Battery for Variflow/V8/Lowflow - Lead acid 12V

9Ah Recharge

Charge Time: 6-8 hours

Duration: 8+ Hours @ 8 l/min

Display: OLED, elapsed run time and battery indicator

Material: HF ABS

Waterproof: IP65

Dimensions: H38cm x W24cm x D12cm

Mast extends: (Up to 2 meters)

Weight: 4.6kg

CE Marked

Issue 1

220223

Need help?

Do you have a question about the Variflow 8 and is the answer not in the manual?

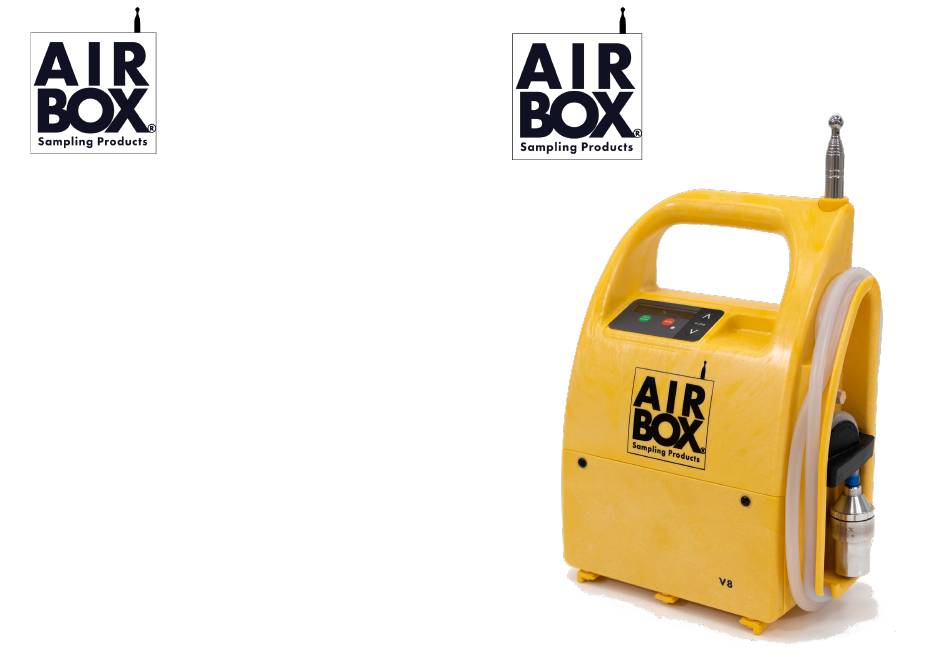

Page 1 User Manual Specifications:- (tested with 8.0µm MCE filter) Flow Range: Adjustable 5 -10 l/min Battery Pack: Battery for Variflow/V8/Lowflow - Lead acid 12V 9Ah Recharge Charge Time: 6-8 hours Duration: 8+ Hours @ 8 l/min Display: OLED, elapsed run time and battery indicator Material: HF ABS Waterproof: IP65 Dimensions: H38cm x W24cm x D12cm...
Page 2 Airbox Sampling Products , Technology Centre, Easting Close, Worthing, West Sussex BN14 8HQ Thank you for choosing this Airbox product. To ensure that you get the best possible use from it, please read this manual carefully. Airbox Sampling Products is part of the FermionX Group...
Page 3 Press the display will show ‘Set test mode’. Before you use the Variflow 8 pump make sure it is fully charged. A battery level indicator Press arrows to select ‘Free Running’ or ‘Timed test’. shows the available power when the unit is first switched on.
Page 4: Maintenance
3. Maintenance 3.1 Replacing the battery 3.3 Cleaning the unit The V8 pump has been specifically designed to make replacing the battery a quick and easy The casing of the V8 pump is made from a hard wearing ABS structural foam, making task.
Page 5: Troubleshooting
3.4 Servicing & Warranty 5. Parts The Variflow 8 pump is covered by our exclusive warranty and in the event that the unit fails we will undertake the repair free of charge for up to 2 years from the date of purchase. The...
