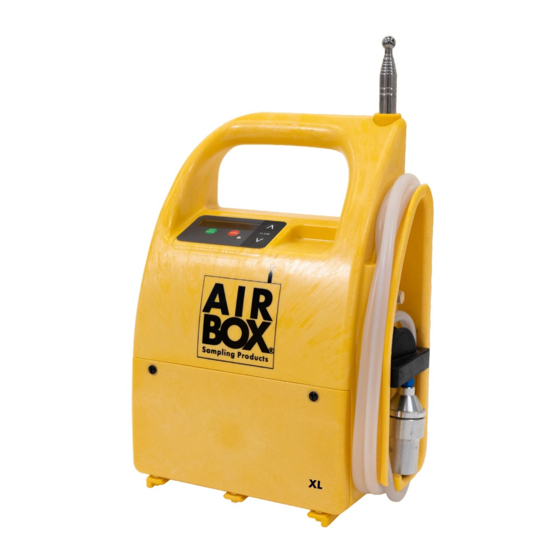

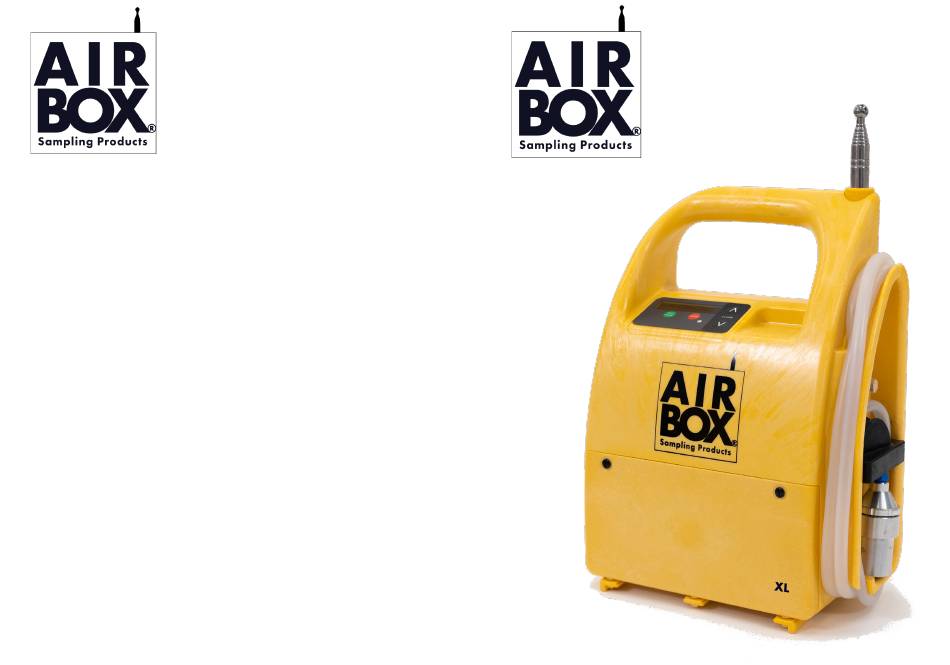

XL
User Manual
Specifications:- (tested with 8.0µm MCE filter)
Flow Range: Adjustable 5 -17 l/min
Battery Pack: 14.4 Volt 26.Ah Lithium Li-on
Charge Time: 6-8 hours
Duration: 10+ Hours @ 16 l/min, 22+ Hours @ 8 l/min
Display: OLED, elapsed run time and battery indicator
Material: HF ABS
Waterproof: IP65
Dimensions: H38cm x W24cm x D12cm
Mast extends: (Up to) 2 meters
Weight: 4.2kg
CE Marked
Issue 1
220309

Advertisement

loading
Need help?

Need help?

Do you have a question about the Variflow XL and is the answer not in the manual?

Questions and answers

Related Manuals for airbox Variflow XL

Summary of Contents for airbox Variflow XL

  • Page 1 User Manual Specifications:- (tested with 8.0µm MCE filter) Flow Range: Adjustable 5 -17 l/min Battery Pack: 14.4 Volt 26.Ah Lithium Li-on Charge Time: 6-8 hours Duration: 10+ Hours @ 16 l/min, 22+ Hours @ 8 l/min Display: OLED, elapsed run time and battery indicator Material: HF ABS Waterproof: IP65 Dimensions: H38cm x W24cm x D12cm...
  • Page 2 Airbox Sampling Products , Technology Centre, Easting Close, Worthing, West Sussex BN14 8HQ Thank you for choosing this Airbox product. To ensure that you get the best possible use from it, please read this manual carefully. Airbox Sampling Products is part of the FermionX Group...
  • Page 3 1. Setting up and using the XL pump 2.1 Setting test mode start/pause Press the display will show ‘Set test mode’. Before you use the XL pump make sure it is fully charged. A battery level indicator shows the Press arrows to select ‘Free Running’ or ‘Timed test’. available power when the unit is first switched on.

  • Page 4: Maintenance

    3. Maintenance 3.1 Replacing the battery 3.3 Cleaning the unit The XL pump has been specifically designed to make replacing the battery a quick and easy The casing of the XL pump is made from a hard wearing ABS structural foam, making it task.

  • Page 5: Troubleshooting

    The defect must not have been caused by improper handling or misuse. P02008 Variflow XL VARIFLOW XL Pump c) Return the unit to us in the decontamination bag provided by Airbox. We will not assume responsibility for transport damage under any circumstances. Sampling pump + Kit (incl head, spare P02008/KIT Variflow XL Kit d) A short description of the defect must be included with the returned unit.
