airbox
sampling products
V3
Specifications:-
(tested with 0.8µm NUCLPR filter)
Flow Range: Adjustable 5 -12 litres/min with 0.8 micron cellulose filter
Flow Stability: +/- 3%
Battery Pack: 12.8V Lifepo4 Pack12Ah Lithium
Charge Time: 6 - 8 Hours Max
Duration: 12+Hours @ 8 litres/min
Display: OLED, Elapsed run time and battery indicator
Material: HF ABS
Waterproof: To IP65
Dimensions: H38cm x W24cm x D12cm
Mast extends to: Up to 2.0 metres
Weight: 4.6 kg
Warranty Registration
Don't forget to register your new Airbox product by filling in the
registration form provided and returning it to us at the address below.
Alternatively you can do this online at:
Technical support
For all technical support or customer service enquiries
please contact us:
telephone:
+44(0)1903 524 600
email:
sales@airboxsp.com
web:
www.airboxsp.com
Airbox Sampling Products , Technology Centre,
Easting Close, Worthing, West Sussex BN14 8HQ
www.airboxsp.com
airbox
sampling products
thank you for choosing this Airbox product
Find us online at
www.airboxsp.com

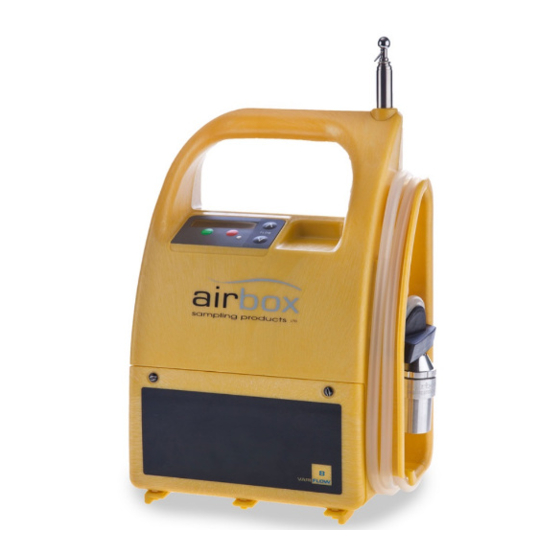

User Manual
DATAFLOW
t:
+44(0)1903 524 600
e:
sales@airboxsp.com
Advertisement
Table of Contents
Related Manuals for airbox DATAFLOW PO1726
Summary of Contents for airbox DATAFLOW PO1726
- Page 1 Mast extends to: Up to 2.0 metres Weight: 4.6 kg Warranty Registration Don’t forget to register your new Airbox product by filling in the registration form provided and returning it to us at the address below. Alternatively you can do this online at: www.airboxsp.com...
- Page 2 Table of contents Dear Customer 1. Installing the Airbox Dataflow Software............3 Thank you for purchasing this Airbox product. To ensure that you get the best possible use from it, please read this manual carefully. 1.1 Compatible operating systems....................3 1.2 Locating and loading the software.....................3 1.3 Airbox Dataflow Application......................4...
- Page 3 Troubleshooting Exit on your computer to store the software for easy access. Click Install 1.4 Airbox Dataflow Application when connected to the pump When the install is complete the Completing Airbox Dataflow 1.1.0 Setup window opens. Click Finish Settings Calibration To website The Welcome to the Device Driver Installation Wizard window opens.
- Page 4 3. Calibration Stop Airbox Sampling Products follows the guidelines laid out in HSG248. We calibrate the pumps flow rate against our calibrated master flow meter. Back Our calibrated master flow receives annual calibrations by a UKAS accredited calibration provider.
- Page 5 4.1 Connecting the unit to the computer Enter the Flow (L/Min) Open the Airbox Dataflow Application from the shortcut on your desktop. Connect For Capacity Test, when entering the required Capacity (L) the Time (Mins) will the USB cable to the computer and to the pump.
- Page 6 5.2.2 Timed Test (cont) 5.1 Selecting a previously saved job To select a job you have previously set up on the pump, (see section 4 on presetting Use the arrow keys to change the values and the start/pause to scroll across the with Select showing on the display, press start/pause.
- Page 7 6. Downloading data from the DATAFLOW Maintenance Make sure the application is open on the computer. Connect the USB cable to the 8.1 Replacing the battery computer and to the pump. The DATAFLOW pump has been specifically designed to make replacing the battery start/pause Press to switch on the unit.
- Page 8 Sampling head Air sampling head c) Return the unit to us only in its original packing and in the decontamination bag provided by Airbox. We will not assume responsibility for transport damage under Battery charger DATAFLOW 14.6V 3A PT33520LF Dataflow Charger any circumstances.
