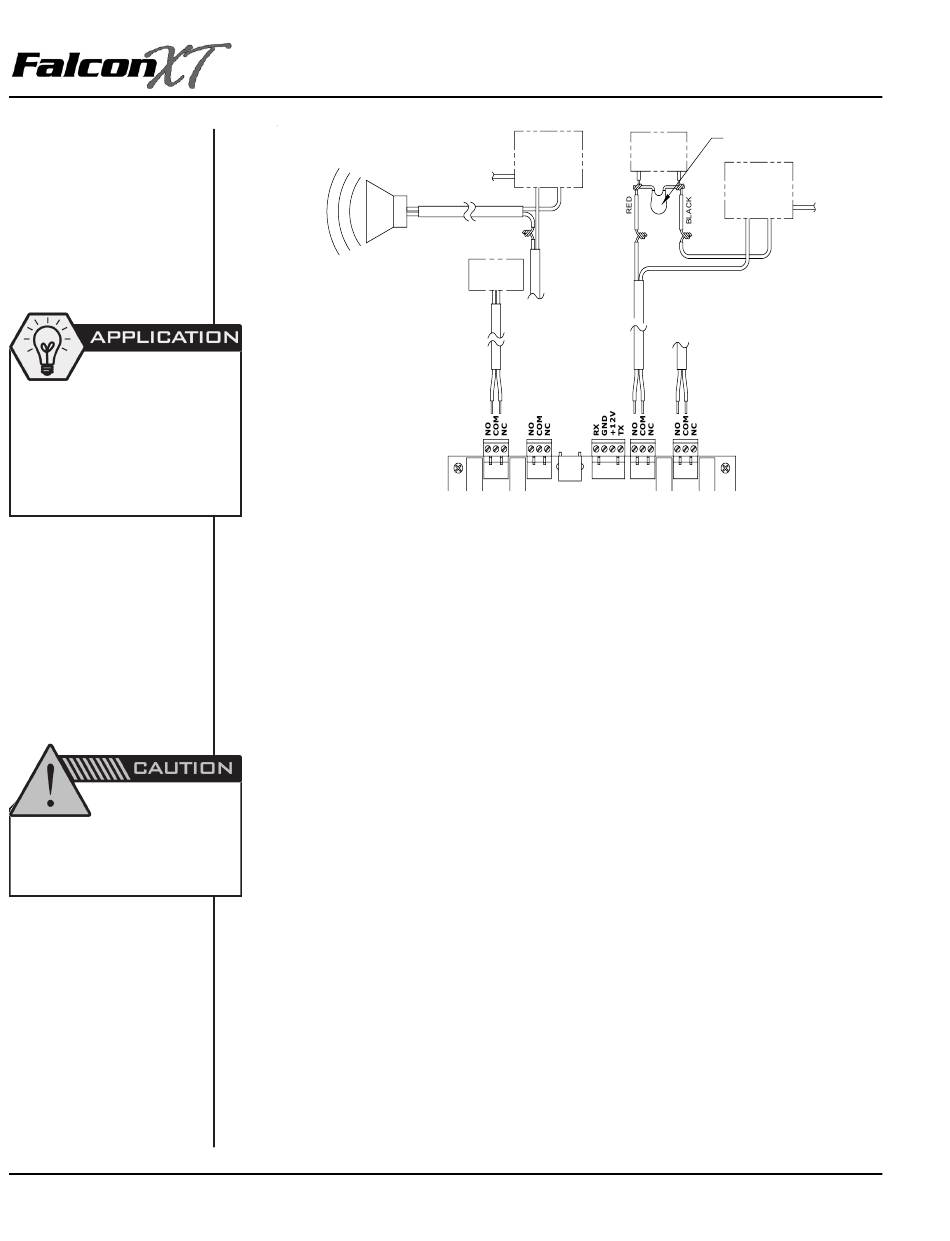

The diagram shows
a default setup of the
outputs. All of these outputs are
completely reprogrammable and
can be used to control almost any
relay activated device at almost
any time. Refer to the software
Help Files for more information on
programing output relays.
PTI Security Systems
relays have a
maximum switching capacity of
30V. Devices requiring higher
voltage must be wired through
contactor blocks.
28
-
SIREN
+
REFER TO GATE OPERATOR
MANUFACTURER INSTRUCTIONS
FOR PROPER WIRING TO RELAY.
MAGNET
+12V
3. Output Relay 2 and Relay 3 do not have default settings in the
+5V
CONTACT
GND/SHLD
control software and can be used for almost any programmable
DATA 0
DATA 1
GRN LED
relay function.
RED LED
BEEPER
HOLD
4. Output Relay 4 is defaulted as the siren relay in the control
TMPR/CP
software. This can be reprogrammed to almost any relay
INPUT 1
INPUT 2
function to customize the site. All relays are programmable and
INPUT 3
can be used for many different types of functions. Connect the
INPUT 4
siren as per manufacturer instructions.
PUSH
TO
NOTE: RUN CABLES THROUGH HOUSING
EXIT
KNOCKOUT/CONDUIT BEFORE WIRING TO BOARD.
12VDC POWER
12VDC DOOR
SUPPLY
(DEDICATED TO
SIREN)
120VAC
+ DC -
NO
GATE
OPERATOR
(TO RELAY 4)
RELAY 1 RELAY 2 RELAY 3
REFER TO
MANUFACTURER'S
INSTRUCTIONS FOR
WIRING WIEGAND
DEVICES.
ZNR Surge Absorber
(MOV)
STRIKE
12VDC POWER
SUPPLY
(DEDICATED TO
DOOR STRIKE)
120VAC
+ DC -
COM
(FROM SIREN)
RELAY 4
TMPR/CP
HOLD
BEEPER
RED LED
GRN LED
DATA 1
DATA 0
GND/SHLD
+5V
+12V
INPUT 8
INPUT 7
INPUT 6
INPUT 5
