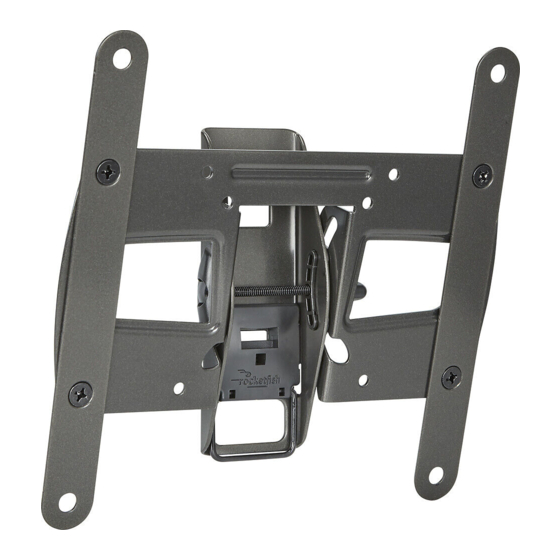

19" to 39" TV WALL
MOUNT - TILT
RF-HTVMTAB
For wood-stud and concrete
wall installations
Before using your new product, please read these instructions to prevent any damage.
Tools needed......................................................................2
Package contents .............................................................3
Installation instructions .................................................5

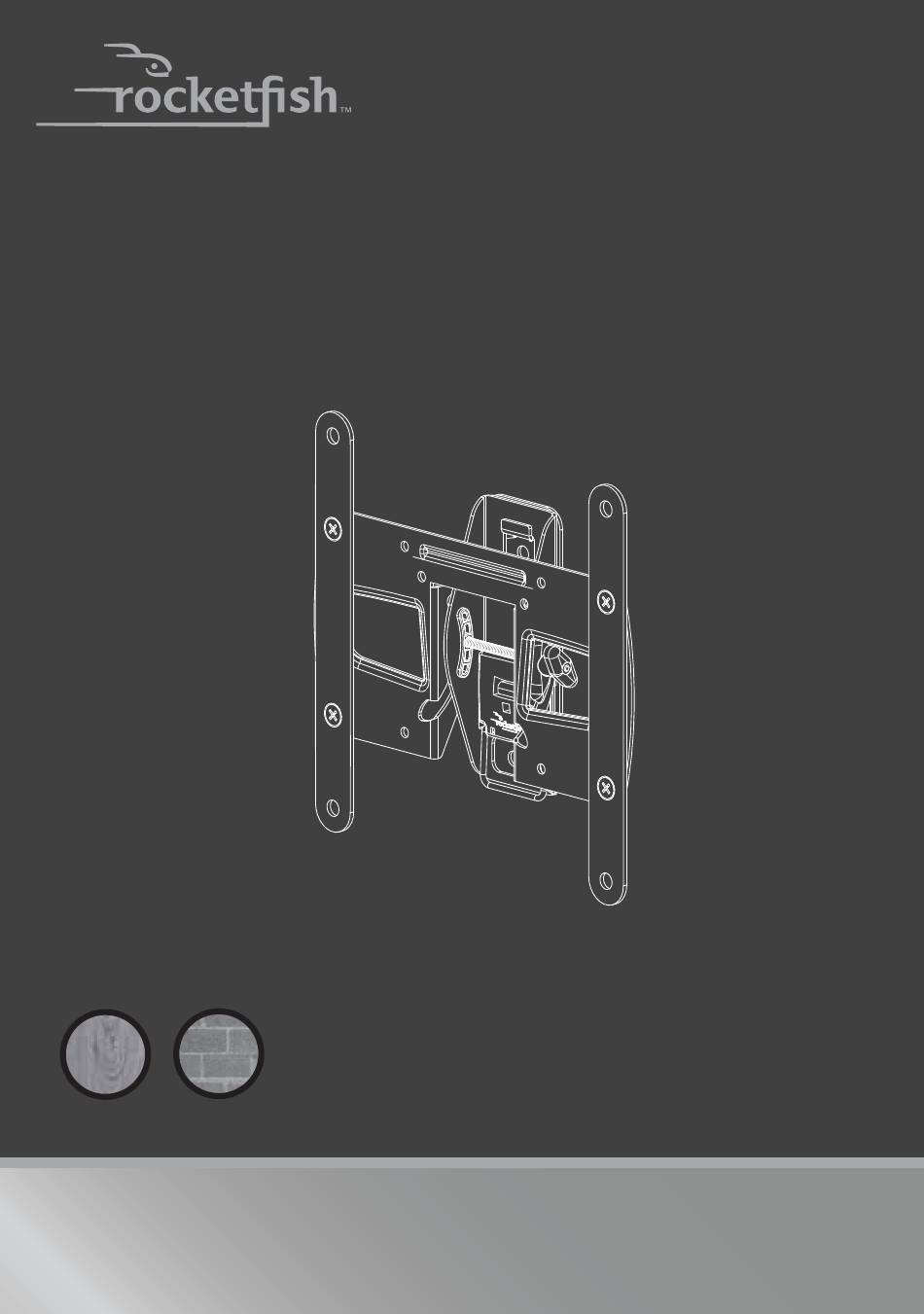

ASSEMBLY GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the RF-HTVMTAB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RocketFish RF-HTVMTAB

  • Page 1 19” to 39” TV WALL MOUNT - TILT RF-HTVMTAB Safety information and specifications ......2 Tools needed..............2 Package contents .............3 Installation instructions ..........5 For wood-stud and concrete wall installations ASSEMBLY GUIDE Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Safety Information And Specifications

    Customer Service or call a qualified contractor. Rocketfish is not responsible for damage or injury caused by incorrect installation or use. The weight of your TV must not exceed 50 lbs. (22.6 kg). The wall must be capable of supporting five times the weight of your TV and wall mount combined.
  • Page 3: Package Contents

    RF-HTVMTAB Package contents Make sure that you have all the hardware necessary to assemble your new TV wall mount: 1 TV Bracket (1) 12 Wall plate (1) 11 Template (1) Need help? Call 1-800-620-2790 (U.S. and Canada)
  • Page 4 TV Hardware Hardware Qty. Hardware Qty. M4 × 12 mm M4 washers screw M6 × 12 mm screw M6/M8 washers M8 × 20 mm screw Universal spacers M4 × 35 mm screw M6 × 35 mm 5/16" × 2 3/4" lag bolt screw M8 ×...
  • Page 5: Installation Instructions

    RF-HTVMTAB Installation instructions STEP 1 - Measure your TV hole pattern and assemble the TV bracket Measure the width and height of your TV hole pattern in centimeters to determine which TV bracket configuration fits your TV. Record your measurements in cm: Width ______cm x Height ______cm.
  • Page 6 20 cm 10 cm 7.5 cm 7.5 x 7.5 cm 10 x 10 cm 20 x 10 cm 10 cm Remove 7.5 cm extender brackets 3/8 in. (10mm) wrench 20 x 20 cm Leave 20 cm extender brackets 20 cm Need help? Call 1-800-620-2790 (U.S.
  • Page 7 RF-HTVMTAB Step 2 - Determine whether your TV has a flat back or an irregular or obstructed back Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for instructions.
  • Page 8 STEP 3 - Select screws, washers, and spacers Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) If you don't know the correct length of the mounting screws your TV requires, test various sizes by hand threading the screws.
  • Page 9 RF-HTVMTAB STEP 4 - Option 1: Attaching the mounting hardware to TVs with a flat back Align the holes you noted on the TV bracket (1) with the screw holes on the back of your TV. Make sure the bracket is level.
  • Page 10 STEP 4 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs Place the spacers (10) over the screw holes on the back of the TV. Align the TV bracket (1) over the spacers (10), then place the washers (8 or 9) over the holes in the TV bracket and insert the screws (5, 6, or 7) through the washers, TV bracket, and spacers.
  • Page 11 RF-HTVMTAB STEP 5 - Determine wall-mount location NOTE: • For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder • Your TV should be high enough so your eyes are level with the middle of the screen. Normally, 40 to 60 inches from the ground.
  • Page 12 STEP 6 - Option 1: Installing on a wood stud wall Note: Drywall covering the wall must not exceed 5/8" (16 mm). Locate the stud. Verify the center of the stud with an edge-to-edge stud finder. Align the center of the wall plate template (11) at the height you determined in the previous step and make sure that it is level.
  • Page 13 RF-HTVMTAB NOTE: If needed, you can make small level adjustments to the wall plate by loosening the bottom lag bolt and shifting the wall plate until it is level. Tighten the bottom lag bolt when the adjustments are complete. You’ll need...
  • Page 14 STEP 6 - Option 2: Installing on a solid concrete or concrete block wall CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks. Mount the wall plate directly onto the concrete surface. Note: Minimum solid concrete thickness: 8 in (203 mm). Minimum concrete block size: 8 x 8 x 16 in.
  • Page 15 RF-HTVMTAB NOTE: If needed, you can make small level adjustments to the wall plate by loosening the bottom lag bolt and shifting the wall plate until it is level. Tighten the bottom lag bolt when the adjustments are complete. You’ll need Level 1/2"...
  • Page 16 STEP 7 - Attach your TV to the wall plate • Hang the TV onto the wall plate (12) by hooking both slots in the TV bracket (1) onto the wall plate, then lowering the TV until it clicks into place.
  • Page 17 RF-HTVMTAB STEP 8 - Making adjustments • Loosen the tilt tension knob on the TV bracket to adjust the tilt of your TV. Tighten the knob when your TV is set to the tilt you want. Tilt tension knob Tilt adjustment...
  • Page 18 Removing the TV from the wall mount To remove your TV from the wall plate (12), disconnect all cables, then pull down on the release latch. Swing the bottom of the TV out from the wall bracket, then lift the assembly off the wall bracket.
  • Page 19 Part # 6907-002109 01 www.rocketfishproducts.com (800) 620-2790 (U.S. and Canada) ROCKETFISH is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2016 Best Buy. All rights reserved.
