Tautness Check Of Running Belt; Tautening Of Running Belt - Medisoft 800 Series Service Manual

Loosen the nut of the adjusting rod (Fig.23), then screw it up to put in the proper belt tension.
Screw the nut and the screws that secure the support of the roller belt tensioner to the engine
containment tank.
24

Tautness Check of Running Belt

To perform this check it is necessary to set the belt in motion, to verify if the running belt slips or
not on the front roller when operating at full load.
To set the belt in motion it is necessary to work with the hood open and the device switched on. If
the treadmill is not switched on, follow the guidelines described in paragraph 6.
After having set the belt in motion (1,6 Km/h), we must climb on the belt and forcefully stop the
belt temporarily with our feet(Fig.22).
During this operation you need to check that the drive belt , the flywheel, the roller and the running
belt work perfectly.
If all the components listed above are running at the same time then the test is OK..
25

Tautening of Running Belt

Essential tools:
• 13-mm wrench
To perform this check it is necessary to set the belt in motion.
To set the belt in motion it is necessary to work with the hood open and the device switched on. If
the treadmill is not switched on, follow the guidelines described in paragraph 6.
Start the treadmill and adjust the running belt with the two bolts illustrated (Fig. 21) until the lower
surface of the tape (the one under the wood base) is perfectly horizontal and parallel to the surface
of the fund (Fig.22).
18

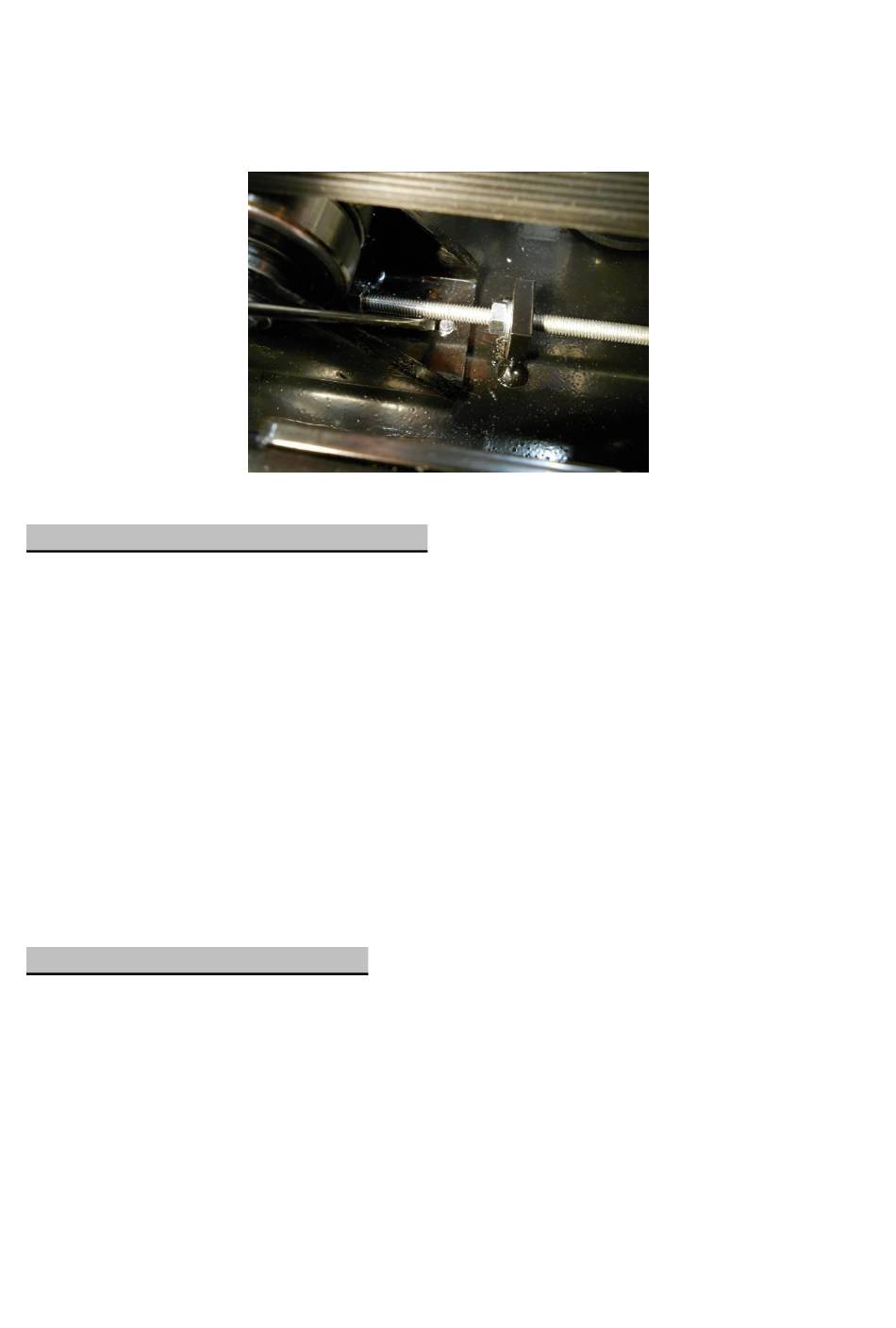

Fig.23
