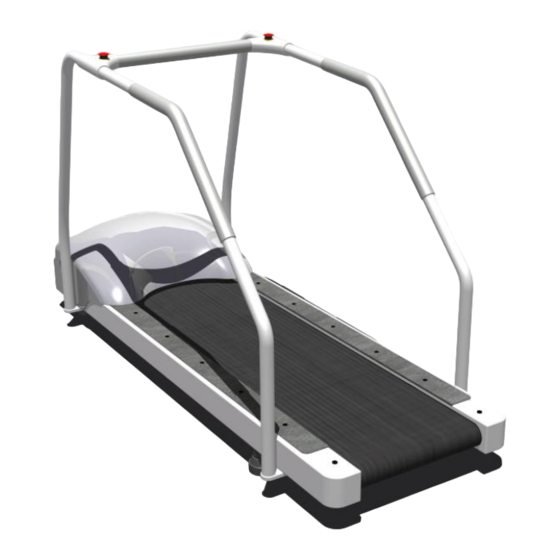

Treadmill mod. 870 A, 870 S , 870 C

U S E R ' S M A N U A L

This Manual should be carefully read in all of its parts, before starting to

operate the treadmill

REV. 1/01.07.2019

Table of Contents

Need help?

Do you have a question about the 870A and is the answer not in the manual?

Questions and answers

Summary of Contents for Medisoft 870A

Page 1 Treadmill mod. 870 A, 870 S , 870 C U S E R ’ S M A N U A L This Manual should be carefully read in all of its parts, before starting to operate the treadmill REV. 1/01.07.2019...
Page 2 Medisoft RAM Italia S.r.l. The Medisoft RAM Italia S.r.l. company is committed to a policy of constant improvement in compliance to Norm ISO EN 9001:2001 requirements, and as a function of feedback from customers and the market in compliance to norm ISO EN 13485:2004.
Page 3: Table Of Contents
Treadmill model 870 C technical specifications ................33 ANNEX A - Symbology .......................... 34 ANNEX B - RS232 Serial Port ....................... 35 ANNEX C - Tap-Tst program ........................ 36 ANNEX D – Troubleshooting ......................... 37 © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 4 Before give tension to the treadmill by this operations: • Rotate to pull up the red emergency button • Switch on the mains • Put on the rubber cup of the safety lanyard © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 5: Introduction To The Equipment
Manufacturer’s Cardiorespiratory Diagnostic Exercise Systems, and for use in Motor Rehabilitation Centres. In such configuration the treadmill becomes a passive device of a diagnostic system and can be used by adequately qualified personnel only. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 6: Precautions
Failure to observe routine maintenance norms. • Using the equipment outdoors, or in inadequately protected or unhealthful conditions or environments. • Medical or therapeutically use of the equipment by personnel who is not adequately qualified. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 7: Safety Regulations
11. If, for any reasons it becomes necessary to move the equipment, you must insure that the equipment power switch is turned off and that the equipment is unplugged and rendered inoperable, before moving the equipment. If the © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 8 22. Ensure the area surrounding the treadmill is clean, dry, and dust-free at all times. 23. Do not remove the treadmill hood. This should only be carried out by authorised service personnel. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 9: Electromagnetic Compatibility
TREADMILLS MOD. 870A/870S/870C Rev.1/01.07.2019 WARNING ! Medisoft RAM Italia S.r.l. takes no responsibility for any accidents or any damages caused to people or things due to a connection of the treadmill to an electric outlet in non-compliance with current laws and safety norms.
Page 10 As an alternative, touch a metallic part of a very wide surface. • When making any connections double-check that both devices or equipment to connect are turned off. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 12: Identification Plates
The structure of the serial number is as follows: where: pr pr pr: progressive production number referring to the year indicates the model of the treadmill a a a a: indicates the year when the item was manufactured © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 13: Safety Plate
The safety plate is located below the power switch. It reminds users to set the power switch to OFF and remove the plug from the mains outlet before removing the treadmill hood. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 14: Main Parts Identification
2 Angular covers 3 Lateral handrail 4 Red stop switch 5 Treadmill hood 6 Anti-skid tape 7 Running belt 8 Back roller 1.9.1 MODEL 870 A / 870 S / 870 C © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 15 TREADMILLS MOD. 870A/870S/870C Rev.1/01.07.2019 1.9.2 HANDRAILS SPECIFICATIONS Red stop switch Safety lanyard RED STOP SWITCH: In case of emergency, by pressing this button completely take the mains in the treadmill. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 16 By a clip is attached to the patient, in case of patient fall, it is completely switched off the mains in the treadmill. WARNING ! CLAMP THIS CLIPS TIGHT ON VEST WARNING ! DISENGAGE ALL STOP SWITCHES AFTER 30 SEC. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 17: Packing, Transport, Storage And Delivery
Storage conditions Allowed temperature range: from -10 C to + 50 Maximum relative humidity allowed: below 90%, without moisture. WARNING! Do not leave the equipment exposed to sunlight, rain or other atmospheric agents. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 18: Delivery And Claims
Medisoft RAM Italia representative. Upon being notified that you have received the equipment, a qualified Medisoft RAM Italia representative will visit your premises. They will unpack your equipment, check for internal damage or missing items, and then assemble it according to the directions of our Technical Service department.
Page 19: Installation
870 S or 870 C), a RS 232 serial cable and a technical CD. Verify the presence of the following material, inside the box of the standard accessories : RS232 cable (no. 1) CD ROM containing Tap_Tst program, user and service manual © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 22 Alter the angle of the control panel (if provided) by adjusting the screws on the upper side of the front handrail. Replace the angular covers in their original positions, but be sure not to over-tighten the screws. Fig. 6 © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 23: Moving
The treadmill is equipped with a cable with an equipment grounding conductor, as well as a grounding plug. • The plug must be connected to an appropriate outlet that is properly installed and grounded in compliance with current regulations. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 24 TREADMILLS MOD. 870A/870S/870C Rev.1/01.07.2019 WARNING ! The Medisoft RAM Italia S.r.l. company assumes no responsibility, and shall not be liable for, any damages to people, or objects due to a connection of the treadmill to an electricity network noncompliant to laws and norms currently in force.
Page 25: Verification Of Speed Parameters
Km/h 14 ± 1 If the values counted are different from the count expected please contact the Service department of Medisoft RAM Italia to verify the settings. Note: This module is also provided on paper attached to the installation procedure.
Page 26 Alternatively, you may contact Medisoft RAM Italia directly: Medisoft RAM Italia S.r.l. Via Germania 14 - 35127 CAMIN-PADOVA (ITALY) T +39 49 8703355 | F +39 49 8703388 info@medisoft-ram.it | www.medisoft-ram.it © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 27: Patient Secutiry
Patient security EMERGENCY STOP BUTTONS The treadmill Medisoft RAM is the only device equipped with two emergency stop buttons positioned frontally to the patient on the support structure ( when the patient is on walking surface ) to the right and left sides . Are highly visible , fast access and usable.
Page 29: Maintenance
We wish to remind you that Norm EN 60601-1 defines the end user as the private or public corporation responsible for the use and maintenance of the equipment (par. 2.12.13). © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 30 Manufacturer (Medisoft RAM Italia S.r.l.) who will promptly communicate the terms and conditions of technical assistance.
Page 31 It is necessary to comply and make sure that that the annual mandatory routine maintenance is performed as indicated. Failure to comply to this requirement exonerates the Manufacturer from any responsibility whatsoever for any accident or damage caused because of it (par. 1.4). © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 32: Non-Routine Maintenance
Failure to comply to this caution exonerates the Manufacturer from any responsibility whatsoever for any accident or damage caused because of it . © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 33: Disposal
The equipment must be disposed of, in compliance with current norms and regulations. If necessary it may be a good idea to contact a firm specialized in the disposal of objects. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 34: Treadmill Model 870 A Technical Specifications
Utilisation conditions Temperature: From 10 to 40 C° Humidity: Lower than 85% Storage and transport conditions Temperature: From -10 to 60 C° Humidity: Lower than 90% Packaging: Carton box bound with wooden pallet © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 35: Treadmill Model 870 S Technical Specifications
Utilisation conditions Temperature: From 10 to 40 C° Humidity: Lower than 85% Storage and transport conditions Temperature: From -10 to 60 C° Humidity: Lower than 90% Packaging: Carton box bound with wooden pallet © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 36: Treadmill Model 870 C Technical Specifications
Utilisation conditions Temperature: From 10 to 40 C° Humidity: Lower than 85% Storage and transport conditions Temperature: From -10 to 60 C° Humidity: Lower than 90% Packaging: Carton box bound with wooden pallet © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 37: Annex A - Symbology
Warning, consult attached documents 417-5008 OFF (Power is disconnected from the mains) 417-5007 ON (Power is connected to the mains) 878-02-02 Type B applied part 417-5019 Protection ground Other symbols Waste Separation (Directive 2002/96/CE–RAEE) © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 38: Annex B - Rs232 Serial Port
RS232 serial port. Positioned on the back of the treadmill hood, there is a 9 pin connector. If necessary, you can request from Medisoft RAM Italia S.r.l. the technical sheet concerning the serial interface configuration and the transmission protocols including the commands and the replies to the commands.
Page 39: Annex C - Tap-Tst Program
If you change the elevation or speed values dragging the cursor of the bars, the command will be sent to the treadmill when the mouse button will be released. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 40: Annex D - Troubleshooting
Contact Medisoft RAM Italia service Drive belt bearings Contact Medisoft RAM damaged Italia service The treadmill Blockage of treadmill due Let the system rest and stops working, to excess load. then try again. © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 41 Loose running belt Contact the Technical Assistance Support (Customer Service) Trouble with inverter or Contact the Technical breaking of wiring Assistance Support (Customer Service) Malfunctioning of cooling Contact the Technical Assistance Support (Customer Service) © Medisoft RAM Italia S.r.l.. All rights reserved.
Page 42 TREADMILLS MOD. 870A/870S/870C Rev.1/01.07.2019 MEDISOFT RAM ITALIA SRL VIA GERMANIA 14 35127 PADOVA – ITALIA TEL. + 39 049 870 33 55 FAX. +39 049 870 33 88 Email: info@medisoft-ram.it © Medisoft RAM Italia S.r.l.. All rights reserved.
