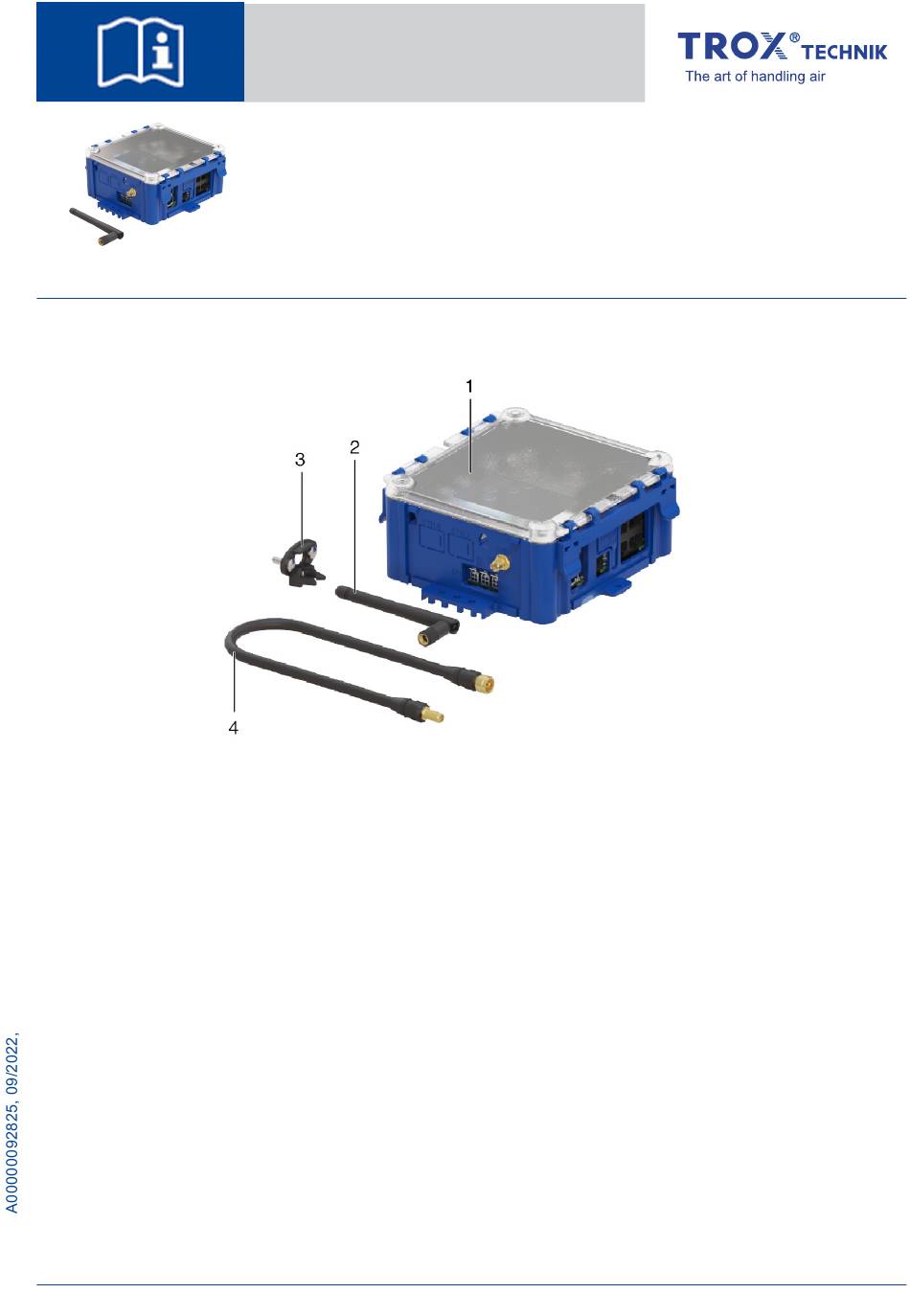

Product overview
Fig. 1: FAM-RD
1
FAM-RD (Field Application Module with Radio-
Duct expansion module)
2
Antenna
Installation manual
X-AIRCONTROL
FAM-RD
X-AIRCONTROL FAM-RD
GB/en
3
Antenna mounting bracket
4
Antenna cable, 50 cm long
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn
Germany
Phone: +49 (0) 2845 2020
+49 (0) 2845 202-265
E-mail: trox-de@troxgroup.com
http://www.troxtechnik.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Trox Technik X-AIRCONTROL
Summary of Contents for Trox Technik X-AIRCONTROL
- Page 1 Germany Phone: +49 (0) 2845 2020 X-AIRCONTROL +49 (0) 2845 202-265 E-mail: trox-de@troxgroup.com http://www.troxtechnik.com FAM-RD Product overview Fig. 1: FAM-RD FAM-RD (Field Application Module with Radio- Antenna mounting bracket Duct expansion module) Antenna cable, 50 cm long Antenna X-AIRCONTROL FAM-RD...
-
Page 2: Product Overview
Note Sensor connections S1, S2, S3 Not used Antenna connection Not used T5 = X-AIRCONTROL connection Push button for enabling service port T1 T1 = service and multi port T2-T4 not used T2 -T4 = multi ports Digital input 1 (DI1 + GND) -
Page 3: General Information
FAM-RD product information recent technical changes. X-AIRCONTROL commissioning and service The obligations agreed in the order, the general manual terms and conditions, the manufacturer's terms of Project-specific wiring documents ... - Page 4 ENVIRONMENT! Environmental pollution hazard. Safety Correct use FAM-RD is used as part of X-AIRCONTROL for radio-based data transmission through ducting. The data is transmitted in two directions between zone module and zone master. X-AIRCONTROL FAM-RD...
-
Page 5: Delivery And Storage
If liquid gets into the module, let the module completely dry before commissioning. Also, the radio communication between the various nodes of an X-AIRCONTROL system can be inter- rupted by interference. This, too, may lead to trans- mission losses. NOTICE! -
Page 6: Technical Data
24 V AC or DC IEC protection class III (protective extra-low voltage) Ambient temperature 10 to 50 °C Protection level IP20 CE conformity EMC directive 2014/30/EU RoHS 2011/65/EU Radio equipment directive ‘RED 2014/53/EU’ Weight 500 g X-AIRCONTROL FAM-RD... -
Page 7: Installation
ZMA / ZMO must not exceed 30 m. Fix the antenna in the middle of the duct wall (applies to rectangular ducts). Fig. 8: Use the screws to fix the bracket Fig. 5: Position on ducts X-AIRCONTROL FAM-RD... -
Page 8: Electrical Connection
Connect FAM-RD and zone master or zone module with an RJ12 cable: Type AWG26/6C RJ12 plug (6P6C) Max. length 30 m Fig. 11: Connection to zone master – data connec- tion (Modbus) and external power supply X-AIRCONTROL FAM-RD... -
Page 9: Complete Documentation
For more information on commissioning and operation please refer to the installation and operating manual. You can download the manual from our website www.troxtechnik.com. Fig. 13: Connection to zone module – data connec- tion (Modbus) and external power supply X-AIRCONTROL FAM-RD... - Page 10 X-AIRCONTROL FAM-RD...
