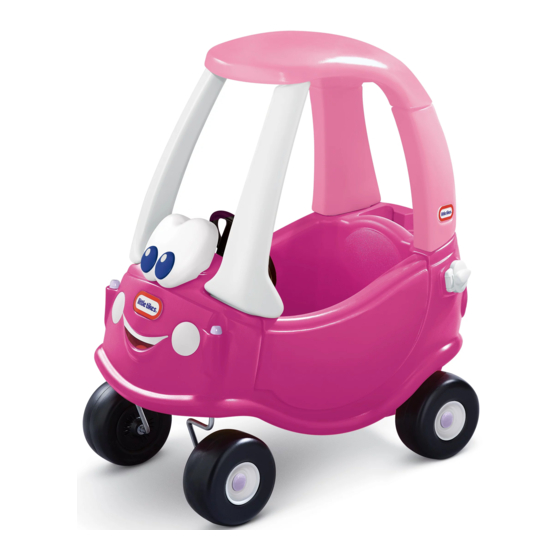

Little Tikes Cozy Coupe 173059M Assembly Instructions Manual

Little Tikes Cozy Coupe 173059M Assembly Instructions Manual

Hide thumbs Also See for Cozy Coupe 173059M:

Advertisement

Quick Links

ASSEMBLY INSTRUCTIONS
#173059M
#486180
#173059MX1
#612060M
#484513
#612060MX1
#485367
#614798P
Adult assembly required. Approx. assembly time: 50 min.
Cozy Coupe
#615795M
#621390M
#627286M
#630750M8X1
1
®
#630750MX1
#641961M
#630750MP
#641961MX1
#641954M
#644948M
#641954MX1
1
-5
1
/
2
years
XIM630750-R6 - 7/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cozy Coupe 173059M and is the answer not in the manual?

Questions and answers

Summary of Contents for Little Tikes Cozy Coupe 173059M

  • Page 1 years Cozy Coupe ® ASSEMBLY INSTRUCTIONS #173059M #486180 #615795M #630750MX1 #641961M #173059MX1 #612060M #621390M #630750MP #641961MX1 #484513 #612060MX1 #627286M #641954M #644948M #485367 #614798P #630750M8X1 #641954MX1 Adult assembly required. Approx. assembly time: 50 min. XIM630750-R6 - 7/22...
  • Page 2 © Thank you for choosing the Little Tikes Cozy Coupe®. We strive to provide a durable, easy-to-assemble toy thats made to last, giving your child years of imaginative, engaging fun! Really important information you should know! • Read through all the instructions first.
  • Page 3: Hardware Guide

    Some packages of hardware may have extras pieces. Questions? We’re here to help. Little Tikes customer service team at 1-800- 321-0183. Tools required (not included) Included in hardware pack (1). Discard after use.
  • Page 4 Door (1) Door latch (1) Roof Pillars - FRONT Roof Pillars - REAR Body (1) Roof pillars - Roof pillars - Roof pillars - Roof pillars - rear right (1) rear left (1) front right (1) front left (1) Roof (1) Rear axle (1) Gas cap (1) Eyes (2)
  • Page 5 The Little Tikes Company makes fun, high quality toys. We warrant to the original purchaser that this product is free of defects in materials or workmanship for one year * from the date of purchase (dated sales receipt is required...
  • Page 6 Ready...let’s get started...with the tail lights! Push tail lights (part N) into the Coupe body. Insert (2) tail lights (part N). Cap it! Insert gas cap (part H).
  • Page 7 Have to see where I’m going! Tool required (not included) (4) 1" (2,54 cm) Snap on Eye front (part G2). Secure Eye base (part G1) using (4) 1” (2,54cm) screws. (2) 1" (2,54 cm) Snap on Eyes (part G3). Secure using (2) 1" (2,54cm) screws.
  • Page 8 Let’s get the horn working Insert horn button (part S2) and bellows (part S1) into horn collar (part S3). Snap horn into center of steering wheel (part Q). Before installing steering wheel, apply decals 1 & 2 to dashboard.
  • Page 9: Steering Wheel

    Steering wheel...in a Click! Squeeze steering clip (part T) Steering clip should snap into MIDDLE into steering wheel (part Q). hole on each side of the steering column. Insert steering wheel through hole in dashboard AND through Make sure the steering clip the steering O ring (part P).
  • Page 10 Choose your lock! Tool required (not included) First, install door latch (part C) into door (part B) Attach using ” (1,27 cm) screw. " (1,27 cm) DOOR LOCKS TO PERMANENTLY LOCK THE DOOR AND UNLOCKS Add (1) additional 1/2” (1,27 cm) screw Next, insert door (part B) into body (part A).
  • Page 11 Roof and pillars match up! BEFORE YOU START: match roof pillars marked “L & R” to the correct side of roof also marked “L & R”. Roof Pillars - FRONT Roof Pillars - REAR FRONT pillars...Lock the door in place! Make sure the front RIGHT roof pillar sits...
  • Page 12 REAR pillars... insert, pull back, turn! BEFORE YOU START: match roof pillars marked “L & R” to the correct side of roof also marked “L & R”. PUSH DOWN Hook the ROUNDED END of the REAR roof pillar (part F1) into the roof (part D) and push down. PULL TURN Pull the REAR roof pillar, toward you to fully...
  • Page 13 2b 7c Lets put it all together! Hook the ROUNDED END of FRONT roof pillars (parts E1 & E2) into roof (part D). DO NOT insert the rear pillars yet! Rock the roof forward and the FRONT pillars (parts E1 & E2) will SNAP into place.
  • Page 14 Rear pillars- get attached (2) large fastener Line up holes in body with holes in rear roof supports to install fasteners Person 1: hold down roof assembly. Person 2: install (2) fasteners (1 each side) REAR wheels...give it a good hit! Do not hammer on surfaces or items you don’t want to...
  • Page 15 REAR wheels...get in the groove. washer wheel hubcap Slide onto rear axle (1) hubcap (M), (1) wheel (K), and (1) washer (BB). washer Slide assembled axle through rear axle guides. Slide (1) washer (BB) hubcap Slide wheel (K), then wheel hubcap (M) onto axle.
  • Page 16 REAR wheels...last step. Flip the coupe on its side. Place a (1) top hat (AA) and the top hat tool over the OPEN end of the axle. Hammer the top hat onto axle. Top hat tool Top hat Do not hammer on surfaces or items you don’t want to break, mark or dent.
  • Page 17 FRONT wheels...cont. Place the top hat, top hat then the top hat tool onto open end of axle. Hammer top hat onto the axle. REPEAT these steps for RIGHT front axle Top hat tool FRONT wheels...rolling along! First, slide washer (BB), then bushing (CC)onto assembled right axle.
  • Page 18 FRONT wheels...cont. bushing Insert bushing (CC) onto each axle and push in place IMPORTANT! Check axle positions - roll the Cozy Coupe forward - HUBCAPS SHOULD STOP FACING OUTWARD. WRONG CORRECT WRONG...
  • Page 19 Axle caps and snaps! Tall axle axle cap axle cap cap tool Insert axle cap (DD) onto Tall axle cap tool the top of each axle and hammer into place. axle cap Align slots and snap on (4) center caps (part J). Key &...
  • Page 20 LAST STEP...let’s finish with the decals! Decals must be applied to a clean, dry surface. Wipe clean with a dry rag before application. Remove air from under decals by applying pressure to the decals starting from the center, and work towards edges. NOTE: If decals bubble, prick with a pin to remove the air. Decals are located in the bottom of the cardboard box.
