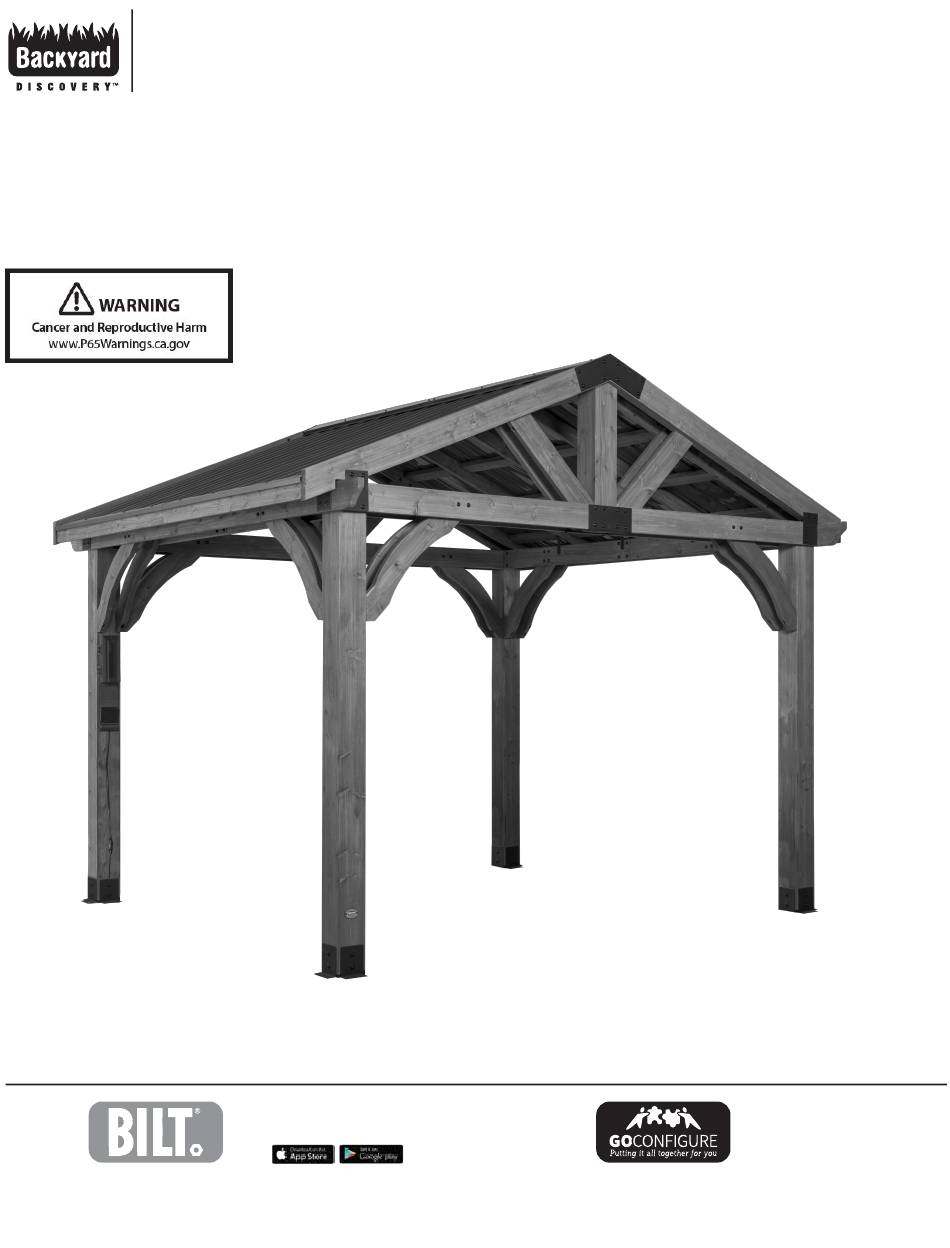

Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990

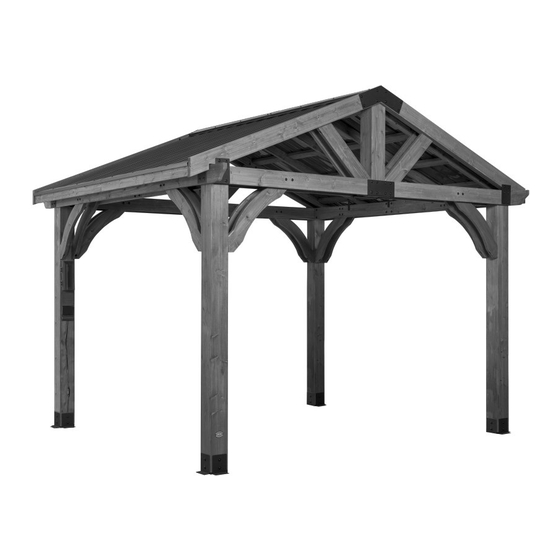

12x10 ARLINGTON GAZEBO
MODEL # : 2206106
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INSTALLATION
SERVICES
AVAILABLE!
See inside for details
INS-2206106-A-12x10 ARLINGTON-ENG 05-16-2022
*
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARLINGTON 2206106 and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery ARLINGTON 2206106

Summary of Contents for Backyard Discovery ARLINGTON 2206106

  • Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 12x10 ARLINGTON GAZEBO MODEL # : 2206106 Please visit www.backyarddiscovery.com...
  • Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. •...
  • Page 3 OWNER'S MANUAL - ANCHORING LAYOUT 10'3 1/8" 3128mm 9'8 15/16" 2970mm...
  • Page 4 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) BEAM - W4L13600 (x2) 1 3/8"x5 1/4"x63" (36x134x1600) BEAM - W4L13606 (x8) 1 3/8"x5 1/4"x64 5/8" (36x134x1640) BEAM - W4L13596 (x4) 1 3/8"x5 1/4"x35 5/8" (36x134x904) BEAM - W4L13598 1 3/8"x5 1/4"x53 7/8" (36x134x1370) (x4) ANGLE BRACE - W4L16839 1 3/8"x5 1/4"x30 1/4"...
  • Page 5 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) SHEATHING BOARD - W4L13597 (x8) 1 3/8"x3 3/8"x83 3/4" (36x86x2126) SHEATHING BOARD - W4L13601 1 3/8"x3 3/8"x35 1/4" (36x86x896) (x8) RAFTER - W4L13612 1"x3 3/8"x79 3/16" (24x86x2012) (x2) RAFTER - W4L13613 FASCIA - W4L13605 1"x3 3/8"x59 3/8"...
  • Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100829 BOLT WH BLK (x4) 5/16x9 1/2 H100765 BOLT WH 5/16x8 BLK (x26) H100354 BOLT WH 5/16x6 1/2 BLK (x18) H100194 BOLT WH BLK H100193 NUT BARREL WH BLK H100192 NUT BARREL WH BLK (x22) 5/16x2 1/2 (x42)
  • Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100201 SCREW PFH BLK H100200 SCREW PFH BLK H100391 SCREW PFH BLK (x4) (x30) 8x2-1/2 (x78) 8x1 1/2 H100392 SCREW PWH BLK H100536 SCREW PWH BLK H100120 (x17) (x33) 8x3/4 CONCRETE ANCHOR 1/4"x2" 8x1 1/4 (x18) H100833...
  • Page 8 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A100241 BYD ID TAG (SMALL) WITHOUT AGES (x1) A4M00961 ROOF BRACKET (x6) A4M00972 BRACKET (x4) A4M00979 A4M00619 BRACKET L BRACKET 66x66x127 - BLK (x4) A4M00974 (x4) BRACKET (x4) A4M00973 A4M00977 BRACKET A4M00978 POST ANCHORING PLATE...
  • Page 9 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01124 29 GA STEEL SHEETING (x8) A4M01116 RIDGE CAP 29 GA (x2) A4M00982 ROOF EDGE TRIM (x4) A4M00983 ROOF EDGE TRIM SPLICE A4M01127 (x2) RIDGE CAP SPLICE (x1) A6P00398 RIDGE CAP PROTECTOR (x2)

  • Page 10: Hardware Parts

    PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 11 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 9/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets 1/2" & 7/16" Deep Sockets Phillips Screw Driver Cordless Drill or Electric Drill Rubber Mallet - Claw Hammer...
  • Page 12 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 13 STEP 1 - GAZEBO ASSEMBLY POST - W2A03484 6"x6"x89 1/2" (152x152x2274) (x2) A6P00308 6x6 POST FOOT POST - W2A03485 (x4) 6"x6"x89 1/2" (152x152x2274) (x2)
  • Page 14 STEP 2 - GAZEBO ASSEMBLY POST - W2A03021 6"x6"x33 1/4" (152x152x845) (x2) 2' - 2" BEAM - W4L13606 L BRACKET (x8) 1 3/8"x5 1/4"x64 5/8" (36x134x1640) A4M00619 A4M00974 BRACKET A4M00972 (x4) 66x66x127 - BLK (x4) BRACKET (x4)
  • Page 15 STEP 3 - GAZEBO ASSEMBLY ANGLE BRACE - W4L16841 1 3/8"x6 3/8"x36 7/8" (34x163x938) (x7) CA01 CORBEL WITH TAG- W2A03480 (x1) 1 3/8"x6 3/8"x36 7/8" (34x163x938)
  • Page 16 STEP 4 - GAZEBO ASSEMBLY BEAM - W4L13598 1 3/8"x5 1/4"x53 7/8" (36x134x1370) (x4)
  • Page 17 STEP 5 - GAZEBO ASSEMBLY BEAM ASSEMBLY FROM PREVIOUS STEP...
  • Page 18 STEP 6 - GAZEBO ASSEMBLY BEAM - W4L13600 (x2) 1 3/8"x5 1/4"x63" (36x134x1600) BEAM - W4L13596 ANGLE BRACE - W4L16840 (x4) 1 3/8"x5 1/4"x35 5/8" (36x134x904) 1 3/8"x6 3/8"x36 7/8" (34x163x938) (x4)
  • Page 19 STEP 7 - GAZEBO ASSEMBLY BEAM ASSEMBLY FROM PREVIOUS STEP A4M00979 BRACKET (x4)
  • Page 20 STEP 8 - GAZEBO ASSEMBLY ANGLE BRACE - W4L16840 1 3/8"x6 3/8"x36 7/8" (34x163x938) (x4)
  • Page 21 STEP 9 - GAZEBO ASSEMBLY END RAFTER - W2A03020 2 13/16"x5 1/4"x80 5/8" (72x134x2048) (x2) END RAFTER - W2A03022 ANGLE BRACE - W4L16839 (x2) 2 13/16"x5"x80 5/8" (72x134x2048) 1 3/8"x5 1/4"x30 1/4" (36x134x769) (x4)
  • Page 22 STEP 10 - GAZEBO ASSEMBLY A4M00973 BRACKET (x2)
  • Page 23 STEP 11 - GAZEBO ASSEMBLY RAFTER - W4L13612 1"x3 3/8"x79 3/16" (24x86x2012) (x2) OUTSIDE RAFTER - W4L13604 1 3/8"x3 3/8"x77 3/8" (36x86x1965) (x4) FASCIA - W4L13605 1"x3 3/8"x59 3/8" (24x86x1507) (x4) RAFTER - W4L13603 1 3/8"x3 3/8"x77 3/8" (36x86x1965) (x6) RAFTER - W4L13613 1"x3 3/8"x27 5/16"...
  • Page 24 STEP 12 - GAZEBO ASSEMBLY SHEATHING BOARD - W4L13597 1 3/8"x3 3/8"x83 3/4" (36x86x2126) (x8) SHEATHING BOARD - W4L13601 1 3/8"x3 3/8"x35 1/4" (36x86x896) (x8)
  • Page 25 STEP 13 - GAZEBO ASSEMBLY...
  • Page 26 STEP 14 - GAZEBO ASSEMBLY A4M01124 29 GA STEEL SHEETING (x4)
  • Page 27 STEP 15 - GAZEBO ASSEMBLY A4M01124 29 GA STEEL SHEETING (x4)
  • Page 28 STEP 16 - GAZEBO ASSEMBLY A4M00983 ROOF EDGE TRIM SPLICE (x2) A4M00982 ROOF EDGE TRIM (x4)
  • Page 29 STEP 17 - GAZEBO ASSEMBLY...
  • Page 30 STEP 18 - GAZEBO ASSEMBLY...
  • Page 31 STEP 19 - GAZEBO ASSEMBLY...
  • Page 32 STEP 20 - GAZEBO ASSEMBLY ANGLE BRACE - W4L13607 (x4) 1 3/8"x5 1/4"x32 3/8" (36x134x823)
  • Page 33 STEP 21 - GAZEBO ASSEMBLY A4M00961 ROOF BRACKET (x6)
  • Page 34 STEP 22 - GAZEBO ASSEMBLY A4M01127 RIDGE CAP SPLICE (x1) A4M01116 RIDGE CAP 29 GA (x2)
  • Page 35 STEP 23 - GAZEBO ASSEMBLY RIDGE CAP STIFFENER - W4L17390 (x2) 1"x2 3/8"x47 5/8" (24x60x1210) A6P00398 RIDGE CAP (x2) RIDGE CAP STIFFENER - W4L17391 PROTECTOR 1"x2 3/8"x69 1/4" (24x60x1760) (x2)
  • Page 36 STEP 24 - GAZEBO ASSEMBLY RIDGE CAP ASSEMBLY FROM PREVIOUS STEP...
  • Page 37 STEP 25 - GAZEBO ASSEMBLY A4M00977 A4M00978 POST ANCHORING PLATE POST PLATE (x8) (x8)
  • Page 38 STEP 26 - GAZEBO ASSEMBLY A100241 BYD ID TAG (SMALL) WITHOUT AGES (x1)
  • Page 39 STEP 27 - GAZEBO ASSEMBLY...

  • Page 40: Step 28 - Electrical Enclosure

    STEP 28 - ELECTRICAL ENCLOSURE FOR ELECTRICAL ENCLOSURE INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COMES PACKAGED WITH THE ELECTRICAL ENCLOSURE KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
