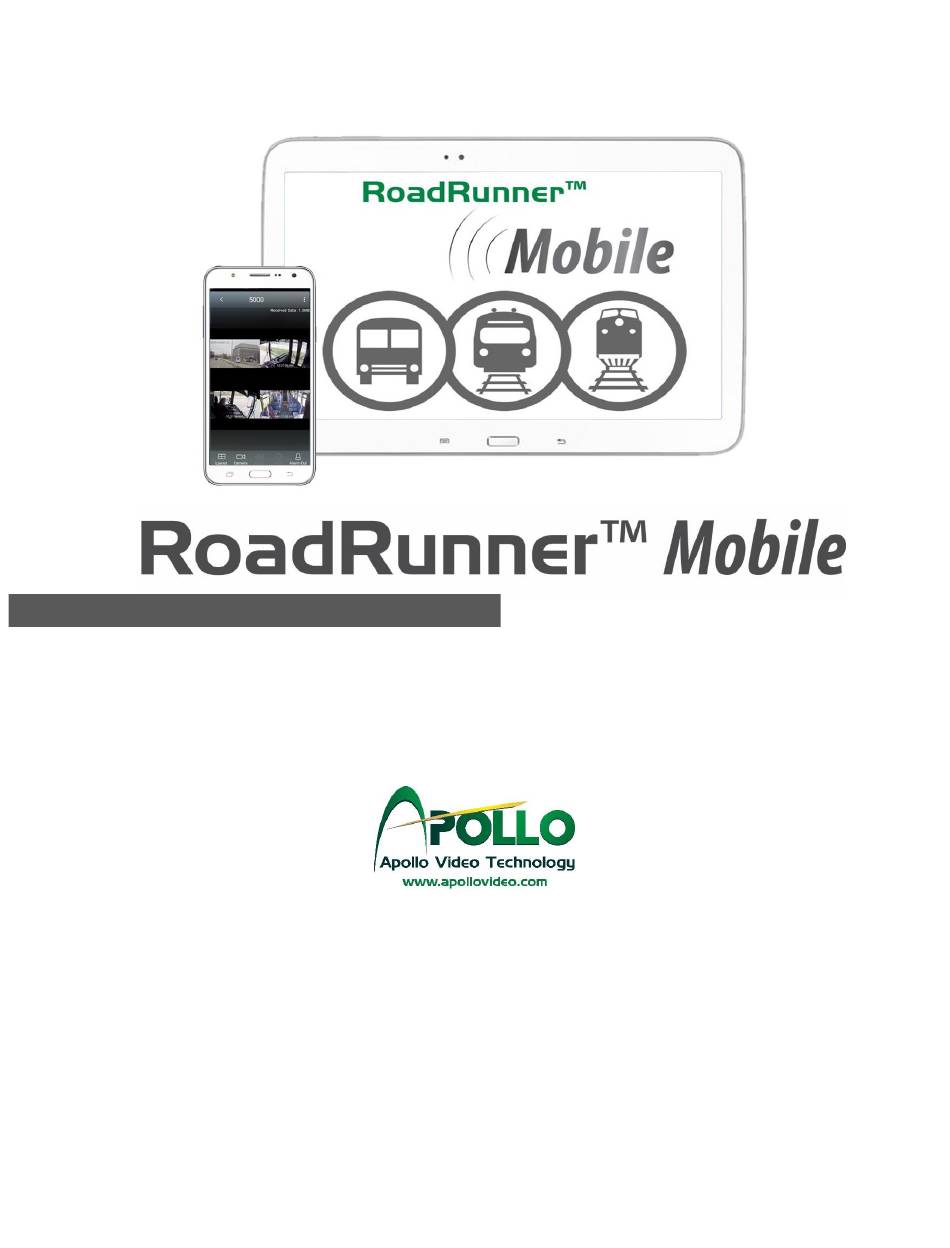

- Page 1 Mobile App for Android Mobile Digital Video Systems ® User Guide and Instruction Manual, Version 3.6.11...
- Page 2 RoadRunner Mobile | User Guide This page left intentionally blank Apollo Video Technology 24000-35 Avenue Southeast, Bothell, WA 98021 Toll Free: 888-AVT-USA1; Tel: 425.483.7100; Fax: 425.483.7200 www.apollovideo.com Page 2...
-
Page 3: Table Of Contents
RoadRunner Mobile | User Guide Table of Contents Introduction ..............................4 Installation ..............................4 Site Registration ............................4 3.1. Add Site ................................4 3.2. Delete Site ............................... 6 “Live” Viewing ............................... 6 4.1. Live Operations ..............................7 Playback / Search ............................8 Search Options .............................. -
Page 4: Introduction
Apollo Video Technology's RoadRunner™ Mobile App provides remote live and pre-recorded video access to any networked RoadRunner™ or RoadRunner HD™ Recorder. Ideal for portable remote monitoring and maintenance of video camera systems on transit buses, trains, and light rail vehicles, RoadRunner Mobile is compatible with any TCP/IP (Wi-Fi or cellular) based network. -
Page 5: Figure 4, 5, 6, 7: Adding A New Site
Enter the IP address and the port numbers of the Recorder in the “Address” and “Watch Port” fields (Figure 6). NOTE: The default port for Apollo RoadRunner Recorders is: 8200 Enter the User ID and Password used to log in o the Recorder within the “Accounts” fields (Figure 7). -
Page 6: Delete Site
RoadRunner Mobile | User Guide Delete Site 3.2. Select the Menu icon ( ) (Figure 9). Select “Delete Site” (Figure 10). Select the desired sites that you wish to delete with their respective check boxes, then select “Delete” at the bottom of the screen (Figure 11). -
Page 7: Live Operations
NOTE: The layout or camera channel cannot be changed while in two-way audio mode. Changing the camera channel will automatically disable the two-way audio mode. NOTE: Apollo Recorders currently do not support two-way audio communication but may be provided in a later update. -
Page 8: Playback / Search
RoadRunner Mobile | User Guide “Live” Viewing Features Figure 15 Figure 16 Figure 17 Figure 18 5.0 Playback / Search Select the desired Site and select Search in the menu. Video recorded from the Recorder will display on the screen in single-camera view only (Figures 19-21). -
Page 9: Search Options
RoadRunner Mobile | User Guide Search Options 5.1. Return/Back: Releases the Recorder connection and returns to the site’s start menu. NOTE: The Back button is only displayed while in portrait mode. Screen: Supports single-screen layout only. NOTE: Tapping a camera screen shows/hides OSD (On Screen Display). -
Page 10: Figure 22, 23, 24: Event Search
RoadRunner Mobile | User Guide Event Search Figure 22 Figure 23 Figure 24 5.1.2. Calendar Search Select the “Go To” icon to search video recorded from a specific date and time (Figures 25-26). Dates displaying an underscore contain recording data. Select a date from the calendar to view the Time Lapse graph of the available recording represented in one-hour increments. -
Page 11: Set-Up
RoadRunner Mobile | User Guide 6.0 Set-Up Select the Settings icon to make necessary changes to the RoadRunner Mobile app (Figures 27-28). FEN Server: If the device is using a FEN server, enter the FEN server information. NOTE: Default site: fed.dvrnames.net. Default Port number: 10088.
