Summary of Contents for LS iP5A

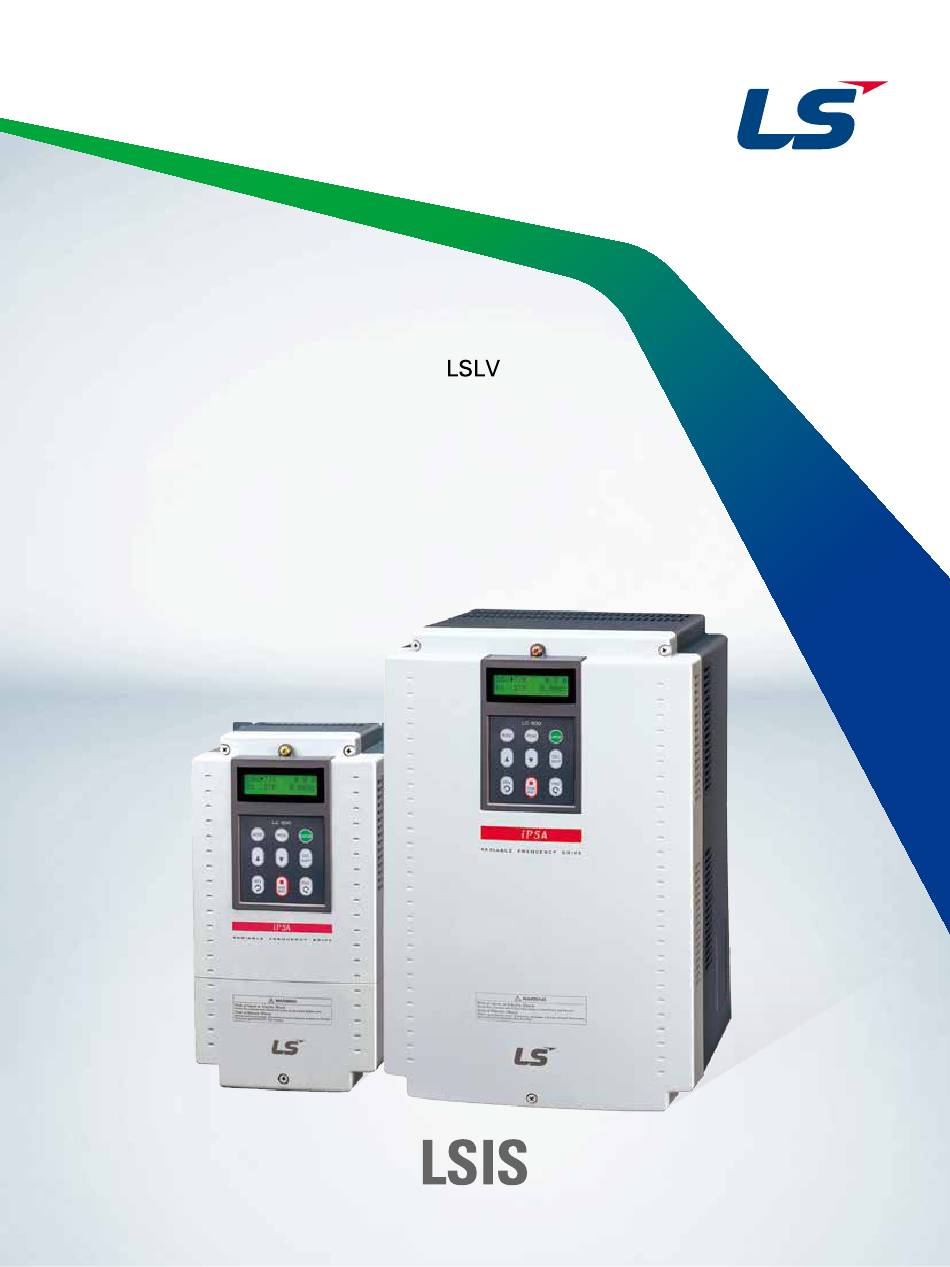

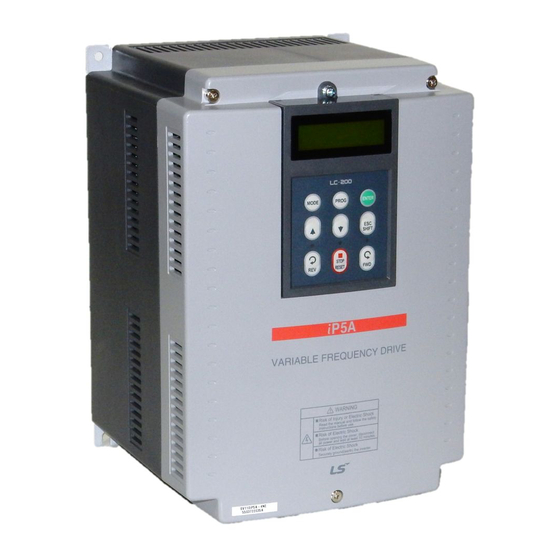

- Page 1 Fan and Pump AC Drive 0.75~30kW(1~40HP) 3-Phase 200~230V 0.75~450kW(1~700HP) 3-Phase 380~480V 5.5~110kW(7.5~150HP) 3-Phase 525~600V...
- Page 2 STARVERT iP5A LS Starvert SV-iP5A has been specifically designed and created to provide competitive solutions for fan and pump applications...
-
Page 3: User-Friendly Interface
Industrial Drive for Fan and Pump STARVERT iP5A User-friendly STARVERT Energy Intelligent Specialized Marine Type Interface iP5A Control Saving and High Functions for Certification and Easy Efficiency Mechanism Fan and Pump From DNV Maintenance C o n t e n t s Overview Model &... -
Page 4: Pid Control
Where external or cascaded PID control is required, the built-in dual PID algorithm of the iP5A can be utilized to satisfy various system requirements. Multi Motor Control (0.75~450kW) The iP5A MMC function provides cost-effective, simultaneous control of up to eight motors, without requiring external controllers. Marine Type Certification From DNV... - Page 5 Flying Start Function When 2 or more fans, or a high inertia load are connected to the drive, the iP5A detects the motor speed after a momentary power failure, enabling the motors to be smoothly reaccelerated without mechanical and electrical shock- loading to the system.
-
Page 6: Intelligent Control
Consumed energy Safety Stop During unexpected power failure conditions, the iP5A can bring the load to a controlled stop, by utilizing the inertial energy. This can prevent further process problems or accidents. Current Leakage Reduction Algorithm Zero vector Zero vector Under damp conditions, leakage currents can occur when using drives. - Page 7 Industrial Drive for Fan and Pump STARVERT iP5A User-friendly Keypad & Easy Maintenance The iP5A construction allows for easy maintenance, with ease-of-access to all components. Easy Start When pushing ‘STOP’ key for 2~3 seconds in case drive turns on, the drive turns into ‘Easy Start Mode’...
-
Page 8: Model & Type
Model & Type 380~480V Class Motor Rating 200~230V Class 380~480V Class 525~600V Class (Classification) 0.75kW (1HP) SV008iP5A-2NE SV008iP5A-4NE 1.5kW (2HP) SV015iP5A-2NE SV015iP5A-4NE 2.2kW (3HP) SV022iP5A-2NE SV022iP5A-4NE 3.7kW (5HP) SV037iP5A-2NE SV037iP5A-4NE 5.5kW (7.5HP) SV055iP5A-2NE SV055iP5A-4NE SV055iP5A-4NE (CLASS) SV055iP5A-6 7.5kW (10HP) -
Page 9: Standard Specifications
I) is based on 220V for 200V class and 460V for 400V class. Indicates the maximum applicable capacity when using a 4-Pole LS motor. Maximum output voltage will not exceed the input voltage. An output voltage less than the input voltage may be programmed if necessary. - Page 10 Rated capacity (v 3 X V X I) is based on 220V for 200V class and 460V for 400V class. Indicates the maximum applicable capacity when using a 4-Pole LS motor. Maximum output voltage will not exceed the input voltage. An output voltage less than the input voltage may be programmed if necessary.
-
Page 11: Frequency Accuracy
Industrial Drive for Fan and Pump STARVERT iP5A Common Specifications Cooling method Forced air cooling (Self-cooling for below 1.5kW-2, 2.2kW-4) Control Method V/F, Sensorless Vector, Slip Compensation, Easy Start Selectable Digital Reference: 0.01 Hz (Below 100 Hz), 0.1 Hz (Over 100 Hz) Frequency Setting Resolution Analog Reference: 0.01 Hz / 60 Hz... - Page 12 Standard Specifications Common Specifications (External) 32 character display Keypad All units keypad Download and Upload available 2m, 3m and 5m long keypad cable enables users Remote cable Optional Remote to control the drive from a distant area To enhance the regenerative braking performance,...
-
Page 13: Control Circuit
Industrial Drive for Fan and Pump STARVERT iP5A Wiring For 0.75~30kW (1~40HP) Main Power Circuit Dynamic Braking Unit DC Bus Choke DB Unit (Optional) (Optional) (Optional) DB Resistor P N B1 B2 DC Bus Choke DB Resistor P1 (+) P2 (+) N (-) - Page 14 Wiring For 37~90kW (50~125HP) / 315~450kW (400~600HP) Main Power Circuit Dynamic Braking Unit DC Bus Choke DB Unit (Optional) (Optional) (Optional ) DB Resistor P N B1 B2 DC Bus Choke DB Resistor P1 (+) P2 (+) N (-)
-
Page 15: Main Power Circuit
Industrial Drive for Fan and Pump STARVERT iP5A For 110~280kW (150~350HP) Main Power Circuit Dynamic Braking Unit DB Unit (Optional) (Optional) DB Resistor P N B1 B2 DB Resistor P2 (+) N (-) MCCB (Option) DC Reactor (Built-in) R (L1) 3 Ø... - Page 16 Wiring For 15~30kW (20~40HP) Built-in DCL Type P N B1 B2 DB Resistor P (+) N (-) DC Reactor R (L1) 3 Ø Motor AC Input S (L2) 50/60 Hz T (L3) For 37~90kW (50~125HP) Built-in DCL Type...
- Page 17 Industrial Drive for Fan and Pump STARVERT iP5A Terminal Configurations (Power Circuit Terminal) 0.75~30kW (1~40HP) <200V/400V/600V Class> (--) R ( L1 ) S ( L2 ) T ( L3 ) Jumper 37~90kW (50~125HP) / 315~450kW (400~600HP) <400V/600V Class> (--) R ( L1 ) S ( L2 ) T ( L3 ) Jumper 15~18.5kW (20~25HP) <Built-in DC Reactor Type, 400V Class>...
- Page 18 Terminal Configurations (Power Circuit Terminal) Grounding Drive Capacity Grounding wire Sizes, AWG or kcmil (mm 200V Class 400V Class 600V Class 5.5 ~ 7.5 7.5 ~ 10 10 (5.5) 12 (3.5) 14 (2.5) 11 ~ 15 15 ~ 20...
- Page 19 Industrial Drive for Fan and Pump STARVERT iP5A Terminal Configurations (Control Circuit Terminal) 0.75~30kW / 1~40HP (200V/400V Class) C+ CM C- 24 M7 M8 B0 5G 5G S0 S1 3A 3C 3B A1 C1 A2 C2 A3 C3 A4 C4...
- Page 20 Terminal Configurations (Control Circuit Terminal) Type Symbol Name Description Programmable Defines programmable digital inputs M1, M2, M3 Digital Input 1, 2, 3 (Factory setting : Multi-step frequency 1,2,3) Forward Run FX [M7] Forward run when closed and stopped when open...
- Page 21 Industrial Drive for Fan and Pump STARVERT iP5A iP5A provides Sink/Source (NPN/PNP) modes for sequence input terminal on the control circuit. The logic of the input terminal is settable to Sink mode (NPN mode)/Source mode (NPN mode) by using the J1 switch.
-
Page 22: Programming Keypad
Programming Keypad LCD Loader Data set up start 32 character, background ● light, LCD display. Background tone is adjustable. Shift between function ● groups Data set up completion ● Shifting from group code to ● the upper code Shift to function code ●... - Page 23 Industrial Drive for Fan and Pump STARVERT iP5A Programming Keypad (Parameter Navigation) Parameter group moves directly to DRV group by pressing [SHIFT] key in any parameter code. Drive Group FU1 Group FU2 Group I/O Group Drive Starvert iP5A Series...
