T-CELL-5

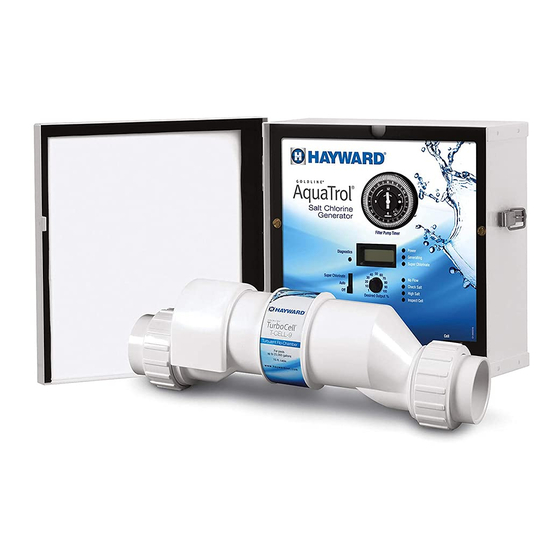

Replacement cell for Aqua Trol Above-Ground Pool Automation
REGISTRATION NUMBER 28593, PEST CONTROLPRODUCTS ACT. This cell must only be used on
this model of chlorine generating device.
KEEP OUT OF REACH OF CHILDREN
Read the Label, the Installation and Operation Manual of the Aqua Trol Above-Ground Pool
Automation before using.
Hayward Pool Products Canada Inc.
2880 Plymouth Drive
Oakville, ON L6H 5R4
1-888-238-7665 (POOL)
Advertisement
Table of Contents
Related Manuals for Goldline AquaTrol
Summary of Contents for Goldline AquaTrol
- Page 1 2019-2628 2019-10-10 T-CELL-5 Replacement cell for Aqua Trol Above-Ground Pool Automation REGISTRATION NUMBER 28593, PEST CONTROLPRODUCTS ACT. This cell must only be used on this model of chlorine generating device. KEEP OUT OF REACH OF CHILDREN Read the Label, the Installation and Operation Manual of the Aqua Trol Above-Ground Pool Automation before using.
- Page 2 2019-2628 2019-10-10 Wiring Both the Turbo Cell and flow switch use plug-in connectors to attach to the Aqua Trol Above- Ground Pool Automation. Be sure that the panels are not removed on the control when attaching cables. Turbo Cell Refer to the diagrams below for proper location of each control's plug-in location. Flow Switch Refer to the diagrams below for proper location of each control's plug-in location.
- Page 3 2019-2628 2019-10-10 Compatibility The T-Cell-5 electrolytic chlorine generator cell is designed to work with the Aqua Trol Above- Ground Pool Automation, PCP 28593. The kit includes a Turbo Cell, flow switch, and 5 cm (2") cell unions for installation. Plumbing Turbo Cell The Turbo Cell (used for chlorine generation) should be plumbed AFTER the filter and heater.
- Page 4 2019-10-10 A q u a T r o l Above-Ground Pool Automation Goldline Controls Inc. A Hayward Company CONTROLS BACTERIA AND ALGAE In Swimming pool Waters DOMESTIC A maximum of 67,500 L of water can be treated with one Aqua Trol Above-Ground Pool Automation.
- Page 5 2019-2628 2019-10-10 IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, basic safety precautions should always be followed, including the following: □ READ AND FOLLOW ALL INSTRUCTIONS □ KEEP OUT OF REACH OF CHILDREN □ Warning: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.
-
Page 6: Table Of Contents
2019-2628 2019-10-10 Table of Contents OPERATION The Aqua Trol Above-Ground Pool Automation ……………….………………..1 Recommended water parameters ....…………………………………... 1 Controls ………………………………………………………………………………..6 Maintenance………………………………………………………………………...…8 INSTALLATION Mounting……………………………………………………………………………... 9 Plumbing………………………………………………………………………………10 Wiring………………………………………………………………………………….11 TROUBLESHOOTING Troubleshooting…………………………………………………………………….. 13 WARRANTY Warranty……………………………………………………………………………... 15... -
Page 7: The Aqua Trol Above-Ground Pool Automation
2019-2628 2019-10-10 OPERATION The Aqua Trol Above-Ground Pool Automation is an automatic chlorine generation system with a built-in filter pump timer designed specifically for above ground pools. The operation requires a low concentration of salt (sodium chloride) in the pool water at levels low enough that it normally will not be tasted. - Page 8 Total Alkalinity 100 – 120 ppm Calcium 200 – 300 ppm hardness Salt 2700 – 3400 ppm Cyanuric Acid 30 100 ppm (Goldline recommends 80 ppm) (Stabilizer) Metals 0 ppm (ideal) Saturation -0.2 to 0.2 (0 Best) Index Saturation index The saturation index (Si) relates to the calcium and alkalinity in the water and is an indicator of the pool water "balance".
- Page 9 2019-2628 2019-10-10 Salt Level Use the chart on page 4 to determine how much salt in Kgs (or lbs) needs to be added to reach the recommended levels. Use the equations below (measurements are in meters/liters and feet/gallons) if pool size is unknown. The ideal salt level is between 2700-3400 ppm (parts per million) with 3200 ppm being optimal.
- Page 10 2019-2628 2019-10-10 Kg (Pounds) of salt needed for 3200ppm Liters and (Gallons) of pool water Current salt level 22 500 30 000 37 500 45 000 52 500 60 000 67 500 (6 000) (8 000) (10 000) (12 000) (14 000) (16 000) (18 000)
- Page 11 2019-2628 2019-10-10 Stabilizer (Cyanuric Acid Always check stabilizer (cyanuric acid), when checking salt. These levels will most likely decline together. Use the chart below to determine how much stabilizer must be added to raise the level to 80 ppm. Kg (Pounds) of stabilizer (Cyanuric Acid) needed for 80ppm Liters (Gallons) of pool water Current stabilizer...
-
Page 12: Controls
2019-2628 2019-10-10 Controls Timer The pool filter pump should run long enough to circulate the entire volume of pool water each day. This will vary depending on pump size, pool plumbing and pool size. Consult a local pool store to help determine the appropriate run time for your pool. Set the Aqua Trol Above-Ground Pool Automation's timer by rotating the clock hands in a clockwise direction. - Page 13 2019-2628 2019-10-10 NO FLOW When illuminated, the flow switch has detected no flow and the Aqua Trol Above- Ground Pool Automation has stopped generating chlorine. A flashing LED indicates a 15/60 second time delay period. TEST SALT LEVEL When flashing, the salt level is low (below 2700ppm) and Aqua Trol Above-Ground Pool Automation is generating at low efficiency.
-
Page 14: Maintenance
2019-2628 2019-10-10 Maintaining the Aqua Trol Above-Ground Pool Automation To maintain maximum performance, it is recommended that you open and visually inspect the cell every 3 months or after cleaning your filter. The Aqua Trol Above-Ground Pool Automation will remind you to do this by flashing the "Inspect Cell" LED after approximately 500 hours of operation. -
Page 15: Installation
2019-2628 2019-10-10 INSTALLATION Installation must be performed in accordance with Local and NEC codes. Preparing Pool Water Refer to page 2 for recommended chemical levels. The pool's chemistry must be balanced BEFORE activating the Aqua Trol Above-Ground Pool Automation. NOTE: If the pool does not have new water, add 1 quart (1 liter) of metal remover and 1 quart (1 liter) of non-copper based algaecide to the pool, per manufacturer’s instructions. -
Page 16: Plumbing
2019-2628 2019-10-10 Plumbing Return Jet installation: Unscrew the hose adaptor from the pool return jet fitting and, in its place, screw in the right-angle cell mounting adaptor. Note that this installation does NOT require a flow switch--however it is very important that the cell be mounted vertically directly below the return jet in order to allow the gases produced in the cell to naturally dissipate in the pool. -
Page 17: Wiring
2019-2628 2019-10-10 Wiring Power must be shut off at the circuit breaker before performing any wiring. Be sure to follow Local and NEC/CEC electrical codes. The Aqua Trol Above-Ground Pool Automation has been designed to easily wire into typical above ground pool systems. To provide safe operation, the Aqua Trol Above-Ground Pool Automation must be properly grounded and bonded. - Page 18 2019-2628 2019-10-10 Bonding A lug used for bonding is attached to the bottom of the Aqua Trol Above-Ground Pool Automation enclosure. Connect to the pool bonding system using minimum 6 AWG copper wire if required by code. Pump Output The Aqua Trol Above-Ground Pool Automation's filter pump output is rated at 120 VAC, 15A max.
-
Page 19: Troubleshooting
2019-2628 2019-10-10 Troubleshooting Contact Hayward Canada for helpful information on operation, maintenance and troubleshooting your Aqua Trol Above-Ground Pool Automation. You may also call for technical assistance at 1-888-238-7665 (POOL) Technicians at the factory are available from 8:30 AM to 5:00 PM Eastern Standard Time, Monday through Friday. Be sure to have the following information when you call: 1. - Page 20 2019-2628 2019-10-10 5. "No Flow" LED illuminated The Aqua Trol Above-Ground Pool Automation has sensed a no flow condition and has stopped generating chlorine. Check that the flow switch is plugged into the connector on the bottom of the control unit and that the wire is not cut or damaged. Make sure you have at least 30 mm (12") of straight pipe before the flow switch.
- Page 21 Goldline installation instructions and specifications provided with the product. If written proof of the date of the initial system installation is not provided to Goldline, the manufacturing datecode on the Aqua Trol Above-Ground Pool Automation electronics unit will be the sole determinant of the date of the initial system installation.
- Page 22 RESPONSIBLE FOR ANY CONSEQUENTIAL, SPECIAL OR INCIDENTAL DAMAGES OF ANY NATURE WHATSOEVER. NO WHOLESALER, AGENT, DEALER, CONTRACTOR, OR OTHER PERSON IS AUTHORIZED TO GIVE ANY WARRANTY ON BEHALF OF GOLDLINE CONTROLS, INC. THIS WARRANTY IS VOID IF THE PRODUCT HAS BEEN ALTERED IN ANY...
- Page 23 2019-2628 2019-10-10 Questions? Visit your local Authorized Aqua Trol Above-Ground Pool Automation Dealer or call 1-888-238-7665 (POOL) for assistance.
- Page 24 2019-2628 2019-10-10...
