Summary of Contents for Goldline aqua trol

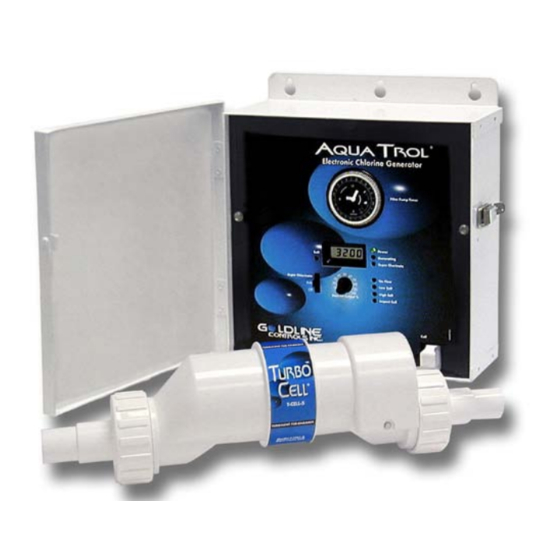

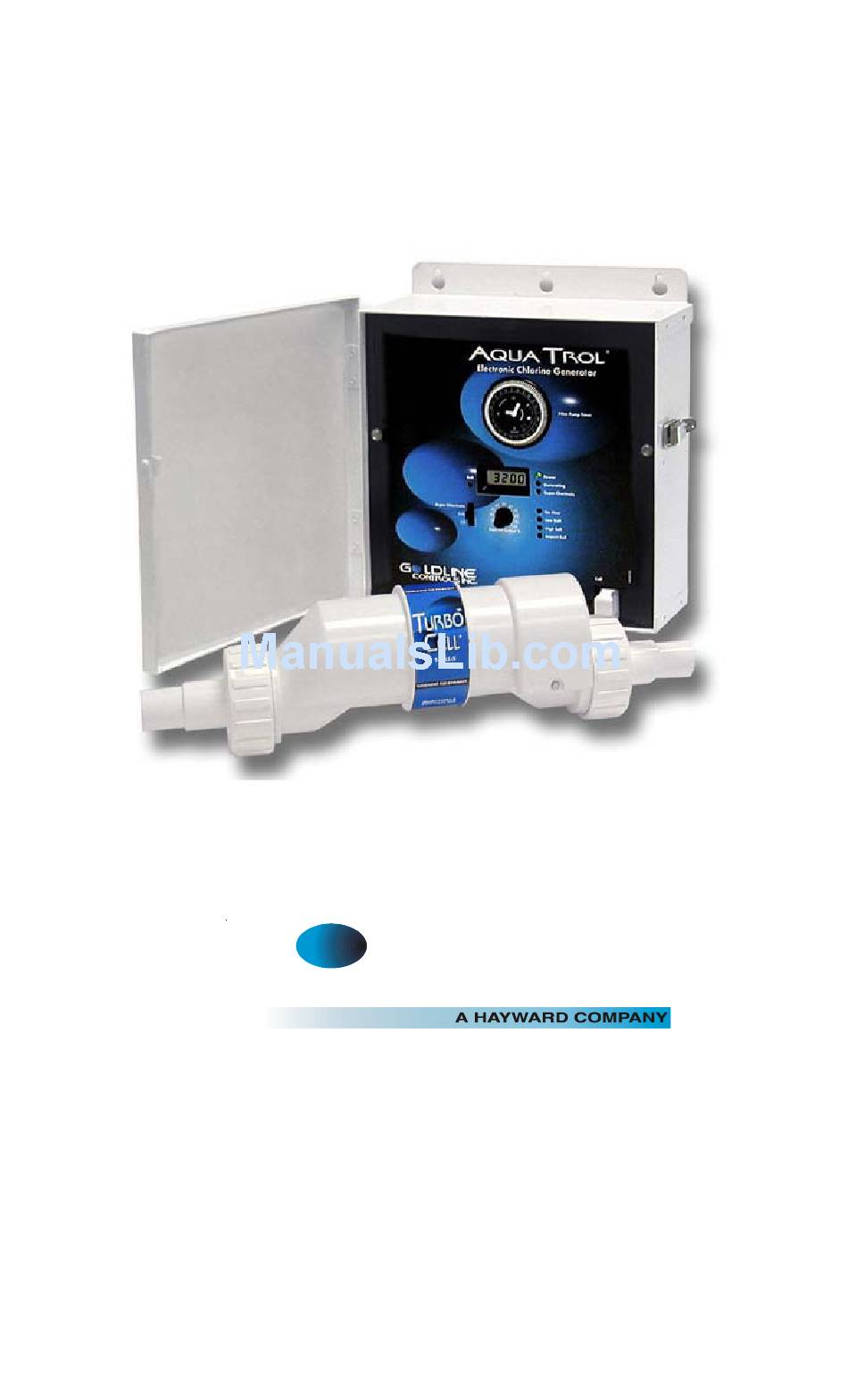

  • Page 1 Aqua Trol Aqua Trol Aqua Trol Aqua Trol Aqua Trol ® Above-Ground Pool Automation LINE ON TROLS www.goldlinecontrols.com 888-921-POOL...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS When using this electrical equipment, basic safety pre- cautions should always be followed, including the follow- ing: READ AND FOLLOW ALL • INSTRUCTIONS • Disconnect all AC power during installation. • Warning - To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.
  • Page 3: Table Of Contents

    Table of Contents OPERATION OPERATION OPERATION OPERATION OPERATION The Aqua Trol The Aqua Trol ..The Aqua Trol The Aqua Trol The Aqua Trol ................1 ..® ® ® ® ® Water Chemistry..Water Chemistry..Water Chemistry..............1 Water Chemistry..
  • Page 4: Operation

    (not evapora- tion). The Aqua Trol incorporates a built in timer to control the pool filter. This timer insures that the proper daily filtration and sanitization occurs. The Aqua Trol is designed to handle the purification needs of the average residential above ground swimming pool of up to 18,000 gallons (67,500 liters).
  • Page 5 Test your water periodically. Your local pool store can provide you with the chemicals and procedures to adjust the water chemistry. Be sure to tell the pool store that you are using an Aqua Trol chlorine generator. Saturation index The saturation index (Si) relates to the calcium and alkalinity in the water and is an indicator of the pool water "balance".
  • Page 6 A high salt ® level can cause the Aqua Trol to shutdown and may begin to give a salty taste to your pool (generally, the salt will begin to be tasted at a level of about 3500-4000 ppm).
  • Page 7 POUNDS and (Kg) OF SALT NEEDED FOR 3200 PPM Gallons and (Liters) of Pool/Spa water Current salt level 10,000 12,000 14,000 16,000 18,000 6,000 8,000 (30,000) (37,500) (45000) (52,500) (60,000) (67,500) (22,500) (73) (194) (97) (121) (145) (170) (218) (69) (91) (114) (136)
  • Page 8 Stabilizer (Cyanuric Acid Always check stabilizer (cyanuric acid), when checking salt. These levels will most likely decline together. Use the chart below to determine how much stabi- lizer must be added to raise the level to 80 ppm. POUNDS and (Kg) OF STABILIZER (CYANURIC ACID) NEEDED FOR 80 PPM Gallons and (Liters) of Pool/Spa water Current...
  • Page 9: Controls

    OFF: The OFF position prevents the Aqua Trol from energizing the electro- lytic cell. In this position there is no chlorine generation. NOTE: To service any of the pool equipment or the Aqua Trol, turn the power off at the circuit breaker.
  • Page 10 Aqua Trol is generating at low efficiency. When illuminated steady, the salt level is too low and Aqua Trol has shut down. Before adding large quan- tities of salt, it is advisable to have your salt level professionally checked.
  • Page 11: Maintenance

    To maintain maximum performance, it is recommended that you open and visually inspect the cell every 3 months or after cleaning your filter. The Aqua Trol will remind you to do this by flashing the "Inspect Cell" LED after approximately 500 hours of operation.
  • Page 12: Installation

    The control is designed to mount vertically on a flat surface. Because the enclo- sure also acts as a heat sink (disperses heat from inside the box), it is important not to block the four sides of the control. Do not mount the Aqua Trol in a panel or tight enclosed area.
  • Page 13: Plumbing

    The cell and flow switch (not used on -RJ systems) are plumbed in the return line to the pool. Install after (downstream) all the pool equipment (filter, heater, so- lar, etc.). The kit included in the Aqua Trol provides the necessary plumbing components for either 2" (51mm) rigid PVC piping installation or 1½ - 1¼"...
  • Page 14: Wiring

    Power must be shut off at the circuit breaker before performing any wiring. Be sure to follow Local and NEC/CEC electrical codes. The Aqua Trol has been designed to easily wire into typical above ground pool systems. To provide safe operation, the Aqua Trol must be properly grounded and bonded.
  • Page 15 Pump Output The Aqua Trol's filter pump output is rated at 120 VAC, 15 A max. Check the electrical rating marked on the pump motor. Connecting a pump with a higher amperage rating may result in permanent damage to the Aqua Trol. The 120 VAC standard or twist lock pump receptacle is located outside, on the bottom of the enclosure.
  • Page 16: Troubleshooting

    Check to make sure 120VAC input power is connected to the Aqua Trol control. Verify input voltage with a voltmeter. If there is input power, the fuse may have blown. The Aqua Trol is protected by a 20 amp mini ATO fuse located on the circuit board above the cell connector.
  • Page 17 Take a sample of your pool water to your local Authorized Aqua Rite Dealer and have the salt level tested. No salt test is completely accurate and the test results may vary from the salt level on the Aqua Trol display. If salt level is low, add salt according to chart on page 4.
  • Page 18 Goldline, the manufacturing datecode on the Aqua Rite, Aqua Rite Pro, Aqua Trol, Aqua Logic and Pro Logic electronics unit will be the sole determinant of the date of the initial system installation.
  • Page 20 Refer to section in manual. Questions? www.goldlinecontrols.com Refer to for latest manual revisions, additional information and helpful service. Or, you may visit your local Authorized Aqua Trol Dealer or call 888- ® 921-POOL (7665) for assistance. LINE ON TROLS North Kingstown, RI 02852 USA...
