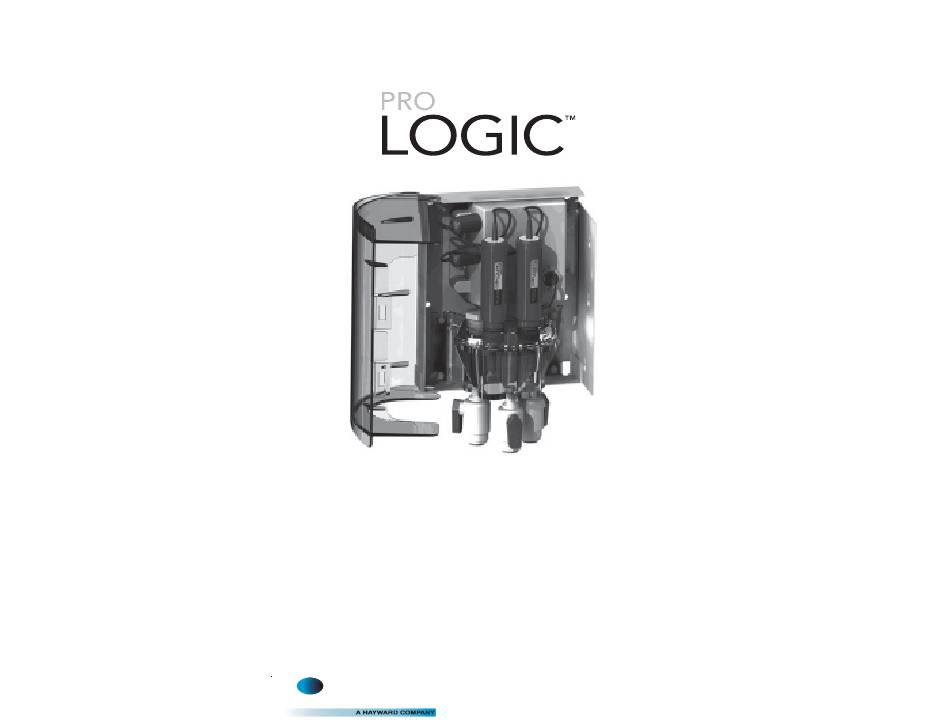

- Page 1 ORP & pH Sensing Kit Installation and Operation Manual AQL-CHEM February 2008 LINE Download and use the latest manual at: ON TROLS www.goldlinecontrols.com...
-
Page 2: What's Included
Logic controls using the AQL-CL chlorination kit, the AQL-CHEM offers automatic chlorine generation based on the pool's ORP level. The AQL-CHEM is not compatible with the Aqua Rite and Aqua Logic series of controls. An upgrade kit (AQL-CHEM-UPG) is available for use with some older Aqua Logic products using the AQL-CL chlorination kit. -
Page 3: Materials Needed For Installation
3 mounting holes through the Pro Logic enclosure. A drill template is included with the AQL-CHEM to assist with the positioning of the holes. After drilling, be sure to remove any burrs and brush away any metal shavings. Route... - Page 4 For easiest installation, fasten the nylon lock nut loosely, then slip the bracket keyhole slots over the bolt head and tighten. After installation, coil excess cable in the AQL-CHEM and/or Pro Logic enclosures. Refer to the diagram below.
- Page 5 Plumbing the Probe Cell to the pool plumbing The Probe Cell requires connection to the pool plumbing using the supplied flex tubing. Two ports on the Probe Cell, influent and effluent, are connected to the supply and return sides of the pool plumbing. Refer to diagram below as well as the following steps: Effluent Influent...
- Page 6 If the probes are allowed to dry out, they will fail and the AQL-CHEM will be ineffective. After installation, the Probe Cell will ensure that the probes are constantly exposed to pool water. During periods when the filter pump is off (even extended periods), there should be sufficient mois- ture remaining in the Probe Cell to ensure that the probes are protected.
- Page 7 Refer to the following informa- tion when determining which relay to use: Pro Logic P-4 and PS-4 models: The relay included with the AQL-CHEM kit must be installed and used to control the pH dispensing device on these models. Installa- tion instructions for this relay can be found packaged with the relay.
- Page 8 (included with AQL-CHEM) Configuring the Pro Logic After the AQL-CHEM is mounted, plumbed and wired, the Pro Logic must be con- figured using the Chemistry Config. Wizard found in the Configuration Menu. The AQL-CHEM's pH probe must also be calibrated using the pH Calibration Wizard found in the Maintenance Menu.
- Page 9 5. Advance through the Wizard using "<" and ">" buttons. Use "+" and "-" but- tons to answer questions when prompted. 6. Continue until finished. Sensing System Select Enable to configure the AQL-CHEM. pH Reduction Control Select the desired option related to pH control. Disabled pH control is turned off.
- Page 10 where the Pro Logic is constantly feeding CO because of a probe error or external problem with the pool and allows the pool owner to evaluate the pool chemistry before continuing with pH control. Use the "+" and "-" buttons to select one of the preset timeout values.
- Page 11 Test the pH of the pool water with a dependable quality test kit after the pool pump has been running for a period of time. Goldline suggest that you take more than one test and average the two results before entering the value in the pH Calibration Wiz- ard.
-
Page 12: Operation
Operation Before operating the AQL-CHEM, test and adjust the pool water chemistry to the recommended levels in the Pro Logic Installation and Operation manuals. If using the AQL-CL chlorination kit, adjust salt to the recommended levels. This is an important step and is crucial to the successful operation of the AQL-CHEM. -
Page 13: Maintenance
Maintenance Water Chemistry Always test water chemistry with a quality manual test kit. The AQL-CHEM pro- vides instrument-grade accuracy which exceeds that of most liquid-standard water testing kits. Therefore, it may be preferable to calibrate pH using commercially avail- able reference solutions. - Page 14 Store probes in a location that will not be subjected to freezing temperatures. Winterizing The AQL-CHEM probes must be protected from freezing conditions. If the pool is winterized, plan to remove and store the probes (as described above) as part of the normal pool winterizing process.
- Page 15 For residential installations in USA or Canada: If a product is defective in workmanship or materials and is removed and returned freight prepaid within three (3) years after the date of the initial system installa- tion, Goldline will, at its option, either repair or replace the defective product and return it freight pre- paid.
- Page 16 Questions? www.goldlinecontrols.com Refer to for latest manual revisions, additional information and helpful service. LINE ON TROLS 092332B North Kingstown, RI 02852 USA Copyright © 2008 Goldine Controls...
