AirgainConnect ® AC-HPUE™ Quick Start Guide

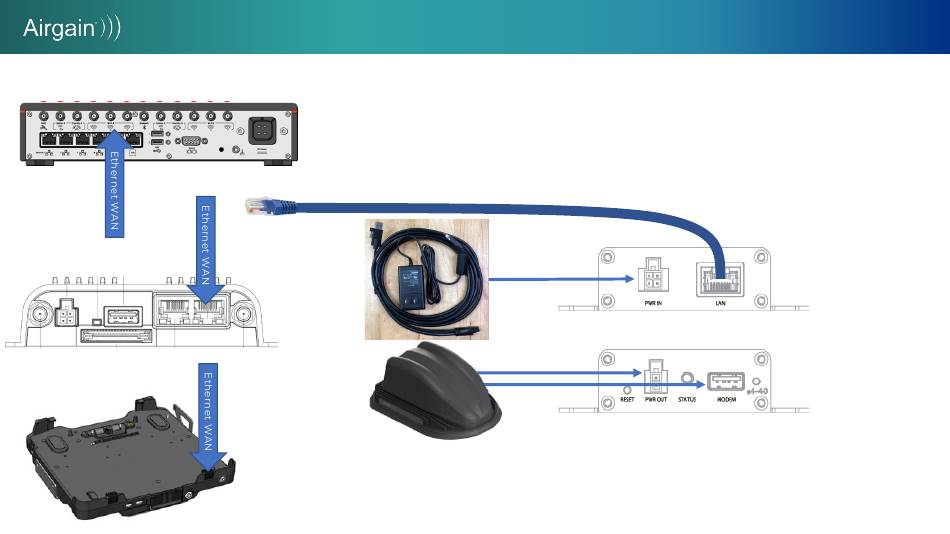

1. Connect the Ethernet Cable to the Router or laptop WAN port on one end and to
the Ethernet Injector LAN port on the other end. If your model of AirgainConnect
has coaxial cables for Wi-Fi and GNSS/GPS, connect those cables to the
appropriate SMA ports on your router.
2. Connect the AC-HPUE AC adapter to a power source. Airgain can recommends a
high quality power inverter for this purpose.
3. Connect the power cable 4-pin connector to the Ethernet Injector PWR IN port.
5
1
Power
Cable
4. Connect the HPUE USB and power cable to the Ethernet Injector.
5. Connect the cigarette lighter connector to the vehicle lighter port. Note that if your
vehicle leaves this power port operational when the ignition is off, remove this
connector to power off the AC-HPUE.
3
2
Ethernet Injector
4
1
