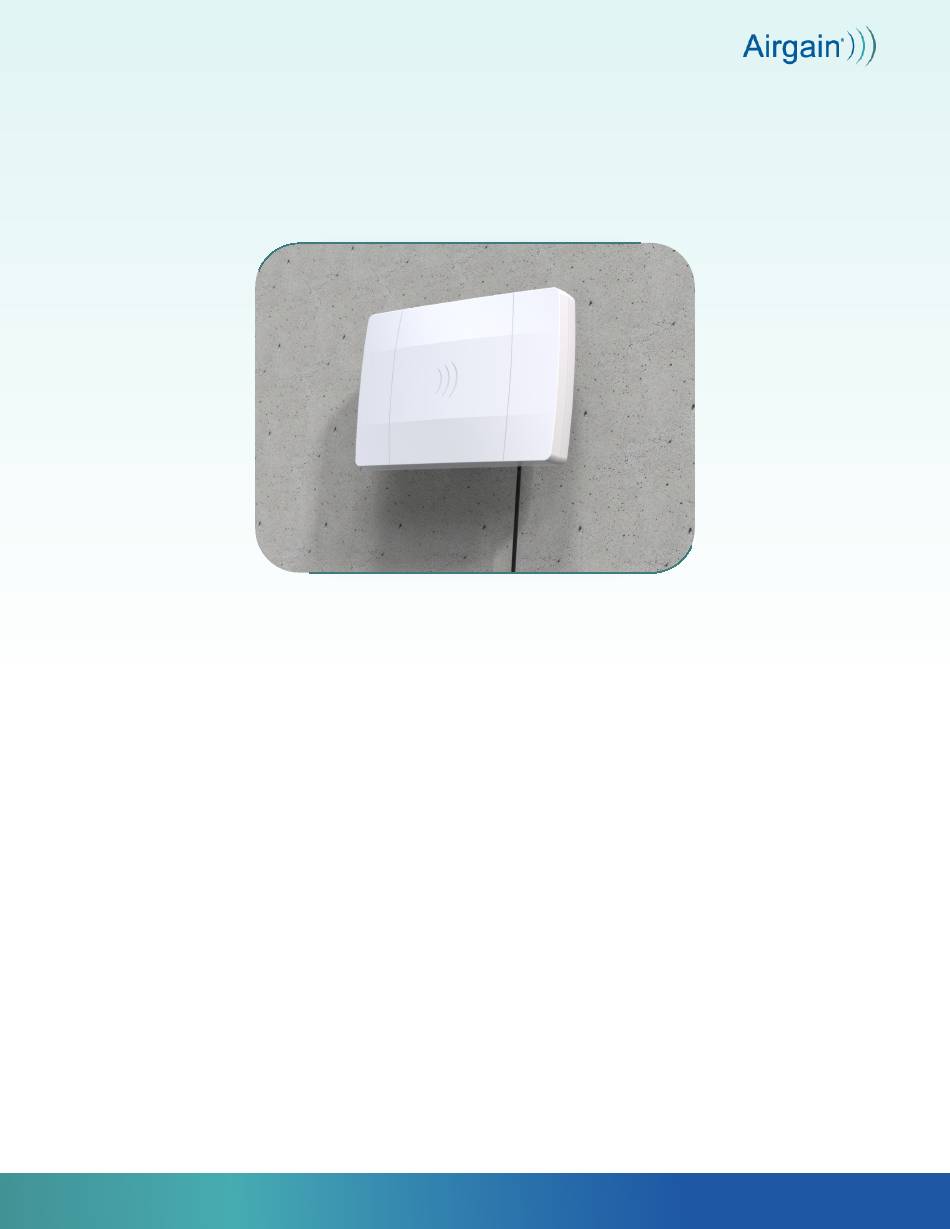

Lantern™ 5G Outdoor FWA
User Manual
Airgain, Inc
Updated: January 2024
Airgain, Inc. 2024. All Rights Reserved.
Airgain, Inc provides this documentation in support of its products for the internal use of its
current and prospective customers. The publication of this document does not create any
other right or license in any party to use and content in or referred to in this document and
any modification or redistribution of this document is not permitted.
While efforts are made to ensure accuracy, typographical and other errors may exist in
this document. Airgain, Inc reserves the right to modify or discontinue its products and to
modify this and any other product documentation at any time.
All Airgain, Inc products are sold subject to its published Terms and Conditions, subject
to any separate terms agreed with its customers. No warranty of any type is extended by
publication of this documentation, including, but not limited to, implied warranties or
merchantability, fitness for a particular purpose and non-infringement.
Airgain, Inc. is a registered trademark. Inc. All trademarks, service marks and similar
designations referenced in this document are the property of their respective owners.
Airgain, Inc. All Rights Reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lantern and is the answer not in the manual?

Questions and answers

Related Manuals for Airgain Lantern

Summary of Contents for Airgain Lantern

  • Page 1 Updated: January 2024 Airgain, Inc. 2024. All Rights Reserved. Airgain, Inc provides this documentation in support of its products for the internal use of its current and prospective customers. The publication of this document does not create any other right or license in any party to use and content in or referred to in this document and any modification or redistribution of this document is not permitted.

  • Page 2: Table Of Contents

    Client List About Management Setup Wizard Modem Setup Internet Setup LAN Setup IPv6 Setup Diagnostics System Log Personalization PIN Management Configuration Device Setup Software SMS Management LED Management Basic Firewall UPnP Dynamic DNS VPN Passthrough Airgain, Inc. All Rights Reserved.
  • Page 3 Advanced MAC Filtering IP Filtering Port Forwarding Port Triggering Parental Control Static Routing Wi-Fi Basic Advanced Engineering Band Selection Settings DM Settings QXDM Airgain, Inc. All Rights Reserved.

  • Page 4: Web Interface

    Password: operator Login Protection If you input wrong username and/or password more than three times, device will ask for additional identification. You can press re-fresh button to re-generate identification if it is hard to recognize. Airgain, Inc. All Rights Reserved.

  • Page 5: Function Icon

    NOTE: RECONNECT/CONNECT/DISCONNECT icons will be shown depending on the UI setting Management>Modem Setup. If “Enable Auto Connection” is checked, RECONNECT icon is shown. Otherwise, CONNECT or DISCONNECT icon will be shown while modem is disconnected from WAN or connected to WAN. Airgain, Inc. All Rights Reserved.

  • Page 6: Status

    Low/Medium/High. For more detail, please refer to Basic > Firewall section UPnP UPnP enabled or disabled DMZ enabled or disabled DDNS DDNS enabled or disabled Time Zone Time Zone Location (Latitude, Show the location of the ODU by its coordinates Longitude) Airgain, Inc. All Rights Reserved.

  • Page 7: Modem Status

    3.2 Modem Status 3.2.1 Basic The Modem Status displays a summary of the modem network connection parameters. The information includes: Airgain, Inc. All Rights Reserved.
  • Page 8 PUK Remain The remained PUK retry count. USIM Status SIM card status information. Roaming Status Informs current roaming status. PLMN Public Land Mobile Network identity. IMSI International mobile subscriber identity. ICCID Integrate circuit card identity. Airgain, Inc. All Rights Reserved.
  • Page 9 Current connected Band(According to 3GPP defined) Bandwidth Current connected Bandwidth. SINR Signal to Interference plus Noise Ratio. RSRQ Reference Signal Received Quality. RSRP Reference Signal Received Power. Pre-coding Control Indication. SSB Arfcn Synchronization Signal Block Absolute Radio Frequency Channel Number. Airgain, Inc. All Rights Reserved.
  • Page 10 SCC: Secondary Component Carrier. • Band: Current connected Band. (According to 3GPP defined.) NR Cell Information • SSB Arfcn: Synchronization Signal Block Absolute Radio Frequency Channel Number. • PCI: Physical Cell Identifier. • Bandwidth (MHz): Current connected Bandwidth Airgain, Inc. All Rights Reserved.

  • Page 11: Network Status

    Device’s WAN default gateway. Primary DNS Server The Primary Domain Name Server address is gotten from BS, if there is any. Secondary DNS The Secondary Domain Name Server address is gotten from BS, if there is any. Server Airgain, Inc. All Rights Reserved.

  • Page 12: Client List

    IPv6 address acquired on the LAN interface is displayed. Otherwise it is N/A. Auto configuration The type to delegate IP address to PCs behind of the device. Type 3.4 Client List This page displays all the end user information and contain two status information. Airgain, Inc. All Rights Reserved.

  • Page 13: About

    Action–Unblock: To Unblock the specific end user; After press the “Unblock” button the end user’s record will be removed from Blacklist table. 3.5 About This page displays the router default necessary information. Those values are set by the manufacturer as the factory defaults. Airgain, Inc. All Rights Reserved.

  • Page 14: Management

    1. By press the “Next” button to start Wizard, we will guide you to set up your Time Zone. NOTE: The item “Configure Security and Network Name” will only be seen when login in with the advanced account. Airgain, Inc. All Rights Reserved.
  • Page 15 3. Set up your 2.4GHz Wi-Fi (advanced account only) parameters, such as SSID, Encryption, Password, etc. 4. Check your settings again and then press “Save” button to apply the change. Please note, the Wi-Fi settings will only be seen when login in with the advanced account. Airgain, Inc. All Rights Reserved.

  • Page 16: Modem Setup

    4.2 Modem Setup On this page, you can configure all the network related parameters. Airgain, Inc. All Rights Reserved.
  • Page 17 Key-in the user name for the APN if there is any, this information should provide User Name by your service provider. Key-in the password for the APN if there is any, this information should provide by Password your service provider. Airgain, Inc. All Rights Reserved.

  • Page 18: Internet Setup

    Secondary DNS Server: Secondary DNS server for DNS query. • Server IP Address: PPTP server’s IP address. • Username: Username for tunnel authentication. • Password: Password for tunnel authentication. • MTU Size: Maximum transmission packet size on device’s WAN interface (Unit: Byte). Airgain, Inc. All Rights Reserved.
  • Page 19 Pre-shared Key: This is used to authenticate remote IPsec end point. • MTU Size: Maximum transmission packet size on device’s WAN interface (Unit: Byte). IPv4 Passthrough Device will forward WAN IP to the LAN host based on the selected IP Passthrough Airgain, Inc. All Rights Reserved.

  • Page 20: Lan Setup

    MTU Size: Device’s maximum transmission unit size of WAN interface (Range: 576-1500 bytes) 4.4 LAN Setup On this page, you can change the Web UI and device local IP address distribution range. DHCP Service Type is Disabled DHCP Service Type is Server Airgain, Inc. All Rights Reserved.
  • Page 21 Server: The unit has a built-in DHCP server that can be used for managing the distribution of IP addresses for the devices connected to the local LAN port (Ethernet or Wi-Fi) and Web UI. In the DHCP Server page you set DHCP parameters for dynamic IP assignment. Airgain, Inc. All Rights Reserved.
  • Page 22 IP Address: This is display the IP address that assigned to this LAN device (Host PC). • Remaining Lease Duration: This display how many seconds remain for this assigned IP. • Status: This shows the current IP assignment availability. Airgain, Inc. All Rights Reserved.

  • Page 23: Ipv6 Setup

    4.5 IPv6 Setup On this page, you can manage IPv6 settings on WAN/LAN WAN Enabled, LAN Disabled WAN Enabled, LAN is SLACC DHCPv6 Airgain, Inc. All Rights Reserved.
  • Page 24 WAN Enabled, LAN is SLACC RDNSS WAN Enabled, LAN is Stateful DHCPv6 Airgain, Inc. All Rights Reserved.
  • Page 25 DHCv6. • IPv6 Address Pool Start: Defined the IPv6 address start point, default is: 2 • IPv6 Address Pool End: Defined the IPv6 address end point, default is: 200 Airgain, Inc. All Rights Reserved.

  • Page 26: Diagnostics

    TTL: Time To Live value; in the Traceroute test, please fill in a test value for the packet path time and check what is the path time that a packet takes to the specified host (Range: 1-30). Airgain, Inc. All Rights Reserved.

  • Page 27: System Log

    Wait until the traceroute command is executed. The execution results are displayed in the box. 4.7 System Log The system log allows you can provide more detail information to your network provider. System log will not be recorded any individual privacy. Airgain, Inc. All Rights Reserved.
  • Page 28 Failed to connect to server • Failed to download Packages or firmware • FOTA • Error Failed to upgrade firmware • Failed to verify firmware • Critical Critical Error NOTE: UNABLE to export System Log on IE8 browser Airgain, Inc. All Rights Reserved.

  • Page 29: Qos

    Enter the MAC address to change the bandwidth-limited target. • Downlink (Mbps): Enter the downlink limit (Mbits per second) of the end user. • Uplink (Mbps): Enter the uplink limit (Mbits per second) of the end user. Airgain, Inc. All Rights Reserved.

  • Page 30: Personalization

    If you select “Disable”, device would disable the PIN code lock function, please press“Apply” button to confirm the change. NOTE: If you are in the first time use, please check Network Provider to get your PIN/PUK code details. Airgain, Inc. All Rights Reserved.

  • Page 31: Configuration

    Export Configuration File: You could export all of user settings in this device to Configuration File a file. • Import Configuration File: You could browse a configuration file and import it back. NOTE: UNABLE to export Configuration file on IE8 browser Airgain, Inc. All Rights Reserved.

  • Page 32: Device Setup

    NOTE: We recommend you to change the default Login password while the first time log- in. If you don’t fill any key in the Password field, it means that you don’t modify Airgain, Inc. All Rights Reserved.

  • Page 33: Software

    Under this mode, the device will upgrade according to the Upgrade From FOTA instructions from the FOTA configuration. Please note, only the advanced account can access the Engineering Setting pages. NOTE: While firmware upgrade is in progress, please don’t remove the power from device. Airgain, Inc. All Rights Reserved.

  • Page 34: Sms Management

    SMS first. • Oldest: You can do this by selecting ‘Oldest’ and then the messages are arranged in descending order from oldest to newest. • Del: Click the delete button to delete the message. Airgain, Inc. All Rights Reserved.

  • Page 35: Led Management

    Below are the definitions for each item: Item Description • This feature is for turning on/off the LEDs on the ODU. • Turn off all LEDs Checked: To turn off all LEDs • Unchecked: To turn on all LEDs. Airgain, Inc. All Rights Reserved.

  • Page 36: Basic

    Block or allow the client device’s internet access via URL (web address), you can go Prevent DoS Attack Advanced > URL Filtering to edit whitelist and backlist. Block Anonymous Select this checkbox to reject anonymous Internet requests. Internet Requests Airgain, Inc. All Rights Reserved.

  • Page 37: Dmz

    Windows applications would setup the port forwarding rule dynamically. Below are the definitions for each item: Item Description Enable UPnP IGD - Select this checkbox to enable/disable Universal Plug and Play Enable UPnP Internet Gateway Device. Airgain, Inc. All Rights Reserved.

  • Page 38: Dynamic Dns

    • Domain Name Service Provider Select the DDNS service provider from the drop-down list. 6.5 VPN Passthrough A VPN passthrough is a feature that allows any clients connected to the router to establish VPN connections. Airgain, Inc. All Rights Reserved.

  • Page 39: Advanced

    7.1 MAC Filtering You can block access to the Internet from clients on the local network by MAC addresses. In the MAC Filter page you set MAC addresses to be filtered out by the security system. Airgain, Inc. All Rights Reserved.

  • Page 40: Ip Filtering

    Select this checkbox to enable or disable filtering for the specific table entry. IP Version Select IP Version 4/6 address. IP Address Specify an IPv4 address range or an IPv6 address on the local network. Airgain, Inc. All Rights Reserved.

  • Page 41: Port Forwarding

    Set the protocol for port forwarding: TCP, UDP or Both. WAN Port Enter the port number for WAN side. LAN Port Enter the port number for LAN side. LAN IP Enter the IP address that identifies the IP subnet of the remote network. Airgain, Inc. All Rights Reserved.

  • Page 42: Port Triggering

    Enter the trigger range (1024~65535). Enter the forwarded range. Some forwarded port is reserved. Reserved port list: • Forwarded Range TCP: 80, 111, 443, 2049, 8080, 25001, 32777, 32778, 32780, 50003 • UDP: 111, 1900, 2049, 32777, 32778, 32780 Airgain, Inc. All Rights Reserved.

  • Page 43: Parental Control

    MAC address of the client device you would like to control. Block Time Choose time to control the out-going traffic. Block Traffic Choose the type to control all out-going traffic or url filter which user defined. Add Parental Control rule(s). Airgain, Inc. All Rights Reserved.

  • Page 44: Static Routing

    Choose the type to control all out-going traffic or url filter which user defined. 7.6 Static Routing Static routing is a form of routing that occurs when a router uses a manually-configured routing entry, rather than information from a dynamic routing traffic. Airgain, Inc. All Rights Reserved.

  • Page 45: Wi-Fi

    To choose the encryption method, the options are • None Encryption • WPA2 PSK + AES • WPA-WPA2-MIXED PSK + TKIP/AES Password Set the Wi-Fi password. Password - Display Display the password in plain text. Airgain, Inc. All Rights Reserved.

  • Page 46: Advanced

    Radio Channel Auto • 1 ~11 Select the output power level of the Wi-Fi radio. This can be set as Low, Middle, or Power Level High. Maximum Set the maximum Wi-Fi connection client. Connection Number Airgain, Inc. All Rights Reserved.

  • Page 47: Engineering

    This page is for engineers to set the radio band that he wants the CPE to scanning in the 4G/5G searching mode. Moreover, he can also force the CPE to connect specified Cells on this page. Airgain, Inc. All Rights Reserved.
  • Page 48 Band: Set the NR Band of the desired Cell. • SCS: The sub-carrier space. • Lock Cell for NR PCC SSB Arfcn: Set the Synchronization Signal Block Absolute Radio Frequency Channel Number. • PCI: Set the Physical Cell Identifier of the desired Cell. Airgain, Inc. All Rights Reserved.

  • Page 49: Dm Settings

    9.2 DM Settings Engineers can set the parameters for TR-069, SNMP, and FOTA on this page. Airgain, Inc. All Rights Reserved.
  • Page 50 • Periodically Check Interval: Set the time interval for the CPE to check for an upgrade. • Daily Check Time (Hour): Set the scheduled hour for the CPE to check for an upgrade. Airgain, Inc. All Rights Reserved.

  • Page 51: Qxdm

    Specify the IP address of the LAN host that will receive the QXDM log via FTP FTP Server IP service. NOTE: Engineering page will only appear when logging in to the Web GUI with the advanced account. Airgain, Inc. All Rights Reserved.
