1
Assemble the leg on the rim using a 1.25" bolt and a flat
washer. Finger tighten only.
3
Place the base over the table top fitting the assembly brackets
using 1" bolts and flat washers. Once all brackets are fitted, confirm
legs are attached at correct angle and fully tighten all bolts.

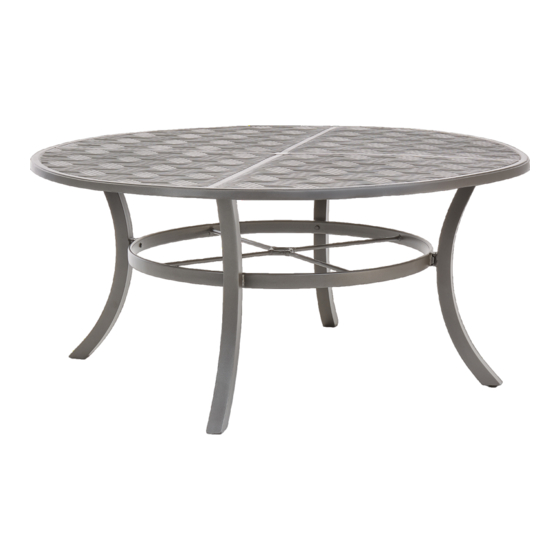

Assembly Instructions: Round 60" Dining Table
HQ3060WTK
(WA1CDK60)
2
Assemble remaining legs using the same method.
4
1
6
5
2
3
7
8
See parts list
on reverse.
