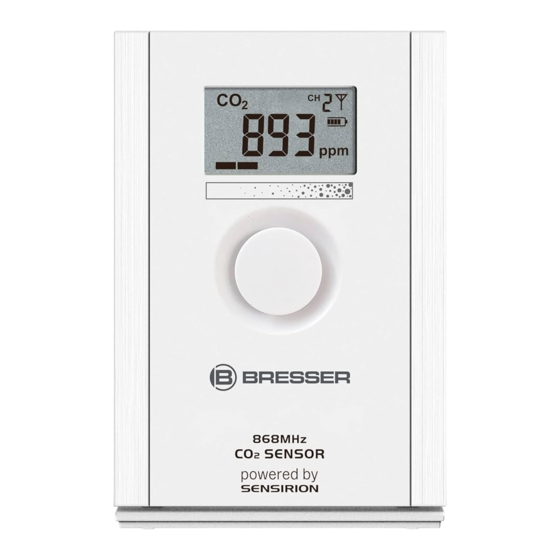

Bresser 7009977 Instruction Manual

CO Sensor
2
Art.No.: 7009977
INSTRUCTION MANUAL
EN
BEDIENUNGSANLEITUNG
DE
INSTRUCTION MANUAL
EN

About this Instruction Manual

These operating instructions are to be considered a component of the device.
Please read the safety instructions and the operating instructions carefully before use.
Keep these instructions for renewed use at a later date. When the device is sold or given to someone else,
the instruction manual must be provided to the new owner/user of the product.

GENERAL WARNINGS

• Risk of electric shock — This device contains electronic components that operate via a power
source (batteries). Children should only use the device under adult supervision. Only use the device
as described in the manual; otherwise, you run the risk of an electric shock.
• Choking hazard — Children should only use the device under adult supervision. Keep packaging mate-
rial, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking
hazard.
• Risk of chemical burn — Keep batteries out of the reach of children! Make sure you insert the bat-
teries correctly. Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with
skin, eyes and mucous membranes. In the event of contact, rinse the affected region immediately
with a plenty of water and seek medical attention.
• Risk of fire/explosion — Do not expose the device to high temperatures. Use only the recommend-
ed batteries. Do not short-circuit the device or batteries, or throw them into a fire. Excessive heat or
improper handling could trigger a short-circuit, a fire, or an explosion.
• Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will
contact the Service Centre and can send the device in to be repaired, if necessary.
• Use only the recommended batteries. Always replace weak or empty batteries with a new, complete
set of batteries at full capacity. Do not use batteries from different brands or with different capaci-
ties. The batteries should be removed from the unit if it has not been used for a long time.

SCOPE OF DELIVERY

Sensor, Operating instructions, 3x AA batteries.

BEFORE YOU BEGIN

• We recommend using alkaline batteries. If temperatures regularly fall below 0°C (32°F), we recom-
mend using lithium batteries.
• Insert batteries before first use, matching the polarity in the battery compartment.
3x AA batteries are required.

EC Declaration of Conformity

Hereby, Bresser GmbH declares that the equipment type with part number: 7009977 is in
compliance with Directive: 2014/53/EU. The full text of the EU declaration of conformity is
available at the following internet address:
www.bresser.de/download/7009977/CE/7009977_CE.pdf

UKCA DECLARATION OF CONFORMITY

Bresser UK Ltd. has issued a „Declaration of Conformity" in accordance with applicable
guidelines and corresponding standards. The full text of the UKCA declaration of conformity is
available at the following internet address:
www.bresser.de/download/7009977/UKCA/7009977_UKCA.pdf
Bresser UK Ltd. • Suite 3G, Eden House, Enterprise Way, Edenbridge, Kent TN8 6HF, Great Britain

NOTES ON CLEANING

• Remove the batteries before cleaning.
• Only use a dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use
any cleaning fluid.
• Protect the device from dust and moisture.

INTRODUCTION

Why CO ?
2
Associations of higher indoor carbon dioxide (CO2) concentrations with impaired work performance
and increased health symptoms.
Swiss sensor technology
The device comes with Swiss made SENSIRION CO2 sensor SCD series designed for indoor air quality
application. This sensor builds on the photoacoustic sensing principle and Sensirion's patented
technology, which enables precise measurements from the device's first operation and throughout its
lifetime of usage.
Multi-zone feature
Through our multi-zone technologies, each device has a unique device code with a user selectable
channel number. Up to 4 separate air quality sensors can be placed in an open proximity covering an
area across 100m radius from its main display unit (to be purchased separately).
Low maintenance
The Swiss sensor is expected to have a lifetime of over 10 years while operating continuously for 24
hours/day. With its simple structure, there is no need for cleaning and/or maintenance, thus avoiding
problems related to sensor drift or malfunction.

OVERVIEW

1. Lcd Display
2. [ MODE ] key
3. [ CHECK ] key
4. Wall mounting holder

BATTERY INSERTION

1. Unscrew and remove the battery door of sensor with a screwdriver.
2.
Insert the 3 rechargeable batteries (included) into the battery compartment in the following order:
x 3
3. Screw the battery door compartment on tightly.
4. After inserting batteries, all LCD segment will be shown for 1 second.
Note:
Please prepare a screwdriver for removing and close the battery door.

GETTING STARTED

1. Slide [ CHANNEL ] key to set the channel number for your sensor(s).
2. Use a pin to press [ RESET ] key for run the channel number.
Note:
If there are more than one sensor in use, ensure to assign different channels number for each sensor
to enable the measurement to displayed correctly on the console (purchase separately).
USB INPUT
DC 5V 500mA
5. [ CH1 ~ 4 ] slide switch
6. [ RESET ] key
7. Battery compartment
8. USB DC power port
