Kärcher K 460 M Operator's Manual

Operating pressure 1300 psi
Hide thumbs
Table of Contents

Advertisement

Quick Links

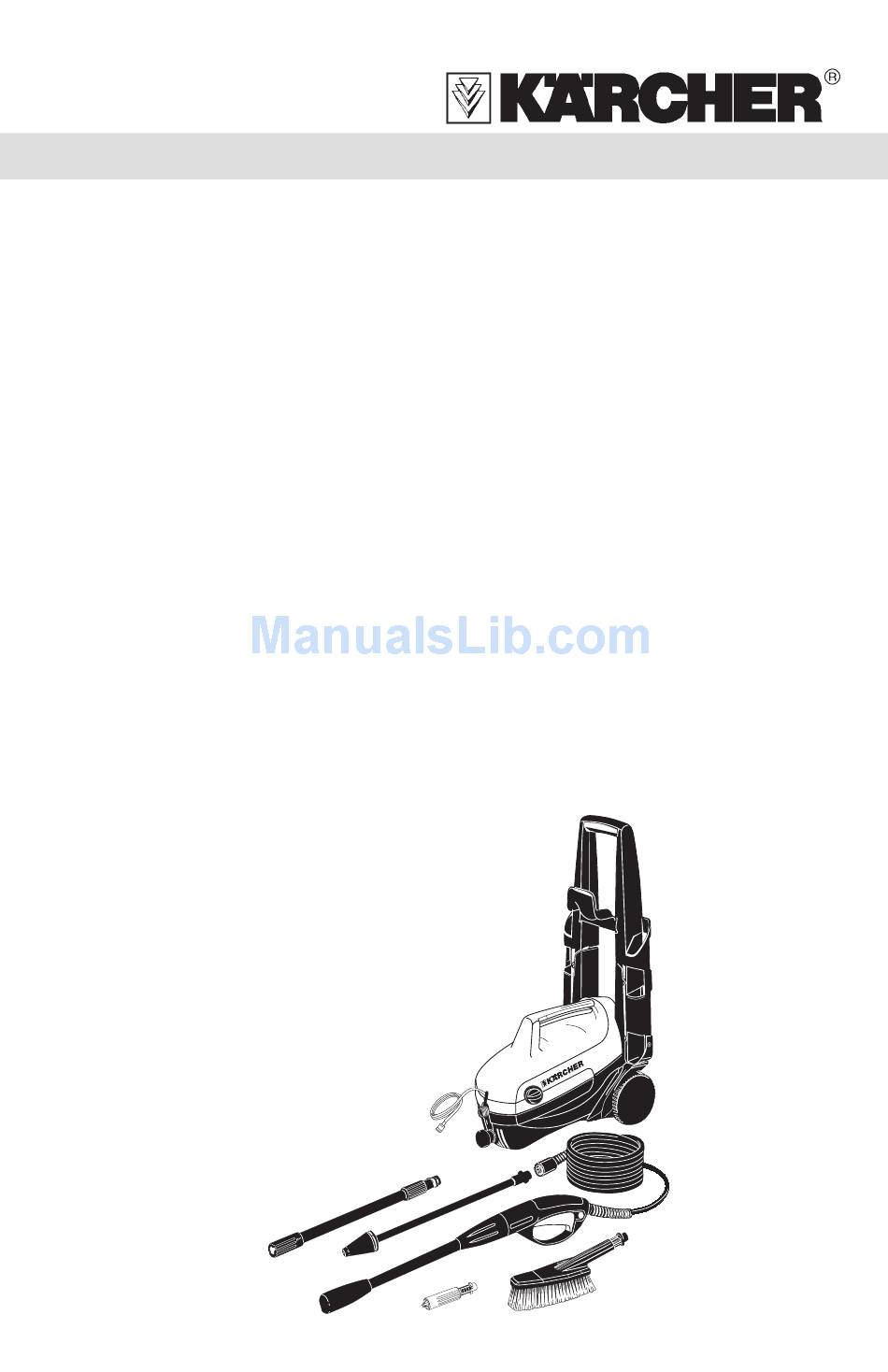

Model K 460 M
High Pressure Washer Operator Manual
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . .3
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . .4
Using the Accessories . . . . . . . . . . . . . . . . . . . . . . . .5
Working with Detergents . . . . . . . . . . . . . . . . . . . . . . .6
Shut Down and Clean-Up . . . . . . . . . . . . . . . . . . . . . .7
Taking a Break . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Winterizing and Long-Term Storage . . . . . . . . . . . . . .7
Cleaning Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
Optional Cleaning Accessories . . . . . . . . . . . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .10-11

Specifications

Operating pressure
Water volume
Voltage
Amp draw
1300 PSI
1.6 GPM
120 V
14 AMPS
Part No. 1.189-203.0

Advertisement

Table of Contents
loading

Related Manuals for Kärcher K 460 M

Summary of Contents for Kärcher K 460 M

  • Page 1: Table Of Contents

    Model K 460 M High Pressure Washer Operator Manual Overview ........1 Precautions .

  • Page 2: Overview

    Model K 460 M OVERVIEW Item Description 1. High/Low Spray wand 2. Rotating spray wand 3. Spray wand extension 4. Soap nozzle 5. Wash Brush 6. Trigger gun 7. Trigger gun safety lock 8. High pressure hose 9. Mobile adapter bracket with wheel (qty. 2) 10.
  • Page 3 IMPORTANT PRECAUTIONS – Read First! Safety Warnings When using this product basic precau- tions should always be followed: • Read all the instructions before using the product. • High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, animals, electri- cal devices, or the machine itself.

  • Page 4: Precautions

    IMPORTANT PRECAUTIONS – Water Supply (Cold Water Only) • Water hose must be at least 3/4 inch in diameter. • Flow rate of water supply must not fall below 2.5 GPM (gallons per minute). • Flow rate can be determined by running the water for one minute into an empty 5-gallon container.

  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS Step 1 Connect the high pressure hose to the unit’s high pressure outlet. Step 3 Connect garden hose to unit’s water inlet. Step 5 Plug the power cord into the power outlet. Trigger the gun to eliminate trapped air, wait for a steady flow of water to emerge from the spray nozzle.

  • Page 6: Using The Accessories

    USING THE ACCESSORIES The pressure washer has two fully automatic pressure settings, depending on the wand or nozzle installed. High/low spray wand This wand features two positions. The high setting provides a steady powerful 15º high pressure spray pattern, for general cleaning. The low setting creates a wider 40º...

  • Page 7: Working With Detergents

    WORKING WITH DETERGENTS Karcher Pressure washers operate at two pressures. The high pressure is used for cleaning, you cannot apply detergents when working at high pressure. To apply detergents you must be operating at low pressure. Step 1 To Install soap nozzle or wash brush simply insert into the spray wand extension.

  • Page 8: Shut Down And Clean-Up

    SHUTTING DOWN & CLEAN-UP Step 1 Remove de- tergent suction tube from container and insert into 1 gallon of fresh water. Siphon water at low pressure for one minute. Step 5 Disconnect the garden hose from the water inlet on the unit. TAKING A BREAK...

  • Page 9: Cleaning Tips

    (for best results, limit your work area to sections of approximately 6 feet and always apply detergent from bottom to top). Allow Karcher House Wash to remain on surface 1-3 minutes. Do not allow detergent to dry on surface, if surface appears to be drying, simply wet down surface with fresh water.

  • Page 10: Optional Cleaning Accessories

    Karcher Rotating Nozzle Spray Wand. Caution: Do not use rotating nozzle spray wand on cloth, plastic or other sensitive surfaces as it may cause damage.

  • Page 11: Troubleshooting

    TROUBLESHOOTING Disconnect the machine from the power source before making any repair. Symptom Cause Motor will not start On/Off switch is in the “OFF” position. Power cord is not plugged in. Extension cord is too long. Extension cord is not proper gauge.

  • Page 12: Troubleshooting

    Check that all fittings are tight. Call service center. Call service center. If you encounter any additional difficulties not listed, please call our service center for help. Karcher Customer Support USA 1-800-537-4129...

This manual is also suitable for:

K 370 m
