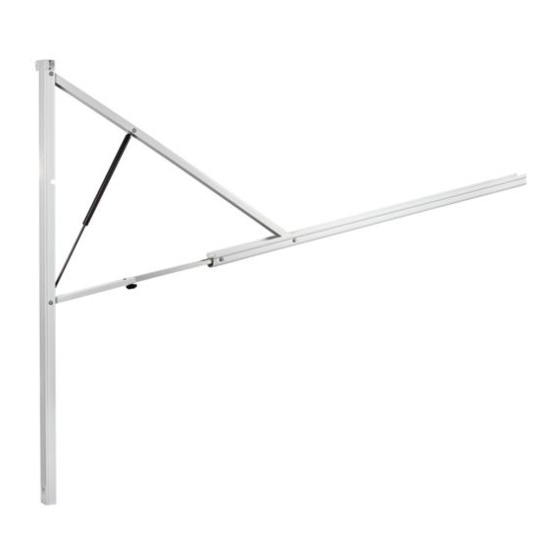

Dometic 9100 Power Awning Manual

DOCUMENT SYMBOLS

information Indicates additional information that is NOT related to physical injury.

Indicates step-by-step instructions.

IMPORTANT SAFETY INSTRUCTIONS

This manual has safety information and instructions to help you eliminate or reduce the risk of accidents and injuries.

Recognize Safety Information

warning This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Understand Signal Words

A signal word will identify safety messages and property damage messages, and will indicate the degree or level of hazard seriousness.


indicates a hazardous situation that, if NOT avoided, could result in death or serious injury.


indicates a hazardous situation that, if NOT avoided, could result in minor or moderate injury.

NOTICE is used to address practices NOT related to physical injury.

Supplemental Directives

warning Read and follow all safety information and instructions to avoid possible injury or death.
Read and understand these instructions before installing, using, servicing or performing maintenance on this product.
Incorrect installation, operation, servicing or maintaining of this product can lead to serious injury. Follow all instructions.

warning The installation MUST comply with all applicable local and national codes, including the latest edition of the following standards:

U.S.A.

  • ANSI/NFPA70, National Electrical Code (NEC)
  • ANSI/NFPA 1192, Recreational Vehicles Code

CANADA

  • CSA C22.1, Parts l & ll, Canadian Electrical Code
  • CSA Z240 RV Series, Recreational Vehicles

General Safety Messages


Failure to obey the following warnings could result in death or serious injury:

  • This product MUST be installed and serviced by a qualified service technician.
  • Do NOT modify this product in any way. Modification can be extremely hazardous.
  • IMPACT OR CRUSH HAZARD. This product should be installed in a controlled environment (inside). Do NOT install product during windy conditions, or when wind is expected. Otherwise, product could move unpredictably, become unstable, and could detach, bend, or collapse.

GENERAL INFORMATION

Included Hardware

(2) 1/4' - 20 x 3/4' Hex Head Screw
(2) 1/4' Split Lock Washer
(8) #14 - 10 x 1-1/2' Hex Head Screw
(2) #6 - 20 x 7/16' Self Drilling Hex Head Washer Screw

Optional Components & Kits

(1) 830304
Door Roller Kit

(1) 830304.003
Door Roller Kits (50 Pack)

(1) 3308334.006U
Torsion Crank Assembly

(1) 3312853.025(#)
Back Channel Spacer Kit

(1) 3316287.000
Rocker Switch Kit

SPECIFICATIONS

Hardware Dimensions (Back Channel)

information Wiring harness location may be at top or bottom depending on awning model.

Hardware Dimensions (Back Channel) Fig. 1

Door Clearance

Minimum distances between awning rail and entry door:

X
8956(X)(X)1.4(X)0(#) 12'
8956(X)(X)2.4(X)0(#) 7'
8956(X)(X)3.4(X)0(#) 6'

information When entry door is toward center of awning, add 2' to minimum distances.

Door Clearance Fig. 2

Measuring Tips

Consider doors, windows, lights, trim, slideout room, etc. when determining the length and position of the awning so as not to obstruct the operation or block any of these components.

8956(X)(X)1.4(X)0(#) 8956(X)(X)2.4(X)0(#) 8956(X)(X)3.4(X)0(#)
A 62-3/4' 66-1/4' 66-1/4'
B 62-1/8' 65-5/8' 65-5/8'
C 60-1/8' 63-5/8' 63-5/8'
D 60-3/4' 64-1/4' 64-1/4'
E 61-1/2' 65' 65'
F 31' 32-7/8' 32-7/8'
G 35-1/4' N/A N/A
H 3/8'
J 1/4'
K 5/8'
L 3/4'
M 1-1/2'

PREPARE FOR INSTALLATION

Door Roller And Edge Guard (Optional)

NOTICE
Do NOT allow corner of entry door to contact awning fabric. Otherwise, premature wear or tearing of awning fabric could occur. If there's potential for a squared corner entry door to contact awning fabric, a door roller kit (NOT INCLUDED) must be installed.

information Rounded corner doors may NOT require a door roller kit if there is no potential for damage to awning fabric. See subsection, "B. Optional Components & Kits" to order door roller kits.

  1. Place door roller on upper corner of outer entry door (opposite to hinge), transfer (drill) two pilot holes, and place and tighten mounting screws.
    See (FIG. 3).
    Door Roller And Edge Guard (Optional) Fig. 3
  2. Clip door edge guard onto upper corner of inner screen door (opposite to hinge). See (FIG. 4).
    Door Roller And Edge Guard (Optional) Fig. 4

Prepare Awning Rail And Insert Fabric

NOTICE
Make sure awning rail is parallel to RV floor, and is NOT warped or curved before installing awning fabric. If awning rail is NOT straight, awning fabric may wrinkle or stretch. Select desired awning rail end (on RV) into which awning fabric will be inserted. Flare (widen) that end of rail with a flat-bladed screwdriver, and remove (file) sharp edges.
See (FIG. 5).

information If awning is equipped with LED lights, flare top (of awning rail opening) ONLY.

Prepare Awning Rail And Insert Fabric Fig. 5

Prepare Awning For Installation

The awning hardware requires minor preparation before installing on RV.

  1. Carefully lay fabric roller tube assembly (FRTA) on a clean, well padded "V" trough (or other well protected surface) to prevent fabric damage.

  2. IMPACT OR PINCH HAZARD.
    Do NOT remove ties (wrapped around each arm assembly) until top casting is secured to front channel, awning fabric is attached to awning rail, and arm assembly is mounted to RV. Arm assemblies are under tension from gas strut. Removing these ties could allow arms to extend quickly and unexpectedly. Failure to obey this warning could result in death or serious injury. Insert each top casting into corresponding front channel. See (FIG. 6).
    information The RH arm assembly (front channel) is pre-wired for awning motor.
    Prepare Awning For Installation Fig. 6
    Prepare Awning For Installation Fig. 7

  3. IMPACT OR CRUSH HAZARD.
    DO NOT set Top Casting BEHIND Tongue. Awning roller assembly is NOT properly restrained and could become separated. Failure to obey this warning could result in loss of property, serious injury or death.
    Prepare Awning For Installation Fig. 8
    Prepare Awning For Installation FIg. 9
  4. Secure RH front channel to RH top casting using 1/4' - 20 x 3/4' hex head screw and 1/4' split lock washer. See (FIG. 6).
  5. Repeat step () for LH side. See (FIG. 10).
    Prepare Awning For Installation Fig. 10

  6. IMPACT OR PINCH HAZARD.
    Do NOT remove cotter pin from torsion rod (at end cap) until BOTH top castings are secured to corresponding front channels. Otherwise, rapid casting spin off will occur. Spring tension will attempt to spin the hardware and/or fabric roller tube quickly and unexpectedly. Failure to obey this warning could result in death or serious injury. Remove cotter pin from left hand torsion rod (LH end cap). See (FIG. 10).
    information Removing cotter pin will release factory preset torsion (spring) tension.
    1. Straighten bent end of cotter pin.
    2. Rotate fabric roller tube (as if unrolling awning) by pulling bottom of tube toward you.
      information This will reduce pressure on cotter pin for easier removal.
    3. While holding fabric roller tube, pull cotter pin out and discard.

Determine Awning Location


  1. IMPACT OR CRUSH HAZARD.
    Make sure mounting surface on RV is flat, has solid structural backing where fasteners penetrate surface, and will safely and securely support product. Otherwise, product may become unstable and could detach, bend or collapse. Failure to obey this warning could result in death or serious injury. Find a solid structure in RV wall for support of top mounting brackets and back channels (all mounting points).
  2. Make sure arm assemblies do not restrict use of doors, windows, slideout rooms, etc. See (FIG. 11).
    information To install over windows, see subsection, "B. Optional Components & Kits" to order back channel spacer kits.
  3. NOTICE Allow for sufficient clearance between entry door and fabric or slideout room and fabric to accomodate awning pitch (slope). Avoid location that interferes with entry door swing when awning is completely extended. See subsection, "B. Door Clearance".

Determine Awning Location Fig. 11

INSTALL ELECTRICAL KITS


ELECTRICAL SHOCK HAZARD.
Disconnect 120 Vac power from RV. Failure to obey this warning could result in death or serious injury.

NOTICE
Disconnect the positive (+) 12 Vdc terminal from supply battery. Otherwise, damage to unit could occur. Disconnect power for ALL procedures under this section.

Install (Fixed / Wired) Awning Switch

information Use correct (Dometic Corporation approved) momentary switch, or electronic control switch with motor overload protection.

  1. NOTICE Do NOT expose switch to weather, extreme temperatures, or long hours in direct sunlight. Find a suitable location for awning switch installation.
  2. NOTICE Install a (15 A) fuse (installer supplied) at fuse panel for positive (+) 12 Vdc power supply (RED wire) to switch. Otherwise, damage to unit could occur.
  3. Route wiring (inside RV) to general location where connections to awning right hand hardware will be made.
    information Allow enough wiring length to pass through outside RV wall (hole will be drilled later) for connection to awning. Wiring hole location will be either at top or bottom of RH back channel depending on awning model. See (FIG. 1).
  4. Make appropriate wiring connections inside RV.
    information Wiring connections to awning (through outside RV wall) will be made later. See instructions included with your Dometic Corporation switch kit (available separately) for additional wiring instructions.

Install Track And Light Switches (If Applicable)

information Use correct (Dometic Corporation approved) non-momentary switch.

  1. NOTICE Do NOT expose switch to weather, extreme temperatures, or long hours in direct sunlight. Find a suitable location for awning switch installation.
  2. NOTICE Install a (15 A) fuse (installer supplied) at fuse panel for positive (+) 12 Vdc power supply (RED wire) to switch. Otherwise, damage to unit could occur.
  3. Route wiring (inside RV) to general location where connections to awning left hand hardware will be made.
    information Allow enough wiring length to pass through outside RV wall (hole will be drilled later) for connection to awning. Wiring hole location will be either at top or bottom of LH back channel depending on awning model. See (FIG. 1).
  4. Make appropriate wiring connections inside RV.
    information Wiring connections to awning (through outside RV wall) will be made later. See instructions included with your Dometic Corporation switch kit for additional wiring instructions.

Install Ignition / Safety Interlock System


IMPACT OR CRUSH HAZARD.
Do NOT install product without also installing an ignition/safety interlock system. Otherwise, accidental operation during transit could occur. Failure to obey this warning could result in death or serious injury.

information Ignition / safety interlock system is only applicable to motorhomes.

  1. NOTICE Install a (3 A) fuse (installer supplied) at fuse panel for positive (+) 12 Vdc ignition control (PINK wire) to ignition interlock. Otherwise, damage to unit could occur.
  2. Make appropriate wiring connections.
    information The ignition interlock MUST break the circuit (cut power) to awning when ignition is ON. See instructions included with your Dometic Corporation ignition interlock kit (available separately) for additional wiring instructions.

Install LED Light Switch (If Applicable)

An LED light switch (installer supplied) is required for awning models equipped with an LED light strip either at the wall or in the roller tube.

information Skip this subsection if awning is NOT equipped with an LED light strip.

  1. NOTICE Do NOT expose switch to weather, extreme temperatures, or long hours in direct sunlight. Find a suitable location for LED switch installation.
  2. NOTIC Install a (3 A) fuse (installer supplied) at fuse panel for positive (+) 12 Vdc power supply (RED wire) to switch. Otherwise, damage to unit could occur.
    information Alternatively, a (3 A) in-line fuse may be used between positive (+) 12 Vdc power supply (RED wire) and LED switch.
  3. Route wiring (inside RV) to general location where connections to awning hardware will be made.
    information Allow enough wiring length to pass through outside RV wall (hole will be drilled later) for connection to awning. Wiring hole location will be either at top or bottom of RH back channel depending on awning model. See (FIG. 1).
  4. Make appropriate wiring connections inside RV.
    information Wiring connections to awning (through outside RV wall) will be made later. See instructions included with your LED light switch for additional wiring instructions.

INSTALL AWNING


Failure to obey the following warnings could result in death or serious injury:

  • IMPACT OR CRUSH HAZARD. This product should be installed in a controlled environment (inside). Do NOT install product during windy conditions, or when wind is expected. Otherwise, product could move unpredictably, become unstable, and could detach, bend, or collapse.
  • FIRE OR ELECTRICAL SHOCK HAZARD. Make sure there are no obstacles (wires, pipes, etc.) inside the RV's roof, floor or walls. Shut OFF gas supply, disconnect 120 Vac power from RV, and disconnect positive (+) 12 Vdc terminal from supply battery BEFORE drilling or cutting into RV. Failure to obey these warnings could result in death or serious injury.

NOTICE
Failure to obey the following notices could damage product or property:

  • ALWAYS use sealant on (clean) parts and surfaces where fasteners enter the RV's walls, roof or floor. Otherwise, water leakage could occur.
  • Install back channels on a flat surface, level, and keep parallel with each other to ensure correct function and appearance.

Insert Awning Fabric Into Awning Rail


IMPACT OR CRUSH HAZARD.
Do NOT remove LED rail from awning fabric (if equipped). Otherwise, awning fabric could separate from awning rail (on RV) and cause awning to extend quickly or detach, bend, or collapse. Failure to obey this warning could result in death or serious injury.

information If LED light strip is NOT desired, standard fabric MUST be used. Otherwise, you may remove LED light strip from LED rail, and leave empty LED rail on fabric rope.

  1. NOTICE Do NOT unfurl more than 1 revolution of fabric, as this could cause issues with the awning closing and opening correctly. Unfurl awning fabric 1 revolution before inserting fabric (with awning roller cover, if equipped) into awning rail.
    information Unfurling 1 revolution will allow enough space between RV wall and awning hardware to guide awning fabric into awning rail.

  2. LIFTING HAZARD.
    Use proper lifting technique and control when lifting product. Failure to obey this caution could result in injury.
    NOTICE Keep both arm assemblies parallel to each other to avoid twisting. With one person grasping each arm assembly, carefully lift entire awning assembly upright. Then carry awning to prepared (flared) awning rail end. See (FIG. 12).
    Insert Awning Fabric Into Awning Rail Fig. 12
  3. While one person guides awning fabric (with awning roller cover, if equipped) into awning rail, carefully move (carry) awning hardware assembly to desired location. See (FIG. 12).
    information A stepladder may be necessary to reach awning rail. At least two other people are required to hold and control hardware until top mounting brackets and back channels are correctly installed.

Attach Top Mounting Brackets

  1. When awning is in predetermined location, place top mounting brackets (with arm assembly) directly under and parallel to awning rail. See (FIG. 1) & (FIG. 13).
    information To determine correct awning location, see subsection, "D. Determine Awning Location". The motorized arm assembly is ALWAYS installed at the RH side of awning. Some awning rails have a wide drip channel to catch water as it runs off RV roof. If awning rail is too wide, it may be necessary to lower the position of top mounting brackets to avoid interference with FRTA.
    Attach Top Mounting Brackets Fig. 13
  2. While holding arm assemblies securely in place, mark top mounting hole locations (LH and RH top mounting bracket slots). See (FIG. 13).
  3. Wiring hole for motorized arm assembly. See (FIG. 1).
    information The motorized arm assembly is ALWAYS installed at the RH side of awning. Wiring harness location is determined by awning model. The back channel will either have a notch at top, or a hole near bottom for wiring to pass through RV wall.
    1. If wiring will pass through RV wall at BOTTOM of back channel, skip to step (4).
    2. If wiring will pass through RV wall at TOP of back channel, mark wiring hole (notch) location.
  4. Move arm assemblies out of the way.
  5. Drill 3/16' diameter holes through marked mounting hole locations and into solid structure of RV.
    information Drill 7/32' diameter holes if drilling into steel.
  6. Drill (1) 5/8' diameter hole at marked TOP wiring hole location and through outside wall of RV.
    information Skip this step if wiring will pass through RV wall at BOTTOM of RH back channel.
  7. With arm assembly completely closed, replace top mounting brackets against wall and align its mounting holes to the pre-drilled holes in RV.
  8. NOTICE Control arm assemblies while installing brackets. When weight of FRTA is NOT supported, downward force could cause arm assemblies to swing sideways and damage RV. Apply sealant to #14 - 10 x 1-1/2' hex head screw threads. Then place and tighten (1) screw through outside slot of top mounting bracket and into solid structure of RV. See (FIG. 14).
    information Make sure arm assemblies are completely closed before tightening outside screws. Closed arm assemblies will help in the overall alignment of awning.
    Attach Top Mounting Brackets Fig. 14
  9. IMPACT OR PINCH HAZARD.
    Arm assemblies are under tension from gas strut. Hold arm assemblies and FRTA securely BEFORE removing ties. Otherwise, arms will extend quickly and unexpectedly. Failure to obey this warning could result in death or serious injury. While holding arm assembly (front channel) and FRTA securely, carefully remove nylon ties (and tape if applicable) around front and back channels. Then allow front channel to open slowly until awning fabric is taut.
    information Slack from unfurled fabric will allow awning to open approximately 12' - 18'.
  10. Apply sealant to #14 - 10 x 1-1/2' hex head screw threads. Then place and tighten (1) screw through inside slot of top mounting bracket and into solid structure of RV. See (FIG. 15).
    Attach Top Mounting Brackets Fig. 15
  11. Repeat steps (3) through (10) for opposite side for track and accessory wiring.

Attach Back Channels

  1. Remove wiring cover from RH back channel (if applicable). Save for reinstallation later.
  2. Square back channel to RV and FRTA. Then mark bottom mounting hole locations (LH and RH back channels). See (FIG. 1) & (FIG. 16).
    information Measuring from a door or window frame is acceptable.
    Attach Back Channels Fig. 16
  3. Wiring hole for motorized arm assembly. See (FIG. 1).
    information The motorized arm assembly is ALWAYS installed at the RH side of awning. Wiring harness location is determined by awning model. The back channel will either have a notch at top, or a hole near bottom for wiring to pass through RV wall.
    1. If wiring will pass through RV wall at TOP of back channel, skip to step (4).
    2. If wiring will pass through RV wall at BOTTOM of back channel, mark wiring hole location.
  4. Carefully swing arm assembly aside (out of the way), to expose marked hole locations. See (FIG. 17).
    information If arm is too stiff to swing aside, loosen screw on inside slot of top mounting bracket.
    Attach Back Channels Fig. 17
  5. Drill 3/16' diameter holes through marked mounting hole locations and into solid structure of RV.
    information Drill 7/32' diameter holes if drilling into steel.
  6. Drill (1) 5/8' diameter hole at marked BOTTOM wiring hole location and through outside wall of RV.
    information Skip this step if attaching LH back channel, or if wiring will pass through RV wall at TOP of RH back channel.
  7. Swing back channel back in place, and align its mounting holes to the pre-drilled holes in RV.
    information Retighten screw on inside slot of top mounting bracket (if loosened earlier to swing arm assembly aside).
  8. Apply sealant to 3/16' x 1' oscar rivets (customer supplied). Then place rivets through bottom (2) mounting holes of back channel and secure to solid structure of RV. See (FIG. 18).
    information Structural backing (with skin) MUST be 3/8' to 1/2' thick to accommodate oscar rivets. Alternatively, structural screws (installer supplied) may be used to secure back channel if RV has structural backing that will support at least 100 lb force per screw.
    Attach Back Channels Fig. 18
  9. Repeat steps (1) through (8) for opposite side.
  10. Apply sealant to #14 - 10 x 1-1/2' hex head screw threads. Then place and tighten screws through remaining slots of both top mounting brackets and into solid structure of RV. See (FIG. 14) & (FIG. 15).

Electrical Connections To Awning

NOTICE
Failure to obey the following notices could damage product or property:

  • Make sure the positive (+) 12 Vdc terminal is disconnected from supply battery. Otherwise, damage to unit could occur.
  • ALWAYS seal wiring against weather and moisture where wiring enters the RV's walls, roof, or floor. Otherwise, water leakage could occur.
  • Do NOT pinch wiring or allow wiring to rub against sharp edges. If wiring is damaged, it MUST be replaced by a qualified service technician.

Use a grommet (installer supplied) when routing wiring through RV wall.

information If grommet is NOT used, use heat-shrink tubing where wiring will pass through RV wall.

  1. MOTOR AND SWITCH CONNECTIONS:
    1. Pull wiring through wiring hole (and grommet), and connect to appropriate wiring inside RV.
      information If grommet is NOT used, make sure sealant will also provide effective and permanent protection against wire damage. See instructions included with your Dometic Corporation switch kit for additional wiring instructions.
    2. Connect motor wiring to the factory prewired hardware wiring (near RH end cap). See (FIG. 19).
    3. Secure any slack motor / hardware wiring inside front channel to prevent pinched or damaged wiring during awning operation.
      Electrical Connections To Awning Fig. 19
  2. POWER TRACK CONNECTIONS:
    information Power track wiring includes track and LED strip.
    1. Pull wiring through wiring hole (and grommet), and connect to appropriate wiring inside RV.
      information If grommet is NOT used, make sure sealant will also provide effective and permanent protection against wire damage. See instructions included with your Dometic Corporation switch kit for additional wiring instructions.
    2. Connect power track / LED wiring to the factory pre-wired hardware wiring (near LH end cap). See (FIG. 20).
    3. Secure any slack power track / hardware wiring inside front channel to prevent pinched or damaged wiring during awning operation.
      Electrical Connections To Awning Fig. 20
  3. LED RAIL LIGHT CONNECTIONS (IF EQUIPPED):
    information Skip this step if awning is NOT equipped with an LED light strip.
    1. Pull wiring through wiring hole (and grommet).
      information If grommet is NOT used, make sure sealant will also provide effective and permanent protection against wire damage.
    2. Connect LED switch wiring to the factory pre-wired LED light strip.
      information See instructions included with your LED switch kit (installer supplied) for additional wiring instructions.
    3. Secure wiring to prevent pinching or other damage during awning operation.
      information Allow enough slack in wiring to safely accommodate possible fabric movement.
  4. COLOR CODES FOR WIRE CONNECTIONS
    information All wire connections should be made with the power off. failure to do so could result in unexpected operation or damage to the product.
    1. RH Arm (Motor End)
      Red: 12V +
      Black: 12V - (Ground)
    2. LH Arm (For LED Awning)
      White or Dark Red: 12V +
      Black: 12 V - (Ground)
    3. LH Arm (for Power Channel Awning)
      White: 12V + (to Power Channel)
      Black: 12V + (to LED in tube)
      Green: 12V - (Ground)

Complete Back Channel Installation

  1. With power applied to awning, close awning (fully retract) to verify hardware is nesting correctly. See "Close Awning" in Operating Instructions.

  2. PINCH HAZARD.
    Maintain a horizontal distance of at least 16' between fully open awning and any permanent object. Failure to obey this caution could result in injury. Open awning (fully extend). See "Open Awning" in Operating Instructions.
  3. Verify back channel is still square to RV and FRTA. See (FIG. 16).

  4. FIRE OR ELECTRICAL SHOCK HAZARD.
    Make sure there are no obstacles (wires, pipes, etc.) inside the RV's roof, floor and walls. Shut OFF gas supply, disconnect 120 Vac power from RV, and disconnect positive (+) 12 Vdc terminal from supply battery BEFORE drilling or cutting into RV. Failure to obey these warnings could result in death or serious injury.
  5. Using (1) pair of center mounting holes as a guide, drill 3/16' diameter holes into solid structure of RV. See (FIG. 1) & (FIG. 16).
    information Wiring cover (if present) MUST be removed from RH back channel to access center mounting holes. Center mounting holes may be above or below strut. Drill 7/32' diameter holes if drilling into steel.
  6. Verify wiring (if applicable) is not caught between hardware and RV wall before tightening fasteners
  7. Apply sealant to 3/16' x 1' oscar rivets (customer supplied). Then place rivets through back channel (center mounting holes) and secure to solid structure of RV. See (FIG. 18).
    information Structural backing (with skin) MUST be 3/8' to 1/2' thick to accommodate oscar rivets. Alternatively, structural screws (installer supplied) may be used to secure back channel if RV has structural backing that will support at least 100 lb force per screw.
  8. Repeat steps (3) through (7) for opposite side.
  9. Replace wiring covers onto both back channels (if applicable).
  10. Reapply power to awning, and close awning (fully retract).

Secure Awning Fabric To Awning Rail

  1. With power applied to awning, open and close awning four or five times to allow natural self adjustment of awning fabric. See Operating Instructions.
  2. Verify alignment of awning fabric, and proper nesting of hardware.
    1. If there is misalignment, adjust arm assembly by loosening back channel and top mounting bracket screws and move back channel accordingly. (Retighten screws.)
    2. Cycle awning again to check alignment.
  3. Ensure arm assemblies are still nested correctly, then mark location of awning fabric edges on awning rail.
  4. Pull one edge of awning fabric approximately 1/4' beyond marked position. Then secure with #6 x 7/16' TEK screw through awning rail (approximately 2' from fabric edge). See (FIG. 21)
    Secure Awning Fabric To Awning Rail
  5. Pull to stretch opposite edge of awning fabric approximately 3/4'. Then secure with #6 x 7/16' TEK screw through awning rail (approximately 2' from fabric edge).

VERIFY INSTALLATION

Test Operation

With power applied to awning, operate awning according to Operating Instructions to verify all parts are functioning correctly.

Secure Awning For Travel

  1. Fully close awning. See "Close Awning" in Operating Instructions.
  2. Verify awning is secure for travel. See "Prepare Awning For Travel" in Operating Instructions.

Keep Literature

Instructions contain valuable information for product use and consumer safety.

warning Keep BOTH the Installation and OperatInstall Awning

USA
SERVICE OFFICE
Dometic Corporation
1120 North Main Street
Elkhart, IN 46514

SERVICE CENTER & DEALER LOCATIONS Please Visit: www.eDometic.com

REVISION E
Form No. 3316039.000 1/18
(French 3316040.000_E)
©2018 Dometic Corporation
LaGrange, IN 46761

Brand

Videos

Dometic 9100 - How To Operate Video

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Dometic 9100 Power Awning Manual

Advertisement

Need help?

Need help?

Do you have a question about the 9100 and is the answer not in the manual?

Questions and answers

Table of Contents
