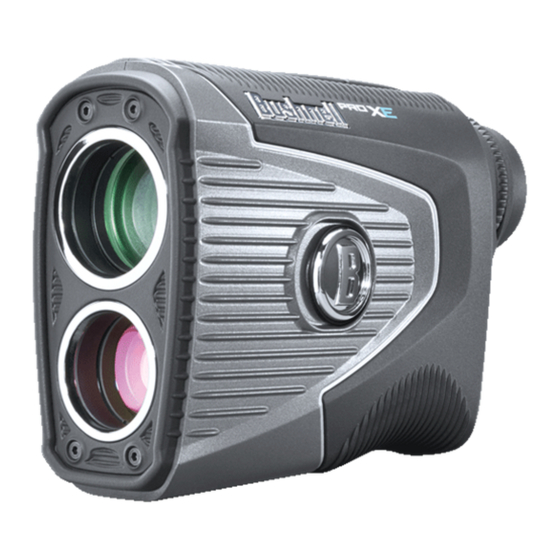

Bushnell GOLF Pro XE Laser Rangefinder Manual

As with any laser device, it is not recommended to directly view the emissions for long periods of time with magnified lenses.

INTRODUCTION

Your Bushnell^® Pro XE is an advanced premium laser rangefinder comprised of digital technology and turbo processors allowing range readings from 5–1300 yards / 5–1189 meters. Measuring 1.5 x 4 x 3 inches, the 8-ounce Pro XE delivers extremely fast acquisition and +/- 1 yard accuracy.

Tour-trusted compensated distances have been taken to the next level with "Elements." Temperature and pressure have been added to Bushnell's patented Slope technology to give golfers the most precise compensated distances ever.

The Pro XE features PinSeeker™ technology with JOLT, allowing the golfer to easily and quickly "zero" in on the flag without acquiring background targets, and superb optical quality. JOLT has been advanced with the all new "Visual JOLT." A red ring now flashes as JOLT vibrates to give the golfer even greater feedback and confidence to know you have locked onto the flag. Also new to the Pro XE is Bushnell's exclusive BITE magnetic mount that allows you to easily mount the Pro XE right on the cart bar.

Parts Guide

1. BITE Magnet (see inset photo)
2. Mode Button
3. Power/Fire Button
4. Eyepiece Diopter Dial
5. Battery Compartment
6. Slope Switch

HOW OUR DIGITAL TECHNOLOGY WORKS

The Pro XE emits invisible, eye safe, infrared energy pulses. The Pro XE Advanced Digital microprocessor and ASIC chip (Application-Specific Integrated Circuit) results in instantaneous and accurate readings every time. Sophisticated digital technology instantaneously calculates distances by measuring the time it takes for each pulse to travel from the rangefinder, to the target, and back.

RANGING ACCURACY

The ranging accuracy of the Pro XE is plus or minus one yard / meter under most circumstances. The maximum range of the instrument depends on the reflectivity of the target. The maximum distance for most objects is 1000 yards / 914 meters while for highly reflective objects the maximum is 1300 yards / 1189 meters.

Note: You will get both longer and shorter maximum distances depending on the reflective properties of the particular target and the environmental conditions at the time the distance of an object is being measured. The color, surface finish, size and shape of the target all affect reflectivity and range. The greater the reflectivity of the target, the longer the range. A white or silver object is highly reflective, for example, and allows longer ranges than the color black, which is the least reflective color. A shiny or glossy finish provides more range than a dull one. A small target is more difficult to range than a larger target. The angle to the target also has an effect. Shooting to a target at a 90 degree angle (where the target surface is perpendicular to the flight path of the emitted energy pulses) provides good range while a steep angle on the other hand, provides limited ranging. In addition, lighting conditions (e.g. the amount of sunlight) will affect the ranging capabilities of the unit. The less light (e.g. overcast skies) the farther the unit's maximum range will be. Conversely, very sunny days will decrease the unit's maximum range.

ACTIVATING/REPLACING THE BATTERY

Remove the Posi-Thread™ battery cover by lifting the battery cover tab and then rotating the cover counter clockwise until it is loose. Lift off the cover and set it aside.

ACTIVATING THE INSTALLED BATTERY: A CR₂ battery is pre-installed in your new Pro XE. Before using the rangefinder, remove the battery cover as described above. Remove the red plastic protective disc (see photo, right) from the top of the battery, then replace the battery cover.

REPLACING A LOW BATTERY: Insert a new CR₂ 3-volt lithium battery into the compartment negative (flat) end first (positive end facing out towards the battery cover), then replace the Posi-Thread™ battery cover.

Note: It is recommended that the battery be replaced at least once every 6 months.

BASIC OPERATION

While looking through the Pro XE, depress the Power/Fire button once to activate the display. If the display icons and numbers are blurry, rotate the eyepiece in either direction until they are in focus (see "Adjusting the Eyepiece" below). Place the aiming circle (located in the center of the display) over a target at least 5 yards away, depress and hold the Power/Fire button down until the range reading is displayed near the bottom of the in-view display. Crosshairs surrounding the aiming circle indicate that the laser is being transmitted. Once a range has been acquired, you can release the Power/Fire button. The crosshairs surrounding the aiming circle will disappear once the Power/Fire button has been released (i.e. the laser is no longer being transmitted).

Note: Once activated, the display will remain active and display the last distance measurement for 10 seconds. You can depress the Power/Fire button again at any time to distance to a new target. The maximum time the laser is transmitted (fired) is 5 seconds. To re-fire, press the button down again.

ADJUSTING THE EYEPIECE

The Pro XE is equipped with an adjustable eyepiece (+/- 3.5 Diopter Adjustment) that allows you to focus the display indications/icons relative to the viewed image. Simply rotate the eyepiece until the display is in focus.

SLOPE-SWITCH TECHNOLOGY

Slope-Switch Technology lets the golfer easily turn Bushnell's patented Slope function on and off. This allows the golfer to conveniently utilize Slope to get compensated distances around the course when they want it and have a USGA conforming device that is legal for tournament play when they need it.

DISPLAY INDICATORS

Your Pro XE display incorporates the following illuminated indicators (refer to display image at right):

1. Aiming Circle (surrounding crosshairs indicate laser transmission)
2. Elements Mode
3. Battery Level
4. "Play As" Distance (based on Slope/Elements)
5. Slope (% grade)
6. Line of Sight Distance
7. Visual JOLT Indicator Ring

BATTERY LIFE INDICATOR

Battery Indicator shows remaining power level:

• Full charge
• 2/3 battery life remaining
• 1/3 battery Life remaining
• Battery Indicator Blinks - Battery needs to be replaced and unit will not be operable.

ACTIVE LASER

Crosshairs surrounding the aiming circle indicate that the laser is being transmitted. Once a range has been acquired, you can release the Power/Fire button. The crosshairs surrounding the circle will disappear once the Power/Fire button has been released (i.e. the laser is no longer being transmitted).

PINSEEKER™ WITH VISUAL JOLT^®

Ever have trouble getting distance to the flag? This advanced mode allows easy acquisition of the flag without inadvertently getting distances to background targets (i.e. trees) that have stronger signal strength.

For ease of use, the device will always be in PinSeeker™ Mode.

To use, align the aiming circle reticle onto the flag that you want distance to. Next, press and hold the Power/Fire button and move the laser slowly across an area until the aiming circle at the center of the display is located over the flag or desired object. If the laser beam recognized more than one object (for example, the flag and a group of trees behind it), only the distance to the closest object (the flag) will be displayed. The JOLT Technology provides two short bursts of vibration to confirm that the distance displayed is to the flag, and the red ring (Visual JOLT Indicator) around the outer edge of the display is activated, confirming the laser has ranged the correct target via Pinseeker. There may be times when the laser beam only sees one object in its path. In this case, the distance will be displayed, but because more than one object was not acquired, no JOLT indication will be provided.

Tip: While pressing the Power/Fire button, you can move the device slowly from object to object and intentionally force the laser to hit multiple objects to ensure that you are only displaying the closest of the objects recognized by the laser. Once the device has shut off, the unit will always default back to the last mode used.

SLOPE SWITCH

When slope is enabled by sliding the Slope Switch on the side of the unit to the left so the red Slope indicator is visible (see photo, right), Bushnell's patented Slope Technology is displayed. The Slope +/- mode will automatically compute an angle compensated range based upon distance and slope determined by the laser rangefinder and built-in inclinometer. This data is then combined with internal algorithmic formulas dealing with average club use and ball trajectories. The angle compensated range provides direction on how to play the shot (i.e. add distance if an incline, subtract distance if a decline). Slide the Slope Switch right, and your Pro XE now conforms to USGA Rule 14-3, with the slope compensated ranging feature removed.

ELEMENTS

With Slope mode selected (Slope Switch to left with red indicator exposed), the display will show the percent grade of tilt/ incline to the hole or obstacle (with the flag or other target in the aiming circle) and "Play As" compensated distance below the normal "Line of Sight" distance when the laser is fired. You also have the option of activating the Elements feature by pressing the Mode button (toggles between Elements on/off. ) "ON" is indicated by the Elements Mode icon ( ) in the display.

When Elements Mode is on, the Slope compensated distance also factors in the air pressure and temperature at your location on the golf course. For example, the ball will travel farther through thinner air at higher altitudes (assuming it is hit with the same force). Note: once the device has shut off, the unit will always default back to the last mode used.

HOW TO USE SLOPE +/-™

Once in this mode, you will see a " - - - " in the field of view informing you that you are in the Slope +/- Mode. Press the Power/Fire button to obtain distance to the flag or other objects. Once the range is displayed, release the Power/Fire button. Once you have released the Power/Fire button, a grade percentage and compensated range will be displayed beneath the standard distance.

For example, if the true distance is 180 yards, but with a slope of +4 percent, the slope compensated ("play-as") range is 182 yards. The display would show this (below):

THE ADVANTAGE OF SLOPE +/-™

The distance to the black flag in the drawing (see next page) is 160 yards. It is also 160 yards to the red flag, although it is on a slope with a 6% grade (uphill incline). However, if you were to play this hole as 160 yards, the ball (X) would fall short of the hole/flag because you did not take slope into account. Due to the slope (plus pressure and temperature with Elements Mode on), it should be played as a 171 yard shot. This will be displayed as your "play as" distance below the line of sight distance.

TIP: While pressing the Power/Fire button, you can move the device slowly from object to object and intentionally force the laser to hit multiple objects to ensure that you are only displaying the nearest of the objects recognized by the laser.

MODE BUTTON - SETTINGS MENU

Press and hold the Mode button to enter the Settings menu, which allows you to set your preferred display brightness level and distance units (yards/meters). Press/ release the Mode button to cycle through four display brightness settings ("Bright 1" to "Bright 4"). When your preferred setting is displayed, press the Power/Fire button.

Next, toggle between distance units Yards or Meters) by pressing the Mode button. This also activates the JOLT indicators (vibration and visual ring in display), allowing you to preview/demo the effect of JOLT Technology without requiring you to fire the laser at a target. Press the Power/Fire button to confirm your units preference and exit the Settings menu.

BITE MAGNETIC MOUNT

The Pro XE features a powerful BITE magnet incorporated into the right side of its housing, which allows the device to be securely attached to a golf cart bar or frame.

Bite feature included with device contains a Neodymium magnet. Magnets could affect the functioning of pacemakers and implanted heart defibrillators. If you use these devices, keep sufficient distance from magnet. Warn others who wear these devices from getting too close to magnets.

• Magnet may lose part of its adhesive force permanently if exposed to temperatures above 175°F (80°C).
• Magnets produce far-reaching, strong magnetic field. They could damage TVs and laptops, computer hard drives, credit and ATM cards, data storage media, mechanical watches, hearing aids and speakers. Keep unit away from devices and objects that could be damaged by strong magnetic fields.

CLEANING AND GENERAL CARE

The lenses of your Bushnell Pro XE laser rangefinder are fully multi-coated for highest light transmission. As with any multicoated optics, special care must be taken in cleaning the lenses. Follow these tips for proper lens cleaning:

• Blow away any dust or debris on the lens (or use a soft lens brush).
• To remove dirt or finger prints, clean with the supplied micro-fiber cloth rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. The included washable microfiber cleaning cloth is ideal for the routine cleaning of your optics. Simply breathe lightly on the lens to provide a slight amount of moisture, then gently rub the lens with the microfiber cloth.
• For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth – never directly on the lens.

The rangefinder is manufactured and tested to withstand water exposure up to IPX7 standards. It is waterproof, submersible to a depth of 1 meter for up to 30 minutes.

TROUBLESHOOTING

Never disassemble your laser rangefinder. Irreparable damage can result from unauthorized service attempts, which also void the warranty.

If unit does not turn on, display does not illuminate:

• Depress Power/Fire button.
• Check and if necessary, replace battery. If unit does not respond to button presses, replace the battery with a good quality CR2 3-volt Lithium battery.

If unit powers down (display goes blank when attempting to power the laser):

• The battery is either weak or low quality. Replace the battery with a new 3 -volt lithium battery (CR2).

If target range cannot be obtained:

• Make sure the display is illuminated.
• Make sure that the Power/Fire button is being depressed.
• Make sure that nothing, such as your hand or finger, is blocking the objective lenses (lenses closest to the target) that emit and receive the laser pulses.
• Make sure unit is held steady while depressing Power/Fire button.

NOTE: The last range reading does not need to be cleared before ranging another target. Simply aim at the new target using the display reticle, depress the Power/Fire button and hold until new range reading is displayed.

Technical Specifications

This product uses a Lithium based battery. Lithium batteries can overheat and cause damage if physically abused. Do not use batteries that are damaged or show signs of physical wear.

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FDA SAFETY

Class 1 laser product in accordance with IEC 60825-1:2007.

Complies with 21 CFR 1040.10 and 1040.11 for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

Caution: There are no user controls, adjustments or procedures. Performance of procedures other than those specified herein may result in access to invisible laser light.

Industry Canada Statement:

This device complies with ISED's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement:

This device complies with the Industry Canada portable RF exposure limit set forth for an uncontrolled environment and is safe for the intended operation as described in this manual. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user's body or if the device is set to a lower output power if such function is available.

http://patents.vistaoutdoor.com

Disposal of Electric and Electronic Equipment (Applicable in the EU and other European countries with separate collection systems)

This equipment contains electric and/or electronic parts and must therefore not be disposed of as normal household waste. Instead, it should be disposed at the respective collection points for recycling provided by the communities. For you, this is free of charge.

If the equipment contains exchangeable (rechargeable) batteries, these too must be removed before and, if necessary, in turn be disposed of according to the relevant regulations (see also the respective comments in this unit's instructions).

Further information about the subject is available at your community administration, your local waste collection company, or in the store where you purchased this equipment.

TWO-YEAR LIMITED WARRANTY

Your Bushnell^® golf laser rangefinder is warranted to be free of defects in materials and workmanship for two years after the date of purchase. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. This warranty does not cover damages caused by misuse, improper handling, installation, or maintenance provided by someone other than a Bushnell® Authorized Service Department.

Any return made under this warranty must be accompanied by the items listed below:

1. A check/money order in the amount of $10.00 to cover the cost of postage and handling
2. Name, address and daytime phone # for product return.
3. An explanation of the defect.
4. Copy of your dated proof of purchase.

Do not send in accessories (batteries, case, strap, etc.), only the product for repair.

Product should be well packed in a sturdy outside shipping carton to prevent damage in transit, and shipped to the address listed below:

IN U.S.A. Send To:

Bushnell^® Outdoor Products
Attn.: Repairs
9200 Cody
Overland Park, Kansas 66214

IN CANADA Send To:

Bushnell^® Outdoor Products
Attn.: Repairs
140 Great Gulf Drive, Unit B
Vaughan, Ontario L4K 5W1

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information.

This warranty gives you specific legal rights.

You may have other rights which vary from country to country.

©2019 Bushnell Outdoor Products
Bushnell, ™, ®, denote trademarks of Bushnell Outdoor Products
www.bushnell.com
9200 Cody, Overland Park, KS 66214
