- Page 1 2.2MP HD-SDI Miniature Bullet Camera with 3.6mm Lens HXMB22MPV2 User Manual Please read these instructions carefully before operating the unit and keep for further reference.
- Page 2 Intro Section Please read this instruction carefully before operating the product and keep it for further reference. All examples and pictures used here are for reference only. The contents of this manual are subject to change without notice. CAUTION: • A regulated DC12V 300mA power supply is recommended for use with this camera for the best picture and the most stable operation.
-
Page 3: Table Of Contents
Contents 1.0 Introduction ......................4 1.1 Product Features ...................4 1.2 Product Dimensions ..................4 1.3 Components ....................4 1.4 Mounting Position ..................4 1.5 Specification ....................5 2.0 Installation ......................6 2.1 Monitor Connection ..................6 2.2 RS-485 Type ....................6 3.0 OSD Manual ......................7 3.1 Function Description ..................8 4.0 RS-485 ........................11... -
Page 4: Introduction

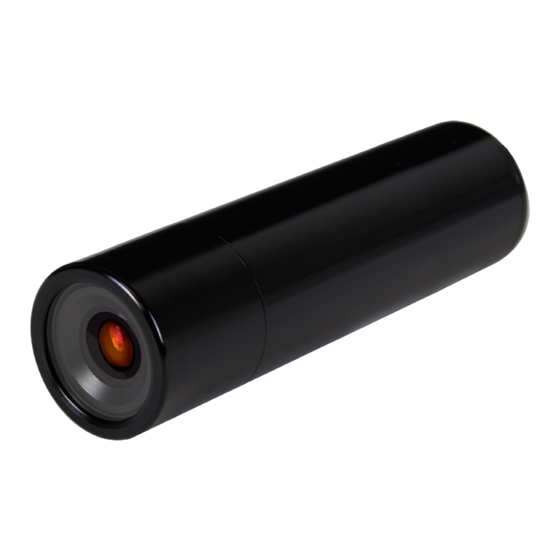

1.0 Introduction The Genie HXMB22MPV2 is a 2.2MP HD-SDI miniature bullet camera with 3.6mm lens. 1.1 Product Features • 1/2.8” Progressive Scan CMOS • 1080p (1920x1080) @30 (25) fps • HD-SDI (100m @ RG59) / EX-SDI 1.0 (300m @ RG59) / CVBS •... -
Page 5: Specification
User Manual 2.2MP HD-SDI Miniature Bullet Camera with 3.6mm Lens 1.5 Specification Image Sensor 1/2.8” Sony Exmor R Progressive Scan CMOS HD-SDI/EX-SDI 1.0: 1080p @ 30fps (25fps) / 720p @ 60fps Resolution (50fps) / 720p @ 30fps (25fps) TV out: CVBS NTSC/PAL Electronic Shutter AUTO / FLICKER / MANUAL /(1/30(25)~1/30,000) Camera... -
Page 6: Installation
2.0 Installation 2.1 Monitor Connection HD SDI IN Monitor BNC Female (HD-SDI Jack) DC12V Power Supply DC12V IN (Black) BNC Female (2'nd Video) Camera RCA Jack (OSD Key Jack) 5Key Remote Control (Option) * Remote Control - Circuit Diagram (Option) Function SW2: Up OSD Menu up. -
Page 7: Osd Manual
3.0 OSD Manual... -
Page 8: Function Description
User Manual 2.2MP HD-SDI Miniature Bullet Camera with 3.6mm Lens 3.1 Function Description 0. SETUP - EXPOSURE: Go sub menu for camera exposure control. - WHITE BALANCE: Go sub menu for camera white balance control. - HLC/BLC: Go sub menu for camera HLC or BLC action. - DNR: Control noise reduction setting. - Page 9 User Manual 2.2MP HD-SDI Miniature Bullet Camera with 3.6mm Lens 3. HLC/BLC Setting HLC/BLC function. - LEVEL : adjust HLC/BLC Level. - BLC POSITION: Act in Backlight compensation mode. > H-POS: Select BLC control zone vertical position. > V-POS: Select BLC control zone horizontal position. >...
- Page 10 User Manual 2.2MP HD-SDI Miniature Bullet Camera with 3.6mm Lens - MOTION > DET WIDOW: Setting Motion window. > SENSITIVITY: Select the motion detect sensitivity level. > QUICK ZOOM: Setting Motion Quick zoom function. > MOTION OSD: Select the display Motion OSD. >...
-
Page 11: Rs-485
4.0 RS-485... - Page 12 Sales +44(0)1707 330541 Enquiries sales@genieproducts.co.uk Website www.genieproducts.co.uk...
