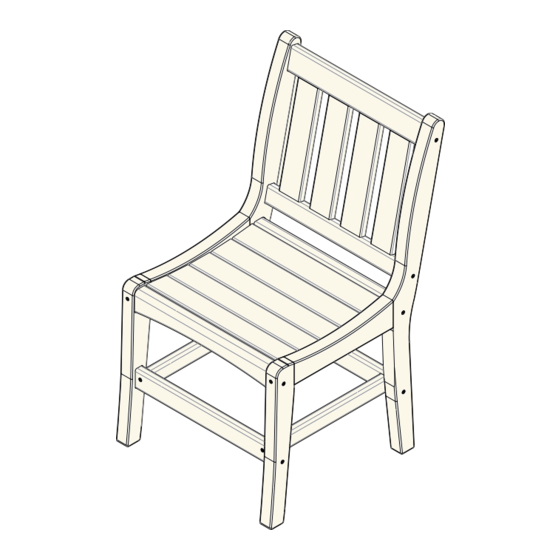

VERTICAL DINING CHAIR
& VERTICAL DINING CHAIR W/ARMS
I N ST R U C T I O N S
CHAIR PARTS
• LEFT LEG ASSEMBLY
• RIGHT LEG ASSEMBLY
• BACK ASSEMBLY
• SEAT ASSEMBLY
• LOWER FRAME
SUGGESTED TOOLS
• RUBBER MALLET
• PHILLIPS HEAD SCREWDRIVER
• DRILL
HARDWARE PACK
Hardware Pack Weight: 3.23 oz.
(1) SQUARE-HEAD BIT
(12) 3" SCREWS
Advertisement
Table of Contents
Related Manuals for Hatteras Hammocks VDC
Summary of Contents for Hatteras Hammocks VDC
- Page 1 VERTICAL DINING CHAIR & VERTICAL DINING CHAIR W/ARMS I N ST R U C T I O N S CHAIR PARTS SUGGESTED TOOLS • LEFT LEG ASSEMBLY • RUBBER MALLET • RIGHT LEG ASSEMBLY • PHILLIPS HEAD SCREWDRIVER • BACK ASSEMBLY •...
- Page 2 ASSEMBLY STEP 1. Use (6) 3” screws to attach the Seat Assembly, Lower STEP 2. Use (6) 3” screws to attach the Right Leg Assembly Frame, and the Back Assembly to the Left Leg Assembly. to the Seat Assembly, Lower Frame, and Back Assembly. NOTE: Make sure Lower Frame screws are towards the seat to prevent screws from intersecting.
