46" & 72" BAR & COUNTER HEIGHT TABLE
INSTRUCTIONS

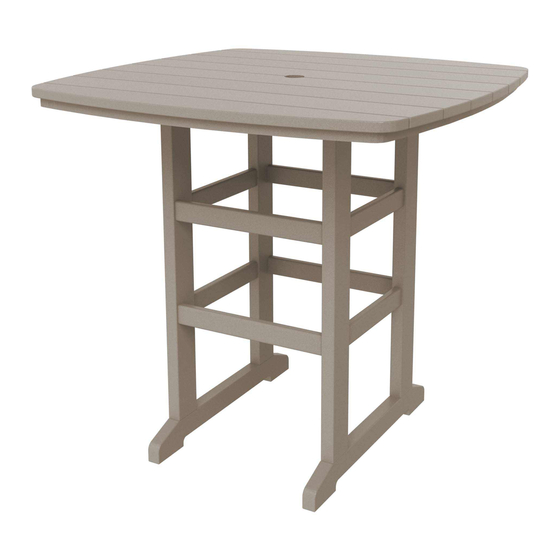

46" TABLE PICTURED
ASSEMBLY
FASCIA PLATE
STAND PARTS
• (1) TABLETOP
• (2) LEG ASSEMBLIES
• (2) FASCIA PLATES
• (4) SPREADERS
SUGGESTED TOOLS
• ADJUSTABLE WRENCH (not included)
• STANDARD SCREW DRIVER (not included)
• DRILL (not included)
• ALLEN WRENCH (included)
• SQUARE HEAD DRILL BIT (included)
HARDWARE PACK
Hardware Pack Weight : 7.2 oz.
(4) 2" BOLTS
(8) FLAT WASHERS
(1) SQUARE HEAD DRILL BIT
STEP 1. Insert Fascia Plates and Spreader Bars then use (16) 3" screws
to attach to leg assemblies.
3"
3"
SCREW
SCREW
SPREADER BAR
(16) 3" FLATHEAD SCREWS
(4) LOCK NUTS
(1) ALLEN WRENCH
Advertisement
Table of Contents
Related Manuals for Hatteras Hammocks bht46
Summary of Contents for Hatteras Hammocks bht46

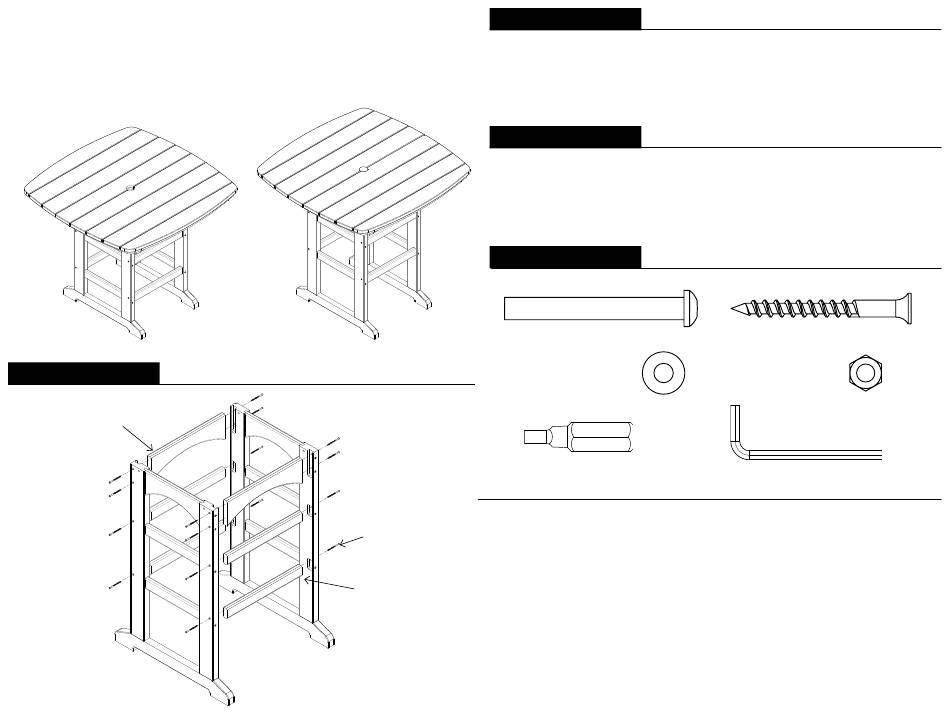

- Page 1 STAND PARTS 46” & 72” BAR & COUNTER HEIGHT TABLE • (1) TABLETOP INSTRUCTIONS • (2) LEG ASSEMBLIES • (2) FASCIA PLATES 46” TABLE PICTURED • (4) SPREADERS SUGGESTED TOOLS • ADJUSTABLE WRENCH (not included) • STANDARD SCREW DRIVER (not included) •...
- Page 2 ASSEMBLY STEP 2. Align holes in Table Legs with holes in Table Top and use (4) 2” bolts, (8) washers and (4) lock nuts to attach leg structure to table top. Make sure to use two washers per bolt, one for the bolt head and one for the locknut. Tighten all bolts. Refer to detailed image for hardware order.
