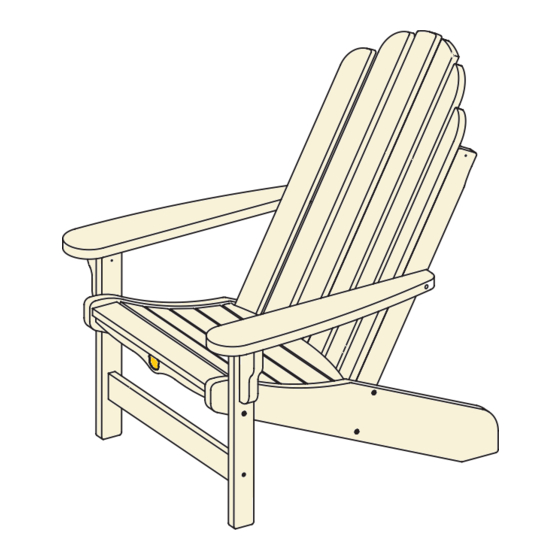

ADIRONDACK CHAIR
I N ST R U C T I O N S
Sunrise chair back different than shown.
ASSEMBLY
STEP 1. Use (4) 1.5" barrel bolts to attach chair back to chair
seat. Keep all barrel bolts loose until Step 3.
CHAIR
SEAT
CHAIR
BACK
BARREL
BARREL
BARREL
BARREL
NUT
NUT
HARDWARE PACK
Hardware Pack Weight: 5.8 oz.
CHAIR PARTS
• CHAIR BACK
• CHAIR SEAT
• LEFT CHAIR ARM
• RIGHT CHAIR ARM
• SPREADER BAR
SUGGESTED TOOLS
1.5"
1.5"
BOLT
BOLT
• RUBBER MALLET
• PHILLIPS HEAD SCREWDRIVER
• DRILL
(8) 1.5" BARREL BOLTS
(8) BARREL NUTS
(2) 2" SCREWS
(2) PEGS
(1) ALLEN WRENCH
(1) SQUARE-HEAD BIT
