Instructions specific to hazardous area
installations
(reference European ATEX Directive
94/9/EC, Annex II, 1.0.6.)
The following instructions apply to equipment covered by certificate
number Sira 05ATEX2027X for the CEL-320/IS and CEL-360/IS:
1
The equipment may be used with flammable gases and vapours
with apparatus Groups IIA, IIB and IIC and with temperature
classes T1, T2, T3 and T4.
2
The equipment is only certified for use in ambient temperatures in
the range -20oC to +40oC and should not be used outside this
range.
3
The certificate marking is detailed on drawing numbers
13-1920001A/IS-03 and 13-1920002A/IS-03.
4
Repair of this equipment shall be carried out by the manufacturer
or in accordance with the applicable code of practice.
5
The certification of this equipment relies on the following
materials used in its construction: Polybutylene terephlhalate
(PBT) and Polycarbonate (PC)
If the equipment is likely to come into contact with aggressive
substances, then it is the responsibility of the user to take
suitable precautions that prevent it from being adversely
affected, thus ensuring that the type of protection is not
compromised.
Aggressive substances e.g. solvents that may affect polymeric
materials
Suitable precautions e.g. regular checks as part of routine
inspections or establishing from the material's data sheet that it
is resistant to specific chemicals.
6
The certificate number has an 'X' suffix that indicates that the
following special condition of certification applies;
Under certain extreme circumstances, the non-metallic parts
incorporated in the enclosure of this equipment may generate an
ignition-capable level of electrostatic charge. Therefore, when it
is used for applications that specifically require group II, category
1 equipment, the equipment shall not be installed in a location
where the external conditions are conducive to the build-up of
electrostatic charge on such surfaces. Additionally, the
equipment shall only be cleaned with a damp cloth.
CEL-320/360 Getting Started - Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Casella CEL-320 Series
Summary of Contents for Casella CEL-320 Series
- Page 1 Instructions specific to hazardous area installations (reference European ATEX Directive 94/9/EC, Annex II, 1.0.6.) The following instructions apply to equipment covered by certificate number Sira 05ATEX2027X for the CEL-320/IS and CEL-360/IS: The equipment may be used with flammable gases and vapours with apparatus Groups IIA, IIB and IIC and with temperature classes T1, T2, T3 and T4.
- Page 2 Page 2 - CEL-320/360 Getting Started...
-
Page 3: Display
CEL-320/360 SERIES USERS GUIDE If you want to get on and use the instruments without any background information, skip Sections 3 - 5 and go straight to Section 6. Display Data is Being Recorded Battery Condition Under range has Measurement is Paused Occurred Frequency Weighting Overload has... -
Page 4: Table Of Contents
Contents Section ..Page Section ..Page Display ... 3 6.4 Review Stored Data ..10 Keys . -

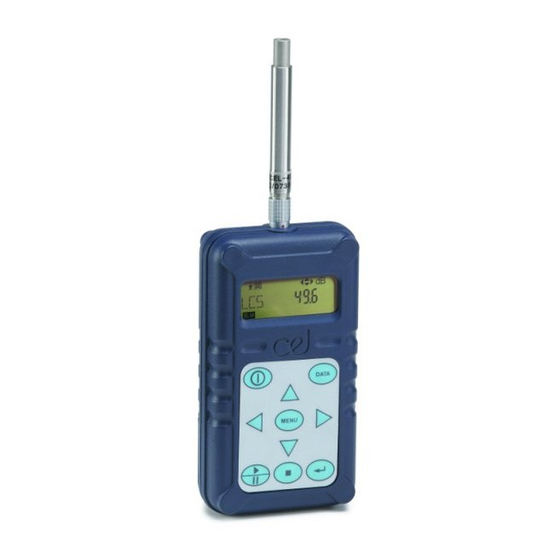

Page 5: Sound Level Meter Models
high resistance to damage. Data integrity is further protected by a dose microphone lead which is designed to resist knocks and abrasions without affecting the signal passing from microphone to instrument. Both instruments can be operated and deliver dose and SLM results without the need for other equipment, beyond an acoustic calibrator. -
Page 6: Cel-360/360S Logging Noise Dosimeters
However, all sound Table 2: Setups and Configuration Files level measurement Parameter settings that do not modify preset measurement protocols can be changed by using parameters can be set from the instrument keys. the keypad. There are three All available parameter settings can be changed overlapping measurement from a PC by means of dB10 or dB12 Software. -
Page 7: Preparation For Use
Once data saved by a CEL-360 instrument has been downloaded to a PC, the user can specify a period over which to re-calculate the projected % dose values. The software can also calculate six exceedance time percentiles with levels preset to values specified by measurement standards, plus one user specified time percentile. - Page 8 Fit the CEL-4726 Coupler Calibrator supplied with the calibrator (CEL-110/1 or 110/2 ) into the calibrator cavity, making sure it is firmly in contact with the shoulder in the cavity. (To aid removal, the coupler flange does not fit close 'O' Ring against the calibrator housing).
-
Page 9: Operation As A Dosimeter
Operation as a Dosimeter Select Dose Setup for Use Operation Press Display Shows Comments 1. Change To select SET UP. MENU Operating The first display always shows Mode the currently loaded Setup, (for example OSHA dose peatedly SET UP measurement). 2. -
Page 10: Recall Dose Data
Operation Press Display Shows Comments 3. Then REC icon indicates that the instrument is now storing dose data in the first available data store. DATA 4. Inspect data Shows where data from the DATA from Current current run is being saved (store 4) and on a CEL-360 indicates the number of DATA... -
Page 11: Print Standard Report
Operation Press Display Shows Comments 1. Enable Data With the instrument stopped, DATA Recall DATA pressing displays the Start Date & Time for the most DATA recently stored run. 2. Review Select Start Date & Time for Stored Runs required run (for example repeat 4 June 09:10:00). -
Page 12: Operation As A Sound Level Meter
Operation Press Display Shows Comments 2. Enable Data With the instrument stopped, DATA Recall display the Start Date & Time for the most recently stored run as described in Section 6.4. DATA 3. Select Stored Select Start Date & Time for Run For required run (for example repeat... -
Page 13: Selecting And Changing Options
Operation Press Display Shows Comments 3. Review The display steps through all details and parameters (see several Measurements Section 9.4), starting here with times Linear Peak (L measurement. When & icons are shown on the display, the relevant menu keys may be used to change the current measurement settings. -
Page 14: Set Time & Date
Set Time & Date Operation Press Display Shows Comments 1. Select Time Follow on from Step 3 in Option Section 8.1. OPTION 2. Enable Time Cursors are enabled and the Change hours entry blinks to show it can be edited. OPTION 3. - Page 15 Operation Press Display Shows Comments Press to enable, to select the following durations: Off, 5, 10, 15, 30 minutes, 1, 2, 4, 8, 10, 12, 24 hours, then confirm with 5. Review Rept allows the user to select Repeat up to 49 repeats of the timer setting settings.
-
Page 16: Technical Information
Technical Information Specification Dosimeter/Sound Exposure Meter Standards: IEC 61252: BS EN 61252, ANSI S1.25 - 1992 for dosimeters and sound exposure meters. Electromagnetic and electrostatic compatibility: The sound level at which this personal sound exposure meter conforms to clause 15 of this standard is 85 dB. The personal sound exposure meter was tested in Dose mode using 85 dB due to the duration of testing. - Page 17 There is no degradation in performance or loss of functionality following the application of electrostatic discharges. The approved configuration for reference orientation as viewed by the operator is with the instrument in a horizontal position facing the noise source where the receiver of the electromagnetic field replaces the noise source.
-
Page 18: Ce Compliance
Overload Indication: 140.1 dB RMS (i.e. 0.1 dB above the top of the selected range). Maximum Peak Value: 143.0 dB Peak Linear (i.e. 3.0 dB above the top of the selected range). Non-Linear Distortion: Error <±1 dB at frequencies >10 Hz. Stabilisation Time: 1 second. -
Page 19: Parameter Identities
Setup OSHA MSHA ACGIH IS085 IS090 METER SLM Threshold 2 (dB) Criterion (dB) LN%A LN%B LN%C LN%D LN%E Profile interval 1 min 1 min 1 min 1 min 1 min 1 min 1 min Profile 1 Lavg Lavg Lavg Profile 2 Profile 3 Profile 4 Synchronise... -
Page 20: Parts, Servicing & Warranty
the total Avg of a person’s workplace noise exposure averaged over a user selected (variable) period of hours and minutes. This unit is specified in the USA: OSHA standard 1910-95 published in 1983. When the period is set to 8 hours, the unit will be shown as TWA. - Page 21 To obtain repair under warranty, the instrument should be packed and returned in it’s original packing or an equivalent either to CASELLA CEL’s local agent, or in the case of U.K. domestic sales, to the CASELLA CEL Service Department at Bedford.
-
Page 22: Intrinsically Safe Models
The instruments must be calibrated in a non-hazardous area following the same instructions as for the standard models. Any repairs needed for the Intrinsically Safe models must be carried out only by an approved CASELLA CEL service centre following approved written procedures. Page 22 - CEL-320/360 Getting Started... - Page 23 CEL-320/360 Getting Started - Page 23...
- Page 24 Page 24 - CEL-320/360 Getting Started...
